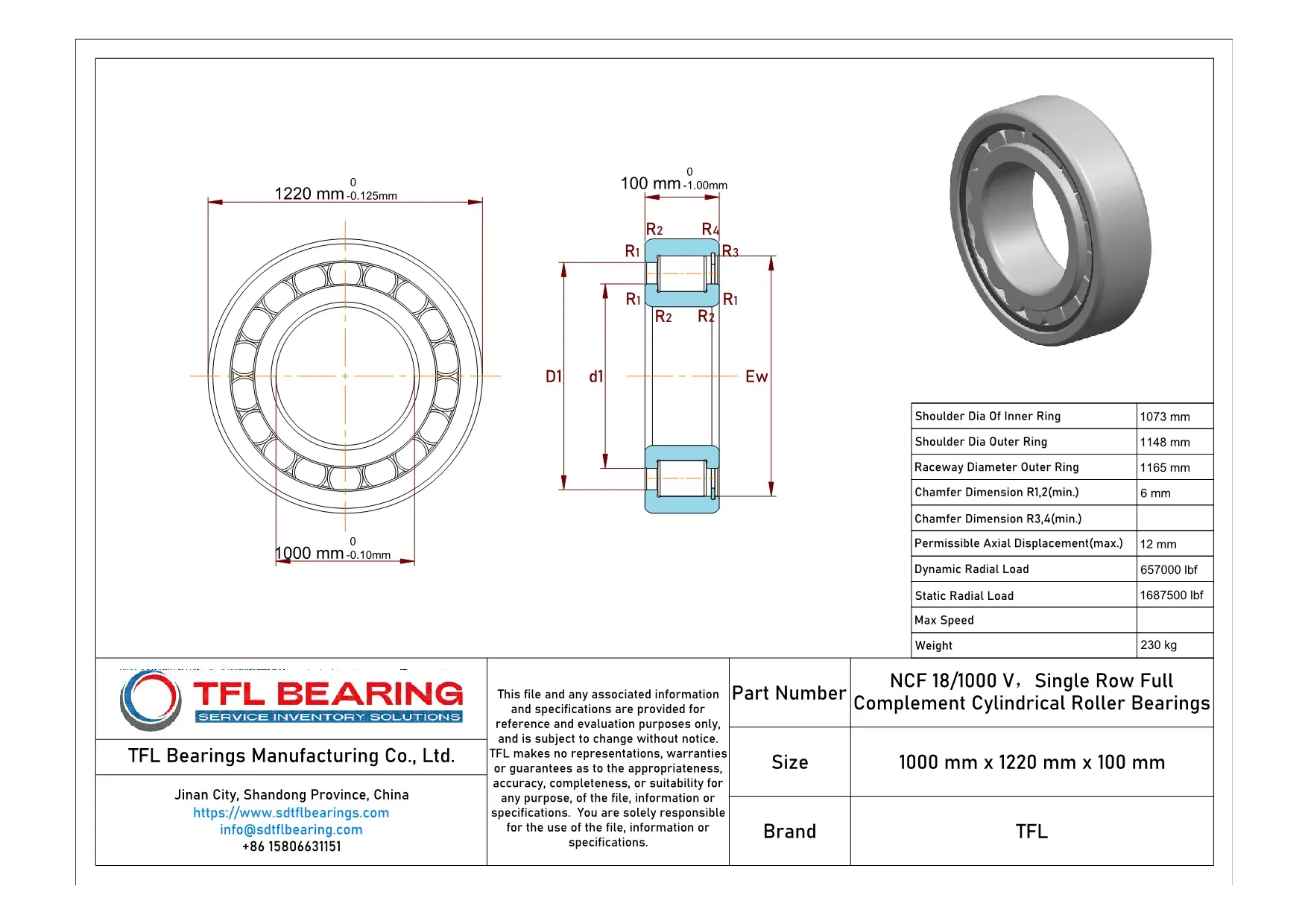

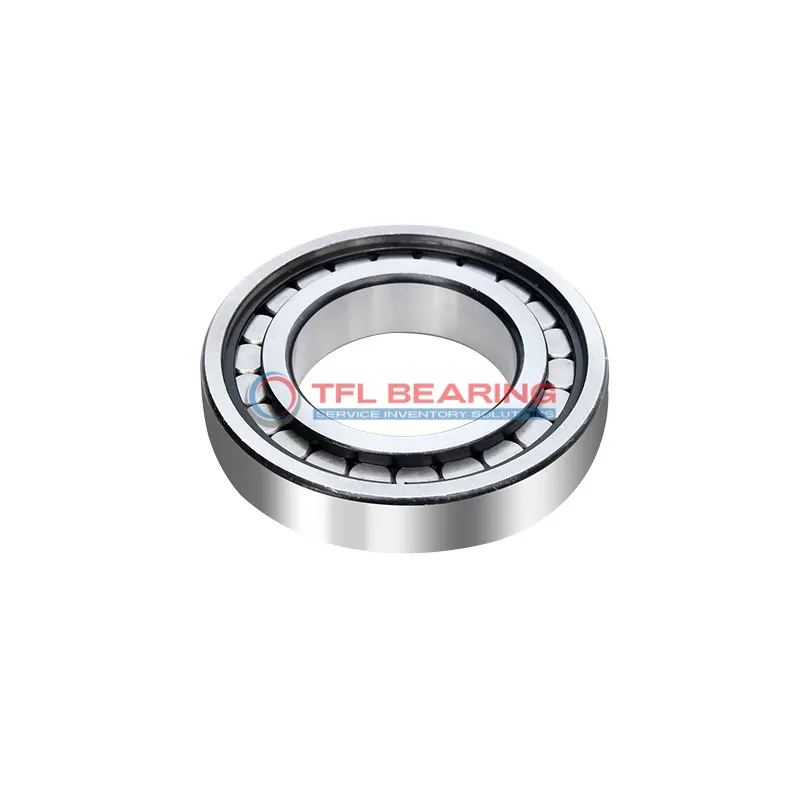

The NCF 18/1000 V is a large single-row cylindrical roller bearing with a 1000mm bore and 1220mm outer diameter, built from sturdy chrome steel. It handles heavy combined loads, with a dynamic radial load capacity of 657000 lbf.
Its full complement design means it has no cage, allowing for higher load capacity and smoother operation. The open seal type makes lubrication with grease or oil straightforward.
This bearing suits applications with significant radial and axial loads, such as heavy machinery or industrial gearboxes. It operates well in temperatures from -30°C to 110°C.
Weighing 230kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Performance Features of NCF 18/1000 V Bearing
NCF 18/1000 V Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 657,000 lbf, making it suitable for heavy-duty industrial applications.
The full complement of rollers design enhances load distribution, improving overall durability.
With a permissible axial displacement of 12 mm, it accommodates slight misalignments during operation.
NCF 18/1000 V Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring smooth performance.
The precise tolerances of NCF 18/1000 V Bearing contribute to its reliable operation in demanding conditions.
Weighing 230 kg, it is designed for stability and long-term use in large machinery.
Industrial Uses of NCF 18/1000 V Bearing
NCF 18/1000 V Bearing is commonly used in heavy industrial machinery, such as large conveyor systems and rolling mills, where its full complement design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
In wind turbine applications, NCF 18/1000 V Bearing supports the main shaft, providing reliable performance under combined loads. Its large bore size and metric dimensions make it suitable for European and Asian turbine designs.
For mining equipment, NCF 18/1000 V Bearing’s robust design withstands extreme conditions, such as in crushers and excavators. The open seal type allows for easy lubrication, extending service life in harsh operations.
Key Fields for NCF 18/1000 V Bearing
NCF 18/1000 V Bearing is ideal for paper manufacturing machinery, where its high static radial load capacity ensures smooth operation. The absence of a cage allows for maximum roller count, enhancing load distribution.
In steel production plants, NCF 18/1000 V Bearing is often found in rolling stands, where its combined load capability is crucial. The grease or oil lubrication options provide flexibility for different operating conditions.
For large pumps and compressors, NCF 18/1000 V Bearing’s precise tolerances and chrome steel rollers deliver consistent performance. Its wide temperature range makes it adaptable to various industrial settings.
