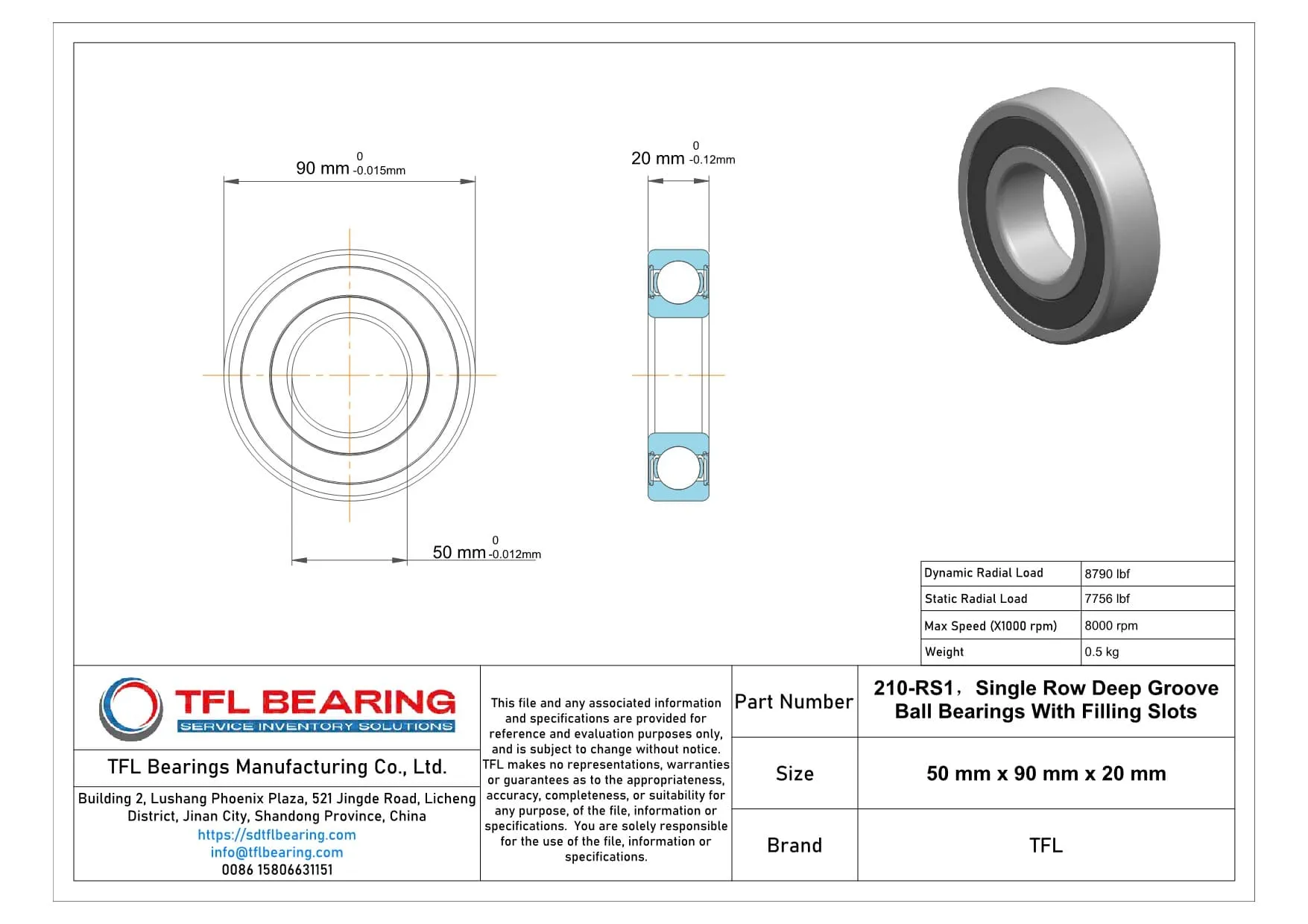

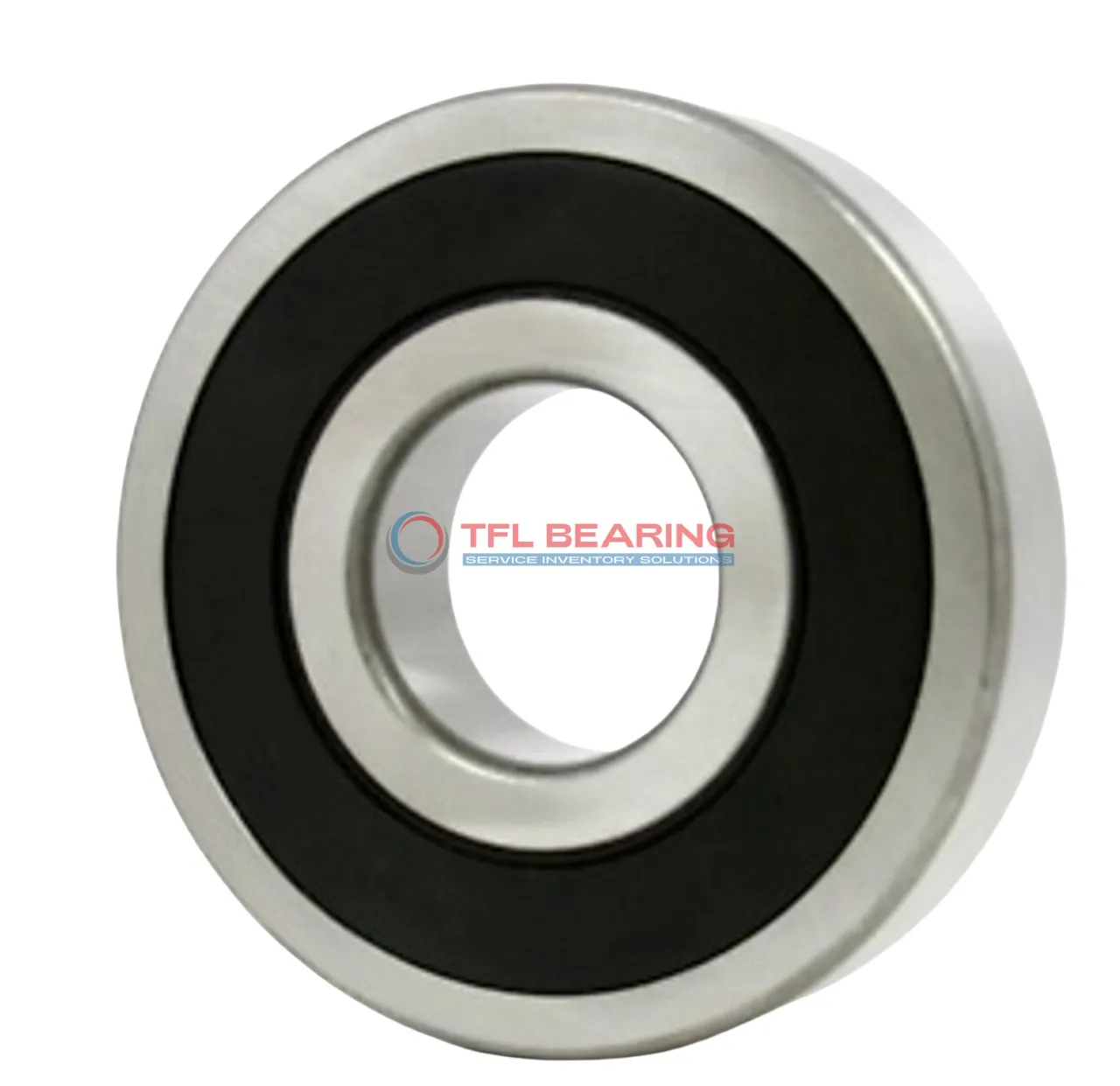

The 210-RS1 is a single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 8790 lbf and runs smoothly at speeds up to 8000 RPM.
Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The filling slots allow for easier lubrication when needed.
With a compact width of 20mm, it fits well in tight spaces. The bearing operates in temperatures from -30°C to 120°C, suitable for various environments.
Ideal for electric motors or conveyor systems where reliable radial load support is needed. It’s interchangeable with SKF bearings, offering a practical replacement option. Weighing 0.5kg, it balances durability with manageable size.
"*" indicates required fields
How Does 210-RS1 Bearing Reduce Friction?
210-RS1 Bearing features a deep groove design with filling slots, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while maintaining low friction during operation.
Its sealed design helps retain lubrication, reducing wear and extending maintenance intervals.
With a maximum speed of 8,000 rpm, it delivers reliable performance in various applications.
The ABEC 1 tolerance class ensures consistent operation, suitable for general industrial use.
210-RS1 Bearing’s robust design handles dynamic radial loads up to 8790 lbf effortlessly.
Industrial Uses of 210-RS1 Bearing
210-RS1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.
Where Is 210-RS1 Bearing Used?
You’ll find 210-RS1 Bearing in automotive applications such as alternators and wheel hubs, thanks to its reliable radial load handling. Its metric sizing makes it a versatile fit for various vehicle models.
Perfect Fit for Automation: 210-RS1 Bearing
210-RS1 Bearing works well in automated systems, including conveyor belts and robotic arms, where smooth operation is key. The sealed design reduces maintenance needs, making it ideal for high-use settings.
Medical vs Industrial: Where 210-RS1 Bearing Excels
In medical devices like centrifuges, 210-RS1 Bearing offers quiet and consistent performance. For industrial gear, it handles radial loads efficiently, ensuring long service life.
Light-Duty vs Heavy-Duty: Best Uses for 210-RS1 Bearing
210-RS1 Bearing suits light-duty applications like office printers, where precision matters. It also performs well in heavier tasks, such as agricultural machinery, due to its robust build.
