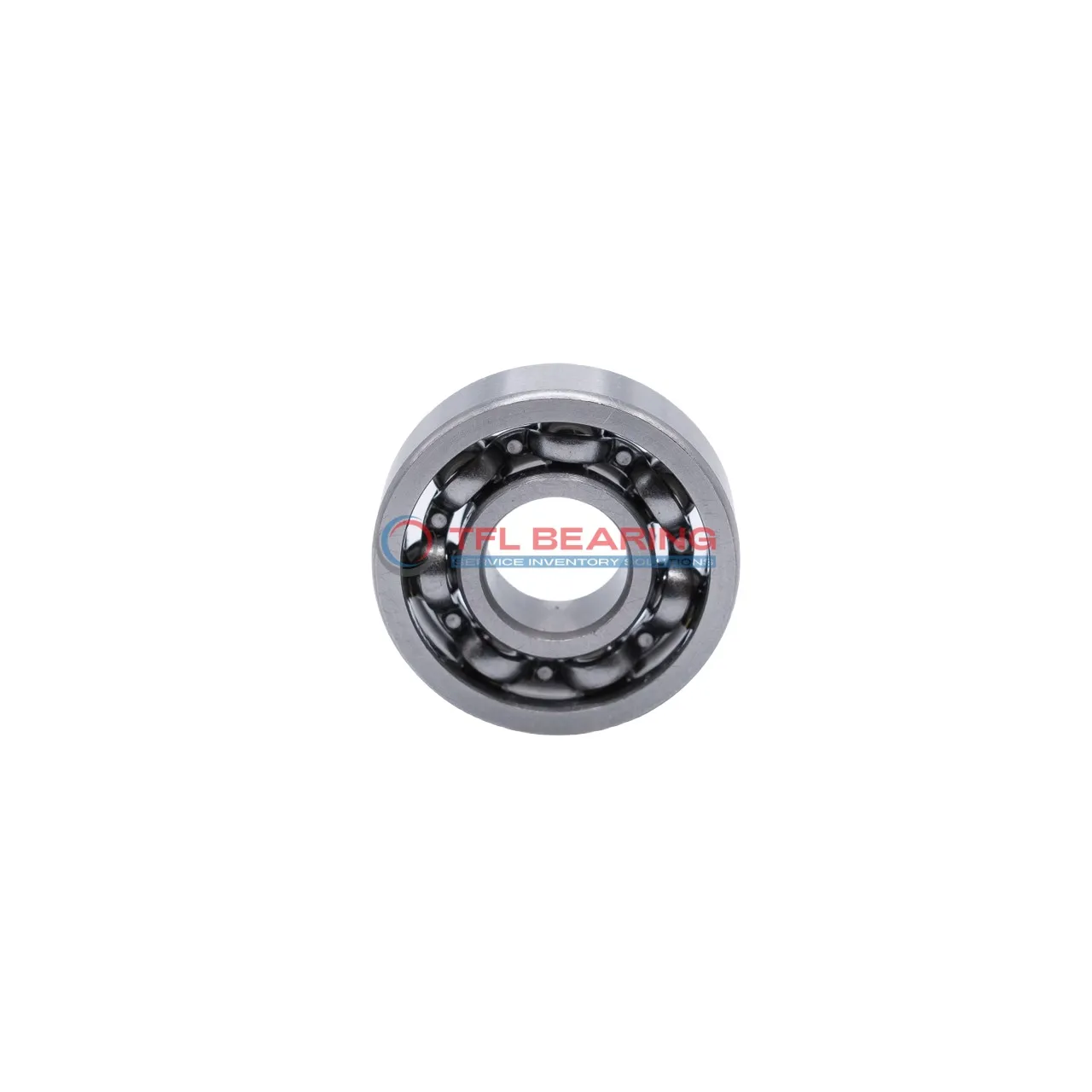

The RLS 24 is a single-row deep groove ball bearing with a 3-inch bore and 5.75-inch outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 15782 lbf and operates smoothly at speeds up to 6000 RPM.
Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery like pumps or electric motors where radial loads are common.
Weighing 1.93kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.
"*" indicates required fields
Performance Features of RLS 24 Bearing
RLS 24 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 15782 lbf, ensuring reliable performance in various applications.
The stainless steel cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 6,000 rpm, it balances durability and efficiency in operation.
Industrial Uses of RLS 24 Bearing
RLS 24 Bearing is commonly used in industrial machinery, such as pumps and compressors, where its single-row design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
In automotive applications, RLS 24 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under high-speed conditions. Its inch sizing makes it compatible with many American and British vehicle models.
For automation equipment, RLS 24 Bearing’s open design allows for easy lubrication, which is essential for robotic arms and conveyor belts. The stainless steel cage adds longevity, even in continuous operation.
Around the home, RLS 24 Bearing can be found in appliances like washing machines, where its smooth operation reduces noise and vibration. The P6 tolerance class ensures precise alignment for consistent performance.
