Single Row Deep Groove Ball Bearings 6316-RS1
Single Row Deep Groove Ball Bearings 6316-RS1

Single Row Deep Groove Ball Bearings 6316-RS1

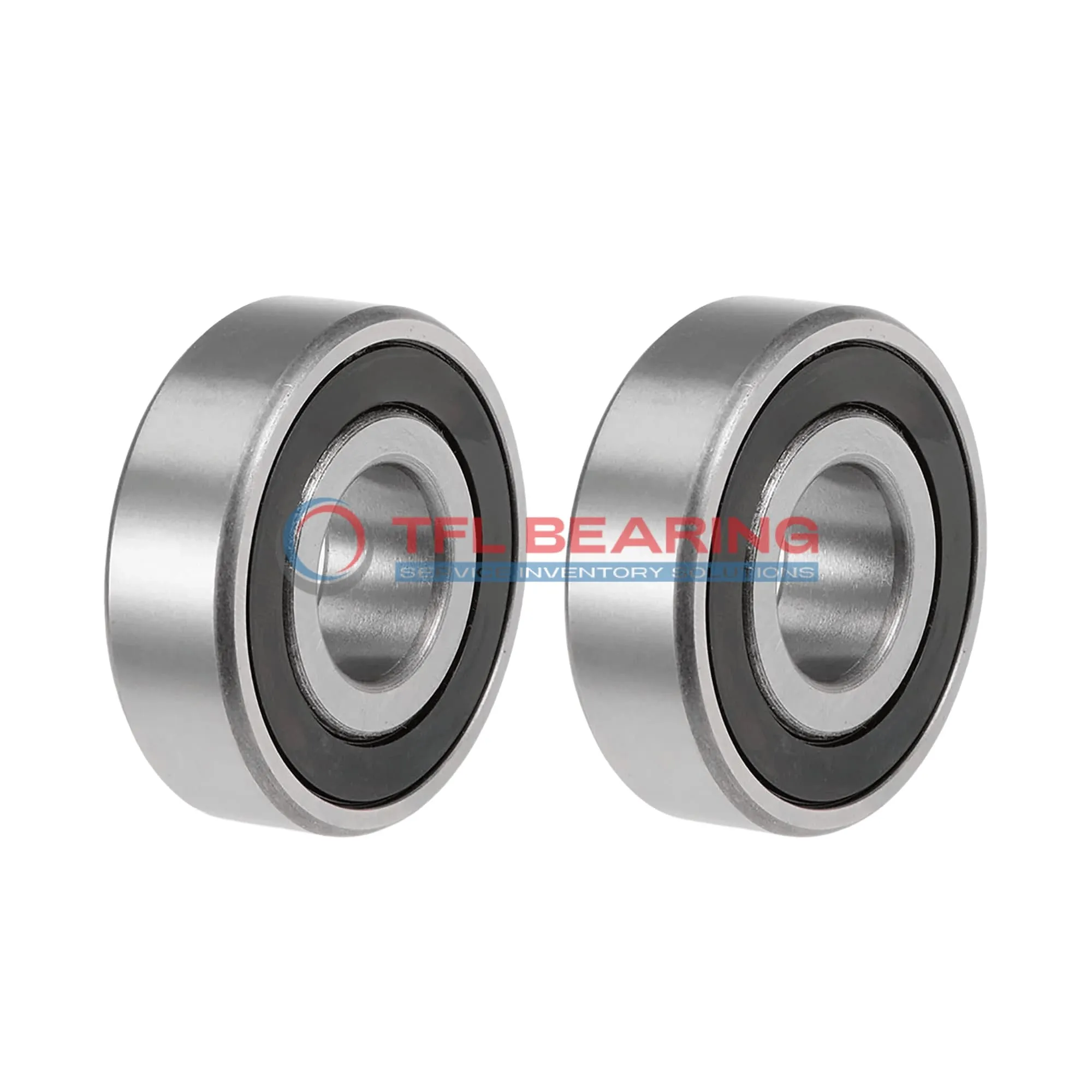

The 6316-RS1 is a sealed single-row deep groove ball bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 29225 lbf and operates smoothly at speeds up to 2600 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan, while the stainless steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for industrial machinery or pumps where radial load support is needed.

Weighing 3.65kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

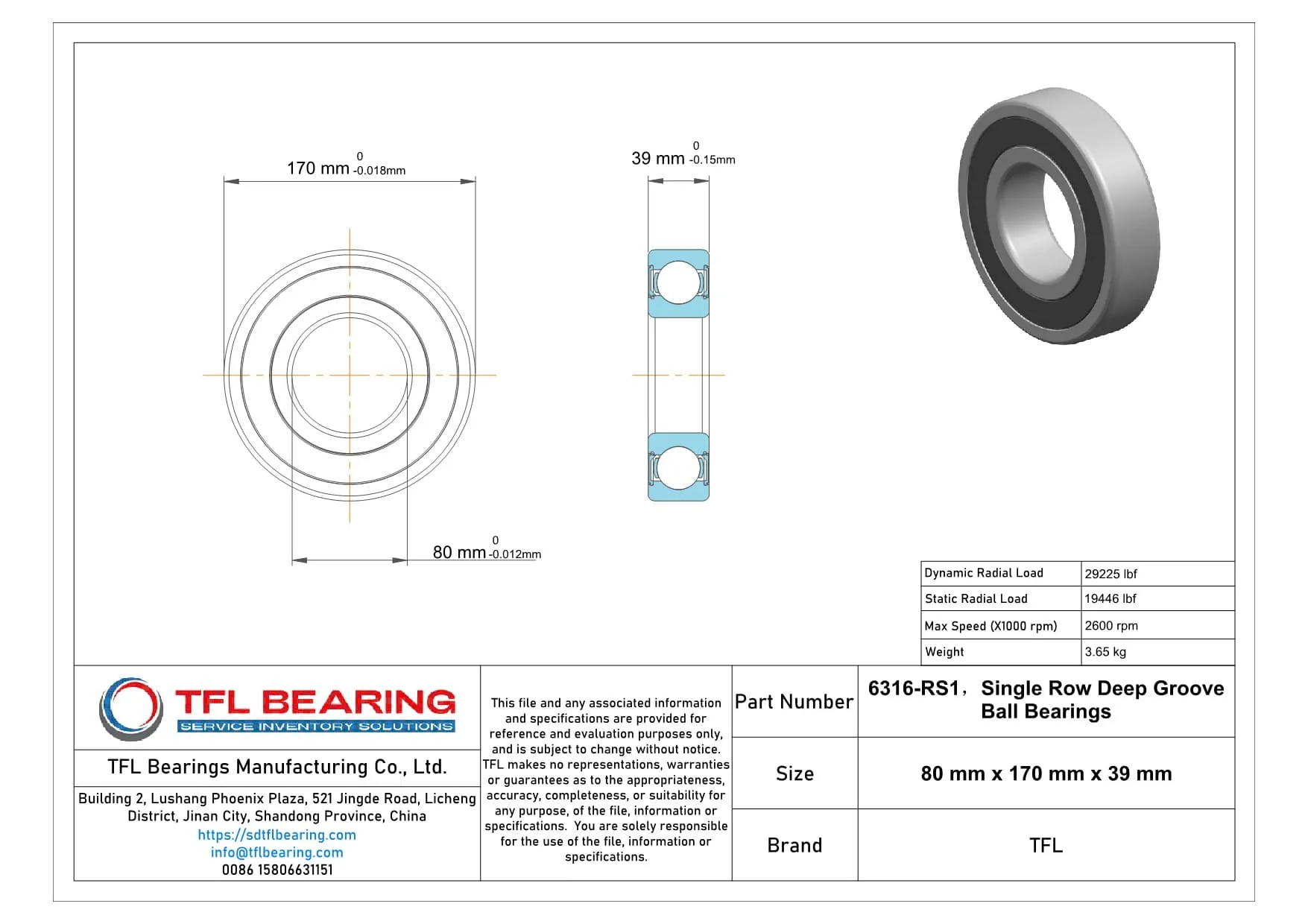

Product Parameters

  • Part Number 6316-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 39 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 29225 lbf
  • Static Radial Load 19446 lbf
  • Max Speed 2600 rpm
  • Weight 3.65 kg

Features

Performance Features of 6316-RS1 Bearing

6316-RS1 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 29225 lbf, ensuring reliable performance in various applications.

The sealed design of 6316-RS1 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 2,600 rpm, it balances efficiency and longevity.

6316-RS1 Bearing operates smoothly in temperatures ranging from -30° to 120°C.
The stainless steel cage ensures proper ball alignment, reducing wear and maintenance needs.

Designed for radial loads, 6316-RS1 Bearing is ideal for industrial and automotive uses.
Its P6 tolerance class guarantees precision and consistent performance.

Application

Industrial Uses of 6316-RS1 Bearing
6316-RS1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures it can handle radial loads reliably over long periods.

Where Is 6316-RS1 Bearing Used?
You’ll often find 6316-RS1 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durability and smooth operation. Its metric sizing makes it a versatile choice for various vehicle designs.

Built for Heavy-Duty Use: 6316-RS1 Bearing
6316-RS1 Bearing works well in conveyor systems and agricultural equipment, where its stainless steel cage adds extra strength. The P6 tolerance class ensures consistent performance even under demanding conditions.

Medical vs Industrial: Where 6316-RS1 Bearing Excels
In medical devices like centrifuges, 6316-RS1 Bearing provides quiet and reliable operation. For industrial settings, it’s a go-to for machinery requiring low maintenance and high load capacity.
