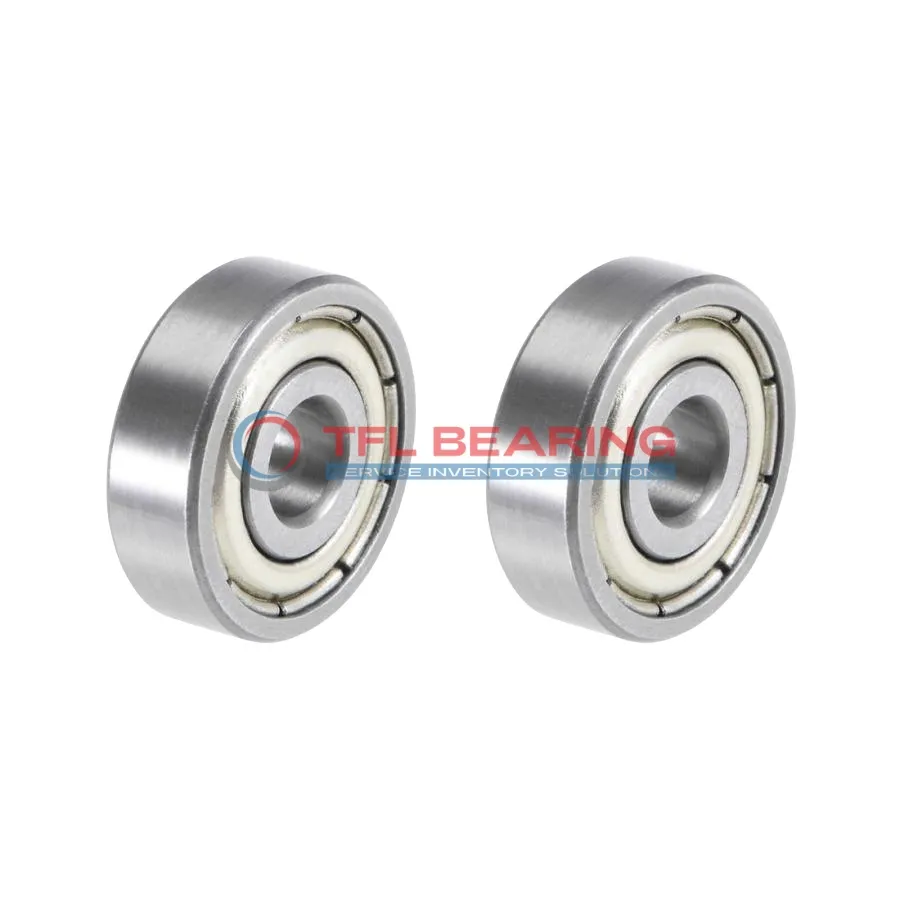

Single Row Deep Groove Ball Bearings 6314-Z/C3VL0241
Single Row Deep Groove Ball Bearings 6314-Z/C3VL0241

Single Row Deep Groove Ball Bearings 6314-Z/C3VL0241

The 6314-Z/C3VL0241 is a single-row deep groove ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2338 lbf and operates smoothly at speeds up to 4500 RPM.

Its shielded design offers basic protection against dust and debris, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 2530g, it’s a robust option for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6314-Z/C3VL0241
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 15332 lbf
  • Max Speed 4500 rpm
  • Weight 2530 g
  • price($) 212.859

Features

Performance Features of 6314-Z/C3VL0241 Bearing

6314-Z/C3VL0241 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 2338 lbf, making it suitable for various industrial applications.

The shielded design protects against contaminants, ensuring smooth operation in harsh environments.
With a maximum speed of 4,500 rpm, it balances performance and durability.

6314-Z/C3VL0241 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance provides flexibility for thermal expansion in different working conditions.

The chrome steel cage enhances stability, reducing wear and extending service life.
This bearing is easy to install and requires minimal maintenance, lowering operational costs.

Application

Industrial Uses of 6314-Z/C3VL0241 Bearing
6314-Z/C3VL0241 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

What Makes 6314-Z/C3VL0241 Bearing a Preferred Choice?
In automotive applications, 6314-Z/C3VL0241 Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile option for various vehicle models.

Built for Heavy-Duty Use: 6314-Z/C3VL0241 Bearing
For automation systems, 6314-Z/C3VL0241 Bearing provides reliable performance in robotic arms and conveyor belts. The ABEC 1 tolerance ensures consistent operation without unnecessary precision costs.

Light-Duty vs Heavy-Duty: Best Uses for 6314-Z/C3VL0241 Bearing
In household appliances like washing machines, 6314-Z/C3VL0241 Bearing offers durability for daily use. Its shielded design also reduces maintenance needs, making it a practical choice for long-term reliability.
