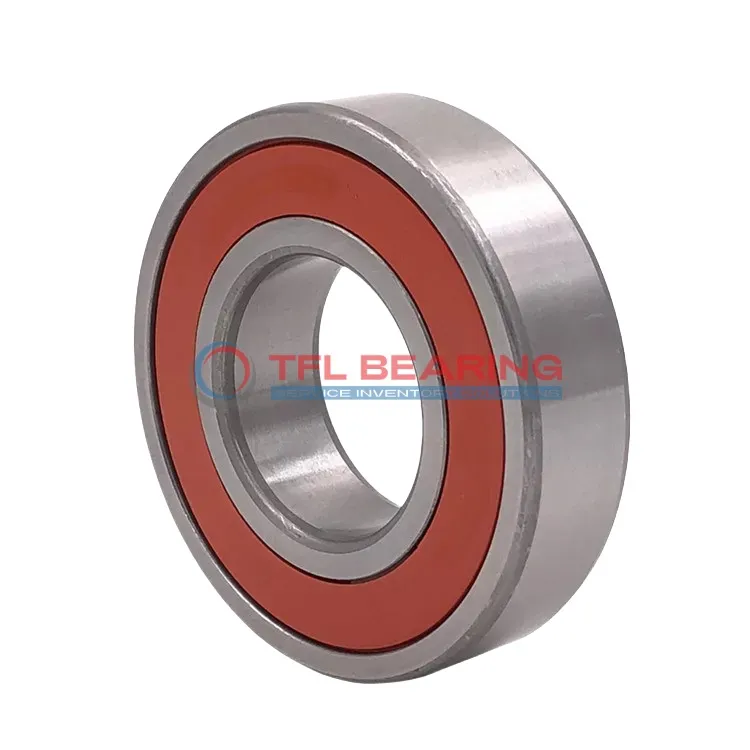

The 6313-2RS1/C3HT is a single-row deep groove ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2084 lbf and operates smoothly at speeds up to 4800 RPM.
Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.
This bearing suits radial load applications like electric motors or pumps, especially in environments from -30°C to 120°C. It’s interchangeable with SKF models, offering a reliable replacement option.
Weighing 2080g, it’s robust yet manageable for its size, complying with RoHS and REACH standards for safety and environmental care.
"*" indicates required fields
Performance Features of 6313-2RS1/C3HT Bearing
6313-2RS1/C3HT Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 2084 lbf, making it suitable for various industrial applications.
The sealed design of 6313-2RS1/C3HT Bearing protects against dust and moisture, enhancing durability.
With a temperature range of -30° to 120°C, it performs reliably in diverse environments.
6313-2RS1/C3HT Bearing’s C3 radial clearance ensures smooth operation under varying thermal conditions.
The ABEC 1 tolerance class provides consistent performance for general-purpose use.
Weighing 2080 g, 6313-2RS1/C3HT Bearing balances strength and practicality for machinery needs.
Its maximum speed of 4,800 rpm delivers efficient performance in demanding settings.
Industrial Uses of 6313-2RS1/C3HT Bearing
6313-2RS1/C3HT Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its sealed design protects against dust and debris. The C3 radial clearance ensures reliable performance under varying thermal conditions.
In automotive applications, 6313-2RS1/C3HT Bearing supports components like alternators and water pumps, providing smooth operation under radial loads. Its chrome steel construction offers durability in demanding environments.
For automation systems, 6313-2RS1/C3HT Bearing is ideal for robotic arms and conveyor belts, thanks to its high load capacity and sealed protection. The metric sizing makes it compatible with a wide range of equipment.
In household appliances like washing machines, 6313-2RS1/C3HT Bearing ensures quiet and efficient operation. The sealed design helps extend its lifespan by preventing contamination from detergents and moisture.
