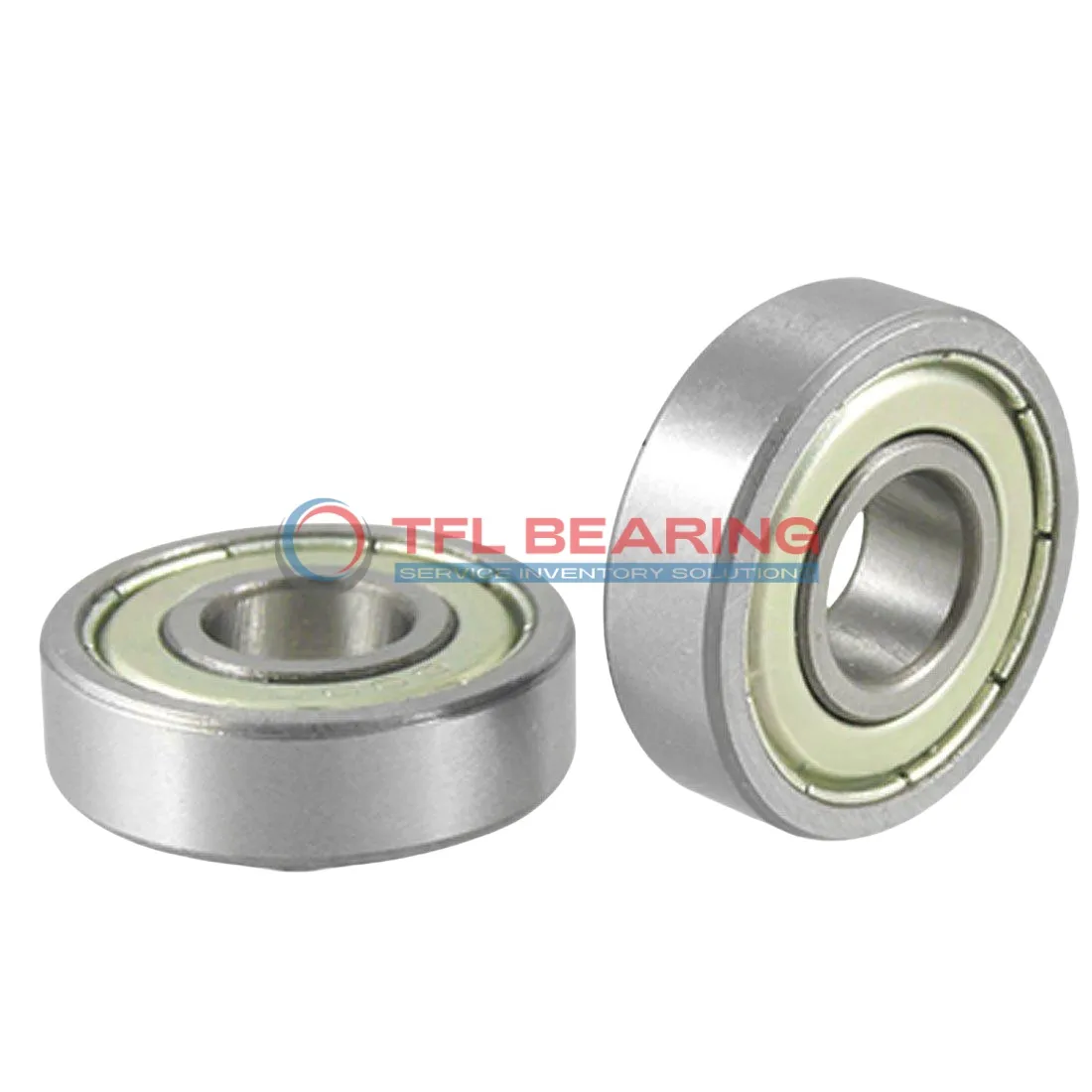

Single Row Deep Groove Ball Bearings 6311-2Z/C3GJN
Single Row Deep Groove Ball Bearings 6311-2Z/C3GJN

Single Row Deep Groove Ball Bearings 6311-2Z/C3GJN

The 6311-2Z/C3GJN is a single row deep groove ball bearing with a 55mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 16096 lbf and operates smoothly at speeds up to 5600 RPM.

Its shielded design keeps dirt out while the C3 radial clearance ensures reliable performance under varying temperatures. The bearing works well in environments ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 1350g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6311-2Z/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 29 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16096 lbf
  • Static Radial Load 10116 lbf
  • Max Speed 5600 rpm
  • Weight 1350 g
  • price($) 22.761

Features

How Does 6311-2Z/C3GJN Bearing Reduce Friction?

6311-2Z/C3GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The shielded construction helps keep contaminants out, ensuring consistent performance.

Made from chrome steel, 6311-2Z/C3GJN Bearing resists wear, extending its service life.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied temperatures.

With a dynamic radial load capacity of 16096 lbf, 6311-2Z/C3GJN Bearing handles demanding applications efficiently.
The balanced design ensures quiet operation, even at speeds up to 5,600 rpm.

6311-2Z/C3GJN Bearing’s shielded design reduces maintenance needs, saving time and costs.
Its ISO P0 tolerance class ensures reliable performance in general industrial applications.

Application

Common Applications of 6311-2Z/C3GJN Bearing
6311-2Z/C3GJN Bearing is widely used in industrial machinery, such as pumps and electric motors, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6311-2Z/C3GJN Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its chrome steel construction offers durability for long-term use in demanding environments.

For automation systems, 6311-2Z/C3GJN Bearing works efficiently in robotic arms and conveyor belts. The metric sizing and ABEC 1 tolerance make it a versatile choice for precision equipment.

In household appliances like washing machines, 6311-2Z/C3GJN Bearing ensures quiet and smooth operation. Its shielded seals help extend service life by reducing dust and moisture ingress.
