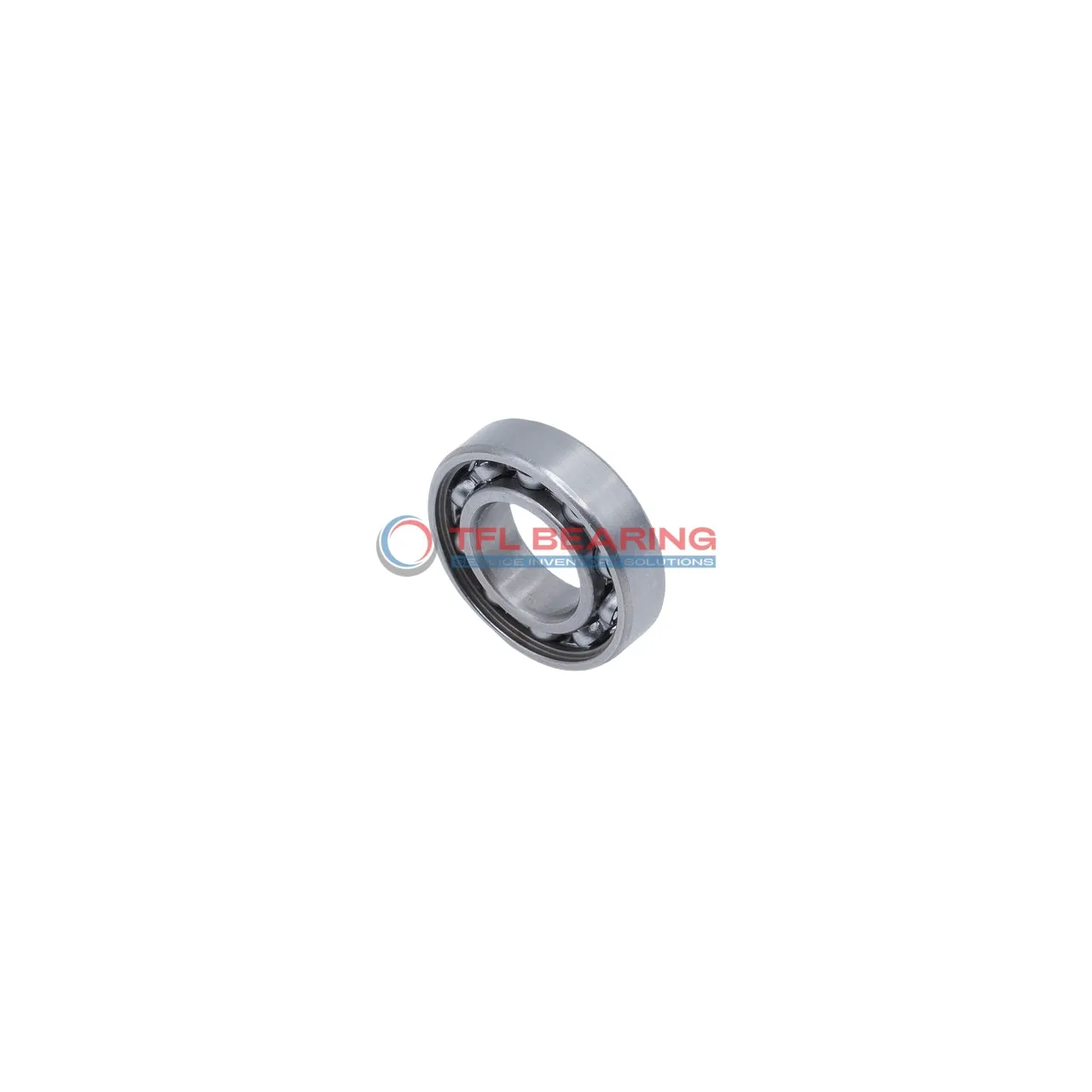

Single Row Deep Groove Ball Bearings 6309 M
Single Row Deep Groove Ball Bearings 6309 M

Single Row Deep Groove Ball Bearings 6309 M

The 6309 M is a single-row deep groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 12432 lbf and operates smoothly at speeds reaching 14000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are typical.

Weighing 0.99kg, it balances strength and portability. Compliant with RoHS and REACH standards, it ensures safe usage in various settings.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6309 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 25 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 12432 lbf
  • Static Radial Load 7081 lbf
  • Max Speed 14000 rpm
  • Weight 0.99 kg
  • price($) 106.227

Features

Performance Features of 6309 M Bearing

6309 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 12432 lbf, ensuring reliable performance in various applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 14,000 rpm, it delivers both durability and efficiency.

Application

Common Applications of 6309 M Bearing
The 6309 M Bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design and stainless steel cage make it suitable for environments requiring frequent maintenance.

Where Is 6309 M Bearing Used?
You’ll often find the 6309 M Bearing in automotive applications like wheel hubs and transmissions, thanks to its durability and smooth operation. The metric dimensions make it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 6309 M Bearing
In automation and robotics, the 6309 M Bearing supports high-speed operations in robotic arms and conveyor systems. Its chrome steel construction provides long-lasting performance even under continuous use.

Automotive vs Industrial: Applications of 6309 M Bearing
For household appliances like washing machines, the 6309 M Bearing offers quiet and efficient operation. In industrial settings, it handles heavier loads in equipment like gearboxes and compressors.
