Single Row Deep Groove Ball Bearings 6309-2RS1/LT20
Single Row Deep Groove Ball Bearings 6309-2RS1/LT20

Single Row Deep Groove Ball Bearings 6309-2RS1/LT20

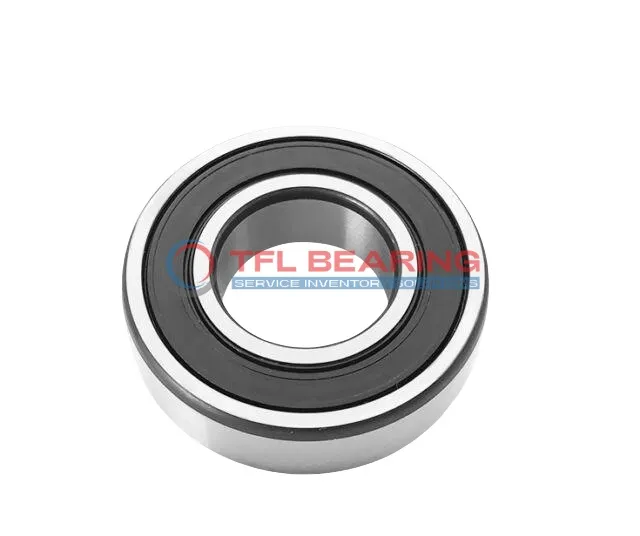

The 6309-2RS1/LT20 is a single-row deep groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11915 lbf and operates smoothly at speeds up to 6700 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 811g, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6309-2RS1/LT20
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11915 lbf
  • Static Radial Load 7194 lbf
  • Max Speed 6700 rpm
  • Weight 811 g

Features

Performance Features of 6309-2RS1/LT20 Bearing

6309-2RS1/LT20 Bearing is designed for radial loads, with a dynamic radial load capacity of 11915 lbf.
Its sealed construction protects against contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls enhance durability, while the chrome steel cage maintains ball alignment.
With a maximum speed of 6,700 rpm, it offers reliable performance for industrial applications.

6309-2RS1/LT20 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its ABEC 1 tolerance and ISO P0 classification ensure consistent precision and quality.

Application

Industrial Uses of 6309-2RS1/LT20 Bearing
The 6309-2RS1/LT20 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 6309-2RS1/LT20 Bearing fits well in wheel hubs and transmissions, providing reliable radial load support. The metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6309-2RS1/LT20 Bearing works smoothly in robotic arms and conveyor belts, thanks to its balanced performance. The sealed design also reduces maintenance needs in dusty or wet conditions.

Where Is 6309-2RS1/LT20 Bearing Used?
You’ll often find 6309-2RS1/LT20 Bearing in household appliances like washing machines, where its quiet operation is a plus. The sealed design helps it handle moisture and detergent exposure.

In agricultural equipment, 6309-2RS1/LT20 Bearing supports components like harvesters and tractors, standing up to rough conditions. Its robust build ensures long service life even with heavy use.

Built for Heavy-Duty Use: 6309-2RS1/LT20 Bearing
The 6309-2RS1/LT20 Bearing is a solid pick for construction machinery, where radial loads and vibrations are common. Its chrome steel cage adds extra strength for tough jobs.

For food processing equipment, 6309-2RS1/LT20 Bearing’s sealed design helps meet hygiene standards by preventing contamination. The temperature range also suits both hot and cold environments.
