Single Row Deep Groove Ball Bearings 6308-2RS1/W64
Single Row Deep Groove Ball Bearings 6308-2RS1/W64

Single Row Deep Groove Ball Bearings 6308-2RS1/W64

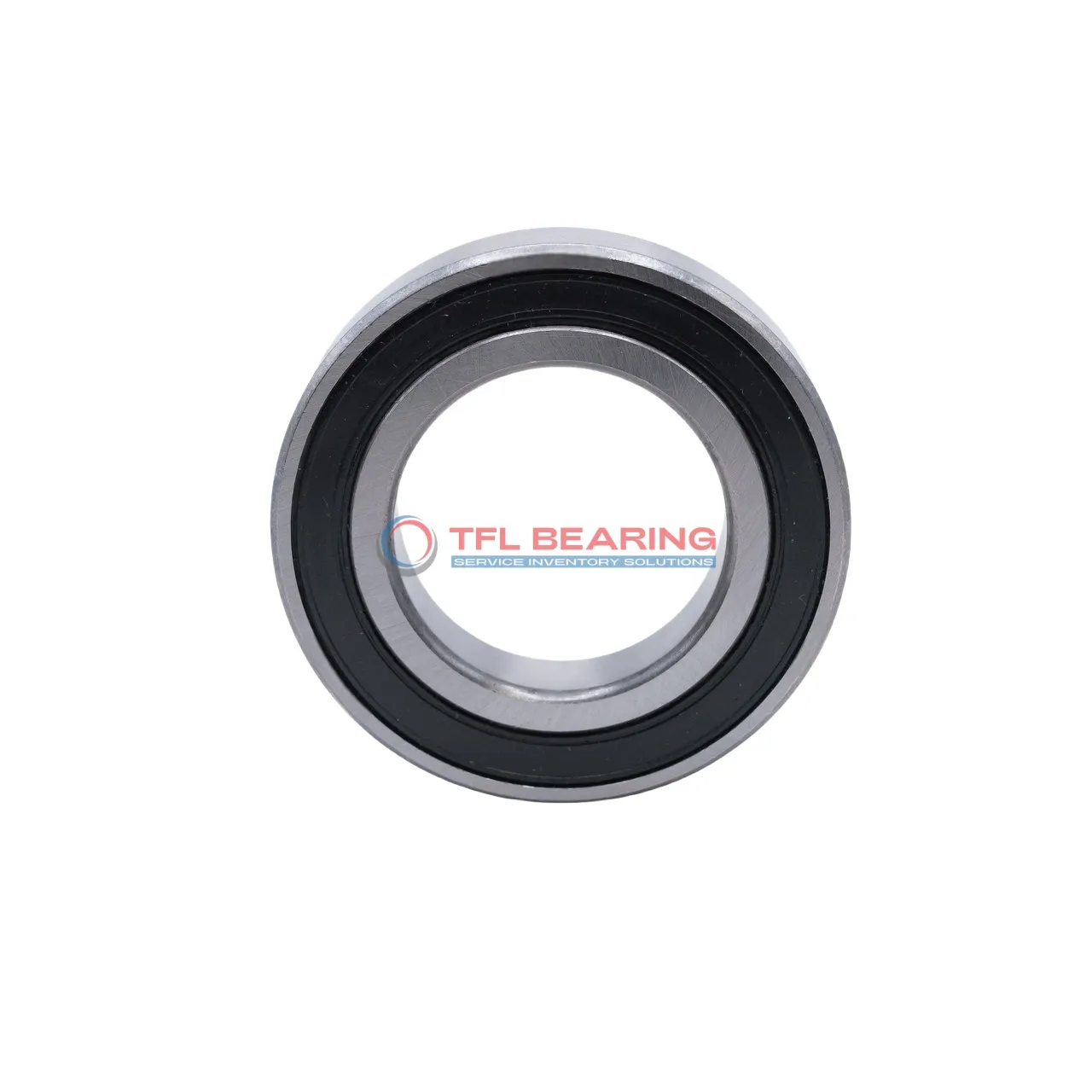

The 6308-2RS1/W64 is a single-row deep groove ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 915 lbf and operates smoothly at speeds up to 7500 RPM.

Its sealed design keeps dirt out and retains lubrication, while the solid oil ensures long-term performance without frequent maintenance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 620g, it balances durability and ease of handling. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6308-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 915 lbf
  • Static Radial Load 5395 lbf
  • Max Speed 7500 rpm
  • Weight 620 g
  • price($) 19.107

Features

Performance Features of 6308-2RS1/W64 Bearing

6308-2RS1/W64 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 915 lbf, making it suitable for various industrial applications.

The sealed design and solid oil lubrication ensure long-lasting performance with minimal maintenance.
It operates smoothly within a temperature range of -30°C to 120°C, adapting to different environments.

With a maximum speed of 7,500 rpm, it balances efficiency and durability.
The ABEC 1 tolerance class provides reliable precision for everyday use.

Application

Common Applications of 6308-2RS1/W64 Bearing
6308-2RS1/W64 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures long service life even in demanding conditions.

In automotive applications, 6308-2RS1/W64 Bearing is often found in wheel hubs and transmissions, providing reliable radial load support. Its chrome steel construction offers durability and resistance to wear over time.

For household appliances like washing machines, 6308-2RS1/W64 Bearing’s smooth operation reduces noise and vibration. The sealed design also makes it ideal for environments where dust and moisture are present.

In automation systems, 6308-2RS1/W64 Bearing supports robotic arms and conveyor belts, ensuring consistent performance. Its ABEC 1 tolerance class provides a good balance of precision and affordability for general industrial use.
