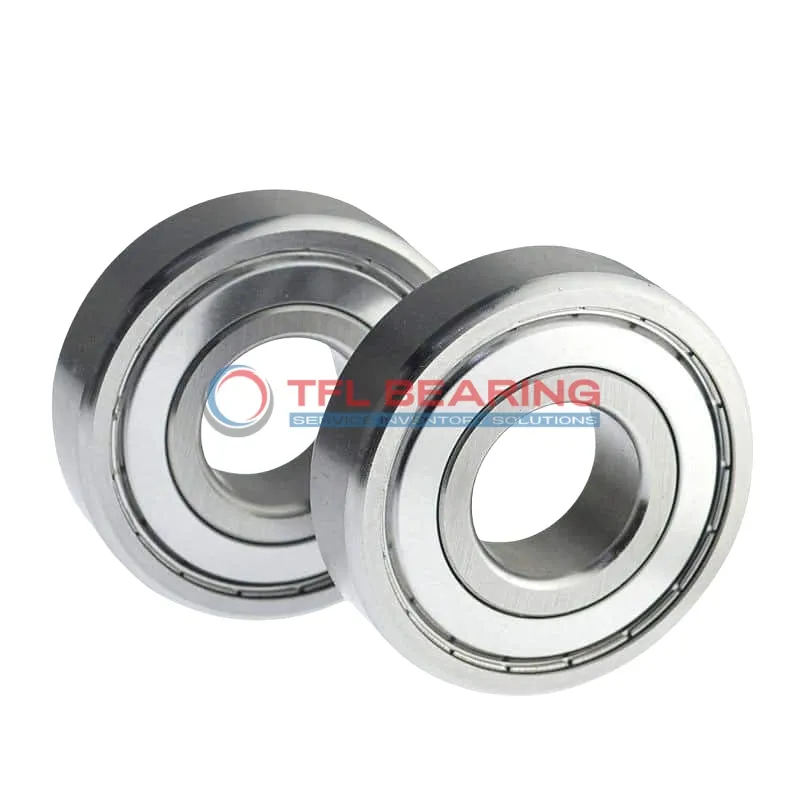

Single Row Deep Groove Ball Bearings 6307-2ZJEM
Single Row Deep Groove Ball Bearings 6307-2ZJEM

Single Row Deep Groove Ball Bearings 6307-2ZJEM

The 6307-2ZJEM is a single row deep groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its shielded design keeps out dust and debris, while the chrome steel cage ensures durability. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 457g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6307-2ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Max Speed 8500 rpm
  • Weight 457 g
  • price($) 7.974

Features

Performance Features of 6307-2ZJEM Bearing

6307-2ZJEM Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 7509 lbf.
Its shielded design protects against contaminants, making it suitable for various industrial environments.
The ABEC 1 tolerance ensures consistent performance, while the CN radial clearance provides smooth operation.
With a maximum speed of 8,500 rpm, it balances durability and efficiency in demanding applications.

Application

Industrial Uses of 6307-2ZJEM Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

Where Is 6307-2ZJEM Bearing Used?
You’ll often find it in automotive applications such as alternators and wheel hubs, thanks to its reliable radial load handling. Its ABEC 1 tolerance makes it suitable for general-purpose use.

Perfect Fit for Automation: 6307-2ZJEM Bearing
In automated systems, this bearing works well in conveyor belts and robotic arms due to its smooth operation. The metric sizing ensures compatibility with a variety of equipment.

Light-Duty vs Heavy-Duty: Best Uses for 6307-2ZJEM Bearing
For light-duty tasks, it’s ideal in household appliances like washing machines. In heavier applications, it supports machinery requiring consistent performance under radial loads.

Medical vs Industrial: Where 6307-2ZJEM Bearing Excels
While not typically used in medical devices, it’s a solid choice for industrial tools and equipment. Its temperature range allows it to perform well in various conditions.
