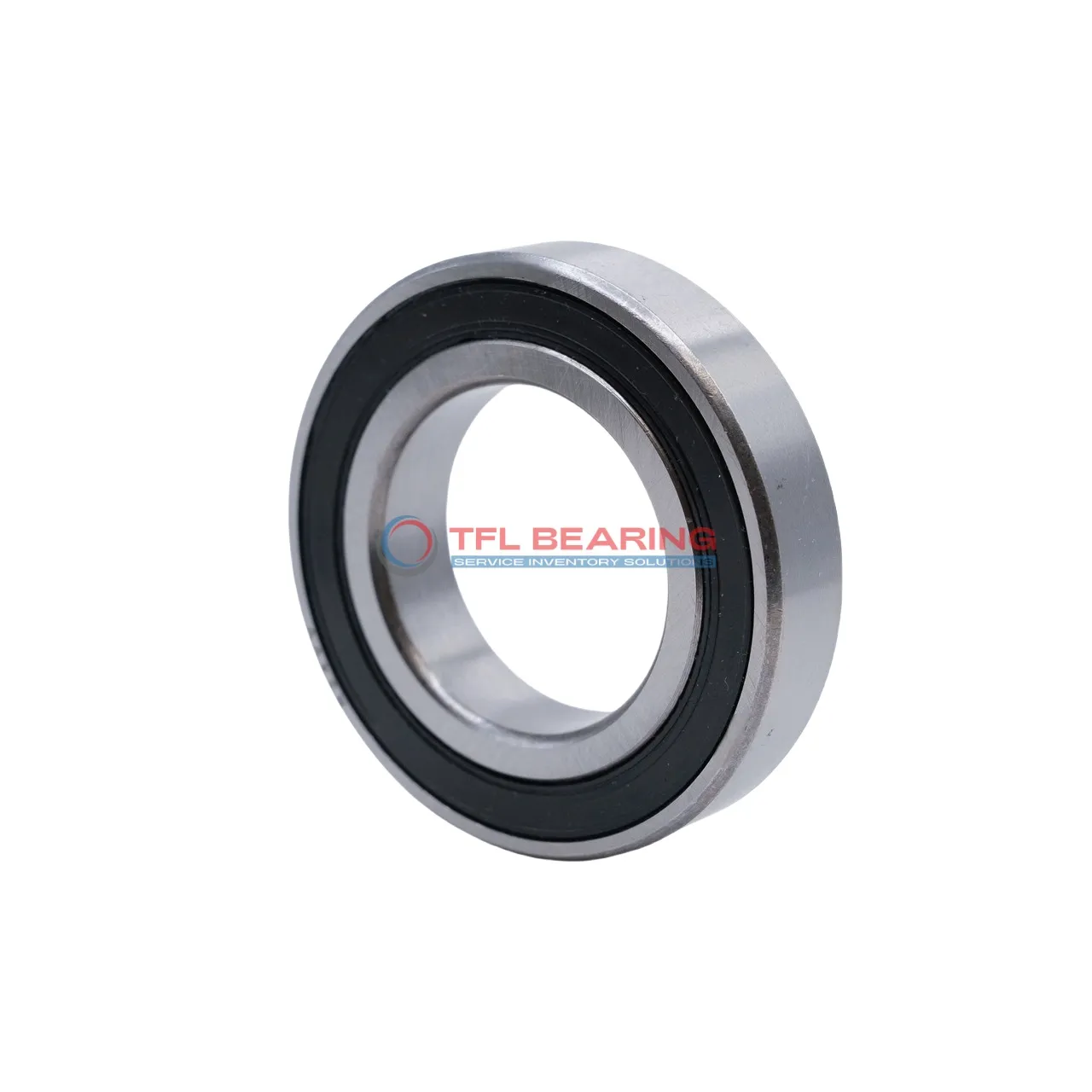

Single Row Deep Groove Ball Bearings 6307-2RS2/C3WT
Single Row Deep Groove Ball Bearings 6307-2RS2/C3WT

Single Row Deep Groove Ball Bearings 6307-2RS2/C3WT

The 6307-2RS2/C3WT is a single-row deep groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where consistent radial load support is needed.

Weighing 457g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe, eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6307-2RS2/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Max Speed 8500 rpm
  • Weight 457 g
  • price($) 11.889

Features

Performance Features of 6307-2RS2/C3WT Bearing

6307-2RS2/C3WT Bearing is built with chrome steel rings and balls, offering excellent radial load capacity.
Its dynamic radial load reaches 7509 lbf, making it suitable for various industrial applications.

The sealed design of 6307-2RS2/C3WT Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 8,500 rpm, it ensures smooth operation in demanding conditions.

6307-2RS2/C3WT Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance provides optimal performance under varying thermal conditions.

The chrome steel cage in 6307-2RS2/C3WT Bearing maintains ball alignment, reducing wear.
This design ensures long service life and minimal maintenance requirements.

6307-2RS2/C3WT Bearing meets ROHS and REACH compliance standards, ensuring environmental safety.
Its precision engineering makes it a reliable choice for radial load applications.

Application

Common Applications of 6307-2RS2/C3WT Bearing
This bearing is widely used in industrial fans and pumps, where its sealed design helps keep out dust and moisture. The C3 clearance ensures smooth operation even with thermal expansion.

What Makes 6307-2RS2/C3WT Bearing a Preferred Choice?
In automotive alternators and water pumps, 6307-2RS2/C3WT Bearing offers reliable radial load support. Its chrome steel construction provides good wear resistance for long service life.

Built for Heavy-Duty Use: 6307-2RS2/C3WT Bearing
You’ll often find this bearing in conveyor systems handling moderate loads. The sealed design reduces maintenance needs in dirty environments.

Light-Duty vs Heavy-Duty: Best Uses for 6307-2RS2/C3WT Bearing
While suitable for light machinery like small electric motors, 6307-2RS2/C3WT Bearing also performs well in agricultural equipment. Its balanced design handles both radial and light axial loads effectively.

Perfect Fit for Automation: 6307-2RS2/C3WT Bearing
In packaging machinery, 6307-2RS2/C3WT Bearing ensures smooth rotation of rollers and shafts. The consistent performance helps maintain production line efficiency.
