Single Row Deep Groove Ball Bearings 6307-2RS1/GJN
Single Row Deep Groove Ball Bearings 6307-2RS1/GJN

Single Row Deep Groove Ball Bearings 6307-2RS1/GJN

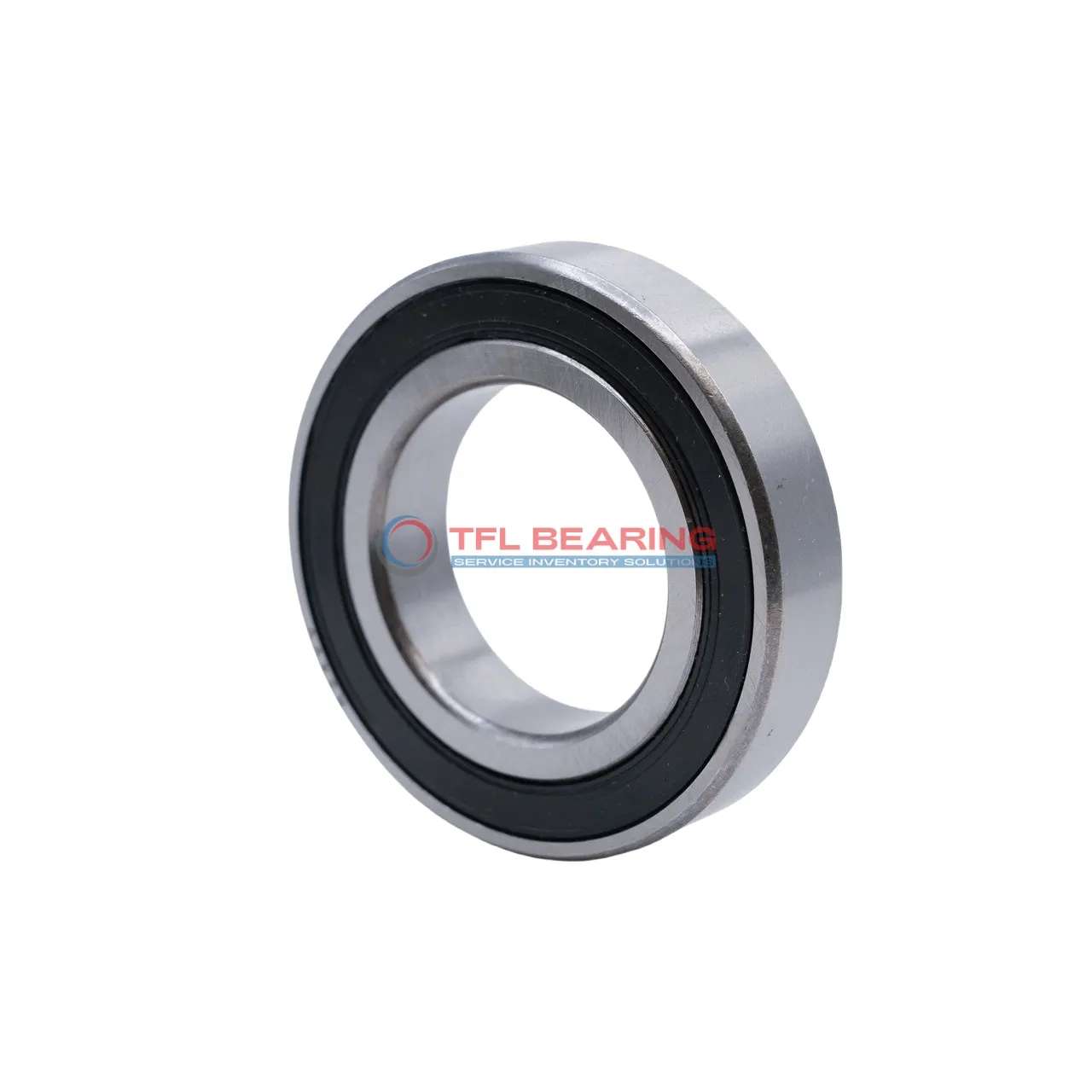

The 6307-2RS1/GJN is a single-row deep groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The chrome steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a cost-effective replacement option.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 457g, it’s a robust yet manageable size for most industrial uses. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6307-2RS1/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Max Speed 8500 rpm
  • Weight 457 g
  • price($) 8.676

Features

Performance Features of 6307-2RS1/GJN Bearing

6307-2RS1/GJN Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7509 lbf, ensuring reliable performance in various applications.

The sealed design of 6307-2RS1/GJN Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 8,500 rpm, it balances durability and efficiency.

6307-2RS1/GJN Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its chrome steel cage ensures stable performance even under heavy loads.

The ABEC 1 tolerance class of 6307-2RS1/GJN Bearing provides consistent precision.
This makes it suitable for applications where reliability is key.

6307-2RS1/GJN Bearing’s compact size (35 mm×80 mm×21 mm) allows for easy integration into various systems.
Its sealed design also reduces the need for frequent maintenance.

Application

Common Applications of 6307-2RS1/GJN Bearing
In industrial settings, 6307-2RS1/GJN Bearing is widely used in electric motors and pumps, thanks to its sealed design that keeps contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6307-2RS1/GJN Bearing Used?
You’ll often find 6307-2RS1/GJN Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed protection are key. It’s also a reliable choice for agricultural machinery.

Built for Heavy-Duty Use: 6307-2RS1/GJN Bearing
This bearing excels in conveyor systems and gearboxes, handling moderate radial loads with ease. The ABEC 1 tolerance ensures consistent performance without overcomplicating maintenance.

Automotive vs Industrial: Applications of 6307-2RS1/GJN Bearing
In cars, 6307-2RS1/GJN Bearing supports smooth operation in wheel hubs and transmissions. For factories, it’s a go-to for machinery like compressors, where reliability matters most.

Perfect Fit for Automation: 6307-2RS1/GJN Bearing
Robotic arms and packaging machines benefit from 6307-2RS1/GJN Bearing’s balanced load handling and sealed design. It’s a practical pick for keeping automated systems running smoothly.
