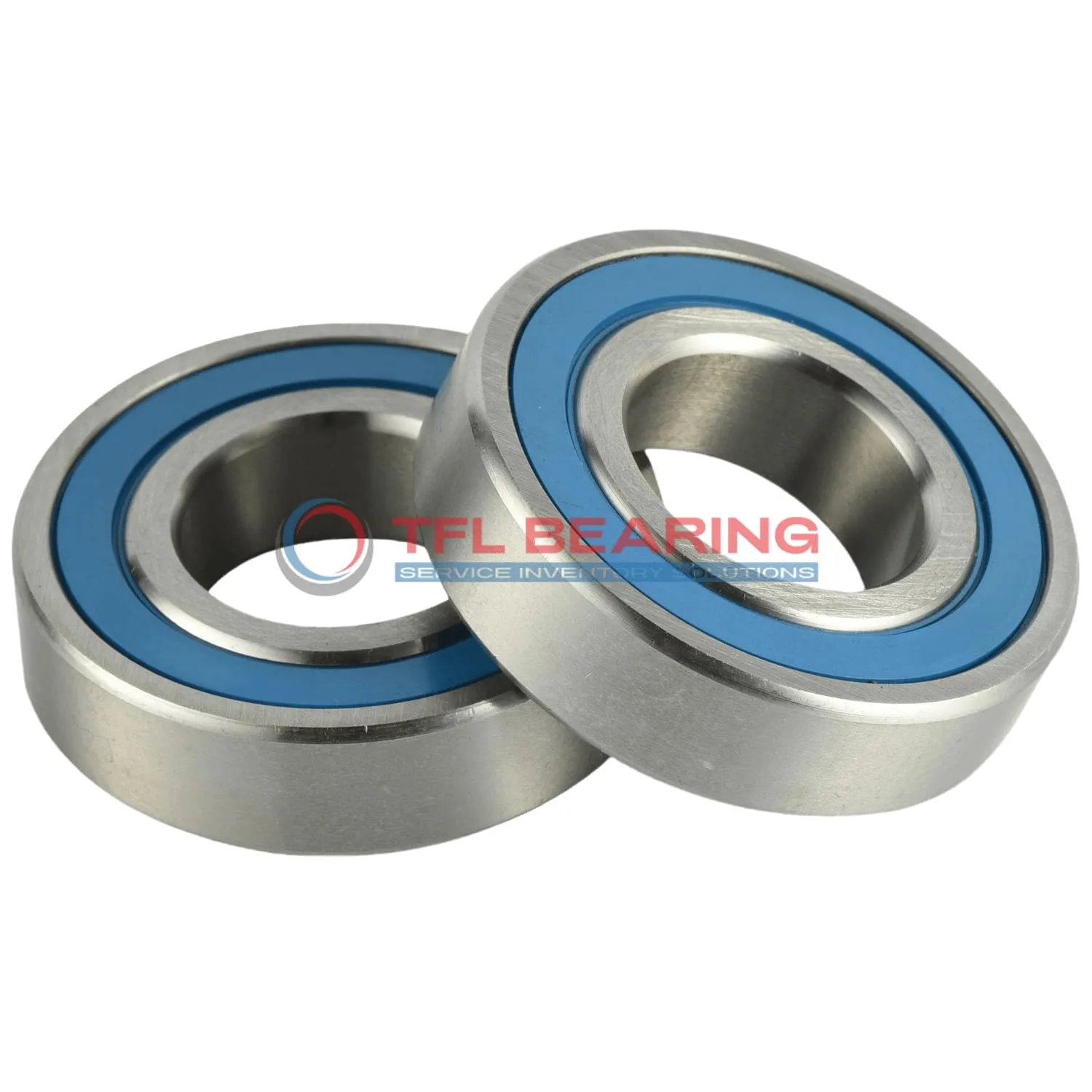

The 6306-2RZ/C3GJN is a sealed single row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.
Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.
This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where consistent radial load support is needed.
Weighing 346g, it’s a sturdy yet manageable size for various applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
How Does 6306-2RZ/C3GJN Bearing Reduce Friction?
6306-2RZ/C3GJN Bearing features a sealed design, preventing contaminants from entering and reducing friction.
The chrome steel construction ensures smooth operation, even under high radial loads of up to 6002 lbf.
With a maximum speed of 9,600 rpm, it maintains efficiency without compromising durability.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied temperature ranges.
Common Applications of 6306-2RZ/C3GJN Bearing
In industrial settings, 6306-2RZ/C3GJN Bearing is widely used in electric motors and pumps, thanks to its sealed design which keeps contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.
Where Is 6306-2RZ/C3GJN Bearing Used?
You’ll often find 6306-2RZ/C3GJN Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel rings and balls provide long-lasting durability.
Built for Heavy-Duty Use: 6306-2RZ/C3GJN Bearing
For conveyor systems and agricultural machinery, 6306-2RZ/C3GJN Bearing handles heavy radial loads with ease. Its robust design and temperature tolerance make it suitable for demanding environments.
Automotive vs Industrial: Applications of 6306-2RZ/C3GJN Bearing
In cars, 6306-2RZ/C3GJN Bearing supports smooth operation in components like fans and pulleys. In factories, it’s a go-to for machinery requiring consistent performance under load.
