Single Row Deep Groove Ball Bearings 6306-2RS1/C3WT
Single Row Deep Groove Ball Bearings 6306-2RS1/C3WT

Single Row Deep Groove Ball Bearings 6306-2RS1/C3WT

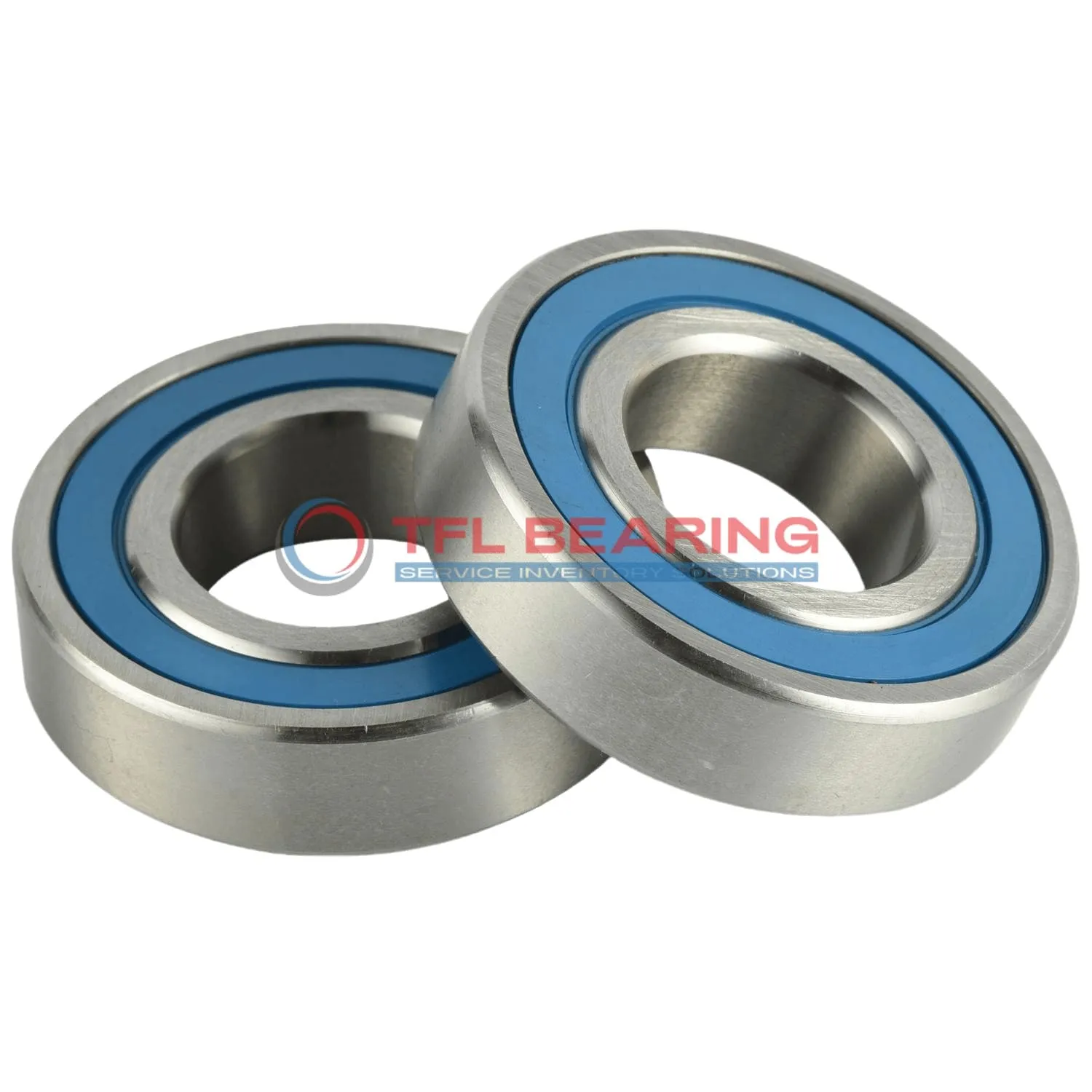

The 6306-2RS1/C3WT is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6002 lbf and spins smoothly at speeds up to 9600 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 clearance allows for slight thermal expansion. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Perfect for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 346g, it’s a robust yet lightweight choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

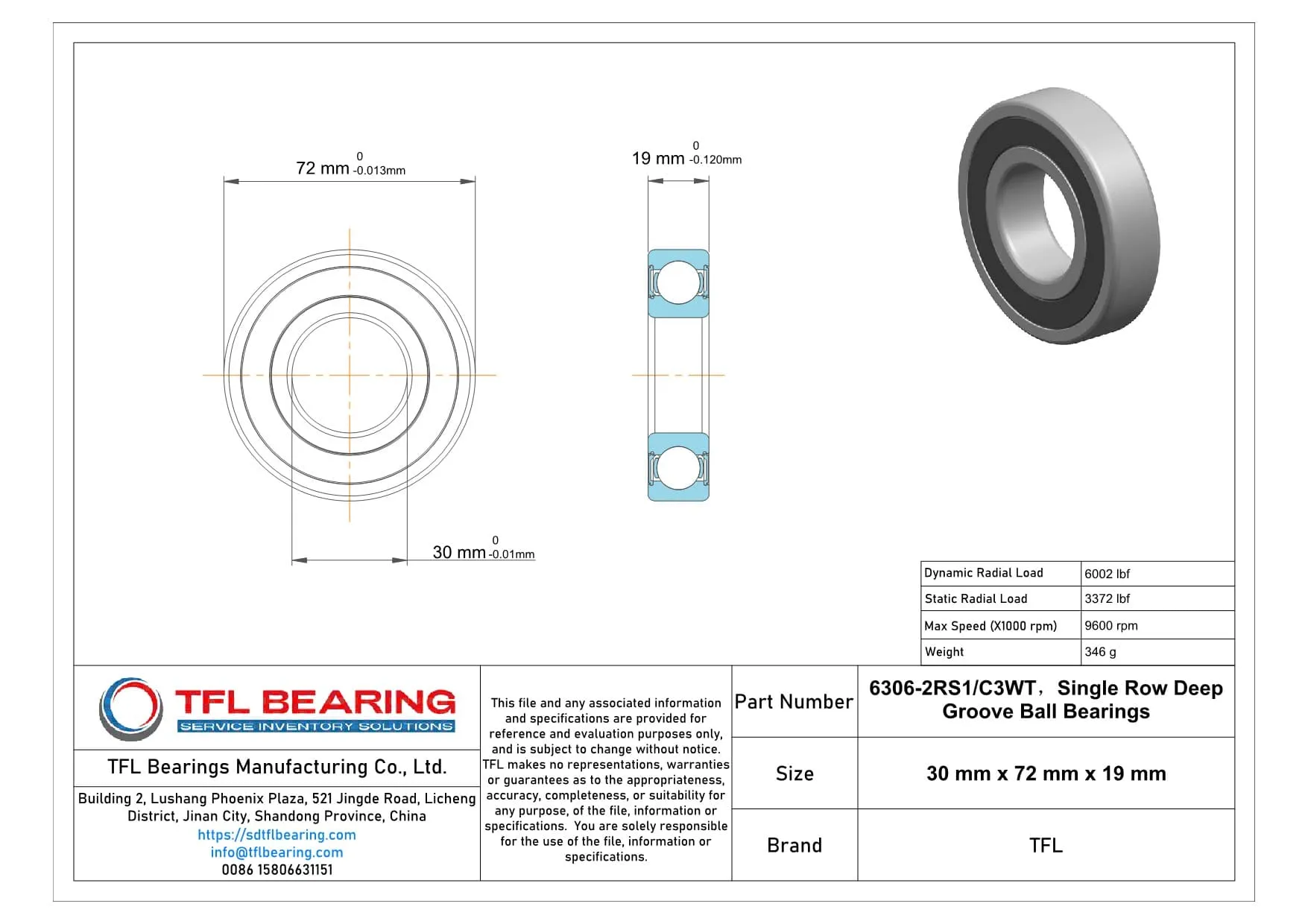

Product Parameters

  • Part Number 6306-2RS1/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Max Speed 9600 rpm
  • Weight 346 g

Features

Performance Features of 6306-2RS1/C3WT Bearing

6306-2RS1/C3WT Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 6002 lbf, making it suitable for various industrial applications.

The sealed design of 6306-2RS1/C3WT Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 9,600 rpm, it ensures smooth and efficient operation.

6306-2RS1/C3WT Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its C3 radial clearance provides optimal performance under varying load conditions.

Application

Common Applications of 6306-2RS1/C3WT Bearing
The 6306-2RS1/C3WT Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. Its C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6306-2RS1/C3WT Bearing Used?
You’ll often find 6306-2RS1/C3WT Bearing in automotive applications like alternators and water pumps, thanks to its radial load capacity. The chrome steel construction provides durability in high-speed environments.

Ideal for Precision: 6306-2RS1/C3WT Bearing
In automation systems, 6306-2RS1/C3WT Bearing supports smooth operation in robotic arms and conveyor belts. Its sealed design reduces maintenance needs, making it a practical choice for continuous use.

Automotive vs Industrial: Applications of 6306-2RS1/C3WT Bearing
While 6306-2RS1/C3WT Bearing excels in car components like fans and transmissions, it’s equally reliable in industrial gearboxes. The metric sizing ensures compatibility across different machinery types.
