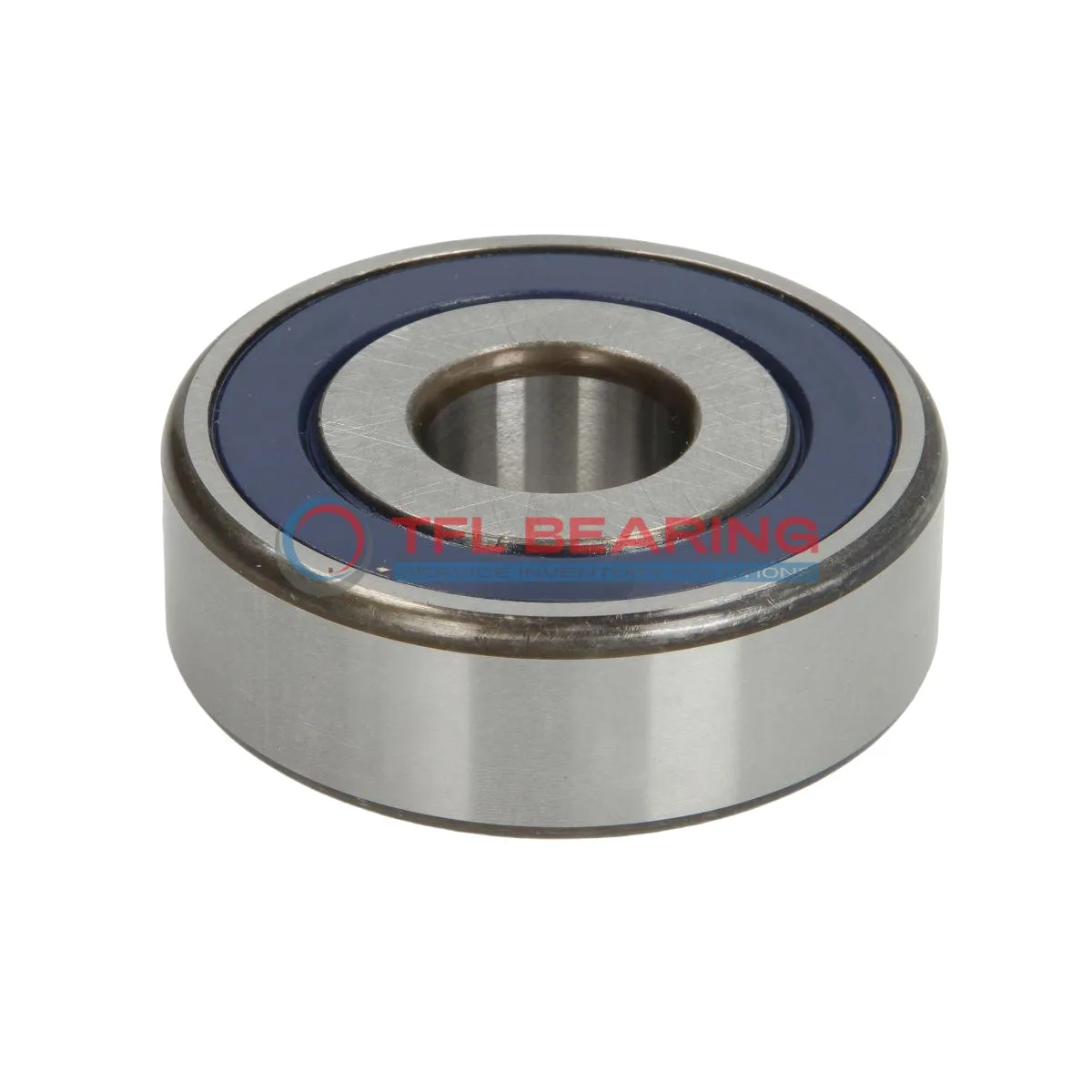

The 6305-2RS1/W64 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from durable chrome steel. Its sealed design keeps lubrication in and contaminants out, making it low-maintenance.
This model handles radial loads up to 4631 lbf and spins smoothly at speeds up to 11000 RPM. The solid oil lubrication ensures consistent performance across a temperature range of -30°C to 120°C.
With ABEC 1 precision and ISO P0 tolerance, it offers reliable operation for everyday industrial use. The chrome steel cage adds extra durability under heavy loads.
Ideal for electric motors, pumps, or gearboxes where sealed protection is needed. Weighing 232g, it’s a sturdy yet compact choice for machinery repairs or replacements. Compliant with RoHS and REACH standards.
"*" indicates required fields
Performance Features of 6305-2RS1/W64 Bearing
6305-2RS1/W64 Bearing is built with chrome steel rings and balls, ensuring durability and resistance to wear.
Its sealed design keeps contaminants out, making it suitable for various environments.
The solid oil lubrication reduces maintenance needs while providing consistent performance.
With a dynamic radial load capacity of 4631 lbf, it handles demanding radial loads with ease.
This bearing operates smoothly at speeds up to 11,000 rpm, balancing efficiency and reliability.
Its temperature range of -30°C to 120°C ensures performance in diverse conditions.
The ABEC 1 tolerance class guarantees consistent quality for general applications.
Its compact size (25 mm×62 mm×17 mm) makes it ideal for space-constrained installations.
Industrial Uses of 6305-2RS1/W64 Bearing
This bearing is commonly used in conveyor systems and electric motors, where its sealed design keeps out dust and debris. The solid oil lubrication ensures long service life even in demanding conditions.
Where Is 6305-2RS1/W64 Bearing Used?
You’ll find it in household appliances like washing machines and fans, where quiet operation matters. Its chrome steel construction handles everyday wear without fuss.
Built for Heavy-Duty Use: 6305-2RS1/W64 Bearing
In agricultural machinery, this model withstands radial loads from tillers and harvesters. The ABEC 1 tolerance offers reliable performance for routine farming tasks.
Automotive vs Industrial: Applications of 6305-2RS1/W64 Bearing
While it fits car alternators nicely, the bearing truly shines in factory pumps due to its -30°C to 120°C temperature range. The 17mm width suits compact spaces in both settings.
Perfect Fit for Automation: 6305-2RS1/W64 Bearing
Robotic arms benefit from its 11,000 rpm limit and consistent radial load capacity. The CN clearance provides just enough play for smooth articulated movements.
