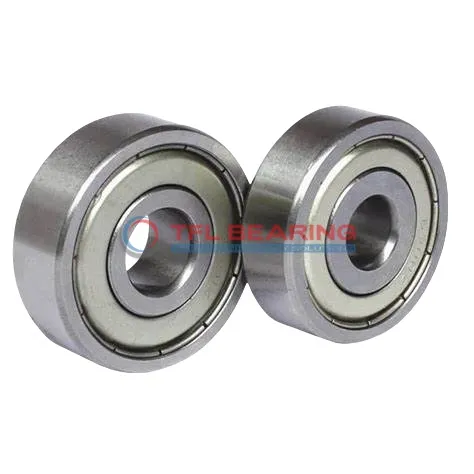

Single Row Deep Groove Ball Bearings 6302-2Z/VK285
Single Row Deep Groove Ball Bearings 6302-2Z/VK285

Single Row Deep Groove Ball Bearings 6302-2Z/VK285

The 6302-2Z/VK285 is a compact single-row deep groove ball bearing, measuring 15mm by 42mm by 13mm. Made from chrome steel, it offers reliable performance for radial loads up to 2563 lbf.

Its shielded design keeps out dust and debris, while the ABEC 1 tolerance ensures smooth operation. With a maximum speed of 17,000 RPM, it’s suitable for high-speed applications.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for electric motors, pumps, or small machinery where space is limited.

Weighing just 82g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6302-2Z/VK285
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g

Features

Why Choose 6302-2Z/VK285 Bearing for Precision Tasks?

6302-2Z/VK285 Bearing features a shielded design, protecting against dust and debris while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 2563 lbf, it handles demanding tasks with ease.
The bearing operates efficiently at speeds up to 17,000 rpm, making it suitable for high-performance uses.

Its compact size (15 mm×42 mm×13 mm) allows for easy integration into various machinery.
The ABEC 1 tolerance ensures reliable precision without unnecessary complexity.

Application

Common Applications of 6302-2Z/VK285 Bearing
In industrial settings, 6302-2Z/VK285 Bearing is widely used in electric motors and pumps due to its shielded design, which protects against dust and debris. Its chrome steel construction ensures durability in demanding environments.

Where Is 6302-2Z/VK285 Bearing Used?
You’ll often find 6302-2Z/VK285 Bearing in automotive applications like alternators and fans, where its radial load capacity and smooth operation are key. The metric sizing makes it a versatile fit for various vehicle models.

Built for Heavy-Duty Use: 6302-2Z/VK285 Bearing
This bearing excels in conveyor systems and agricultural machinery, handling radial loads with ease. Its ABEC 1 tolerance ensures reliable performance without unnecessary complexity.

Light-Duty vs Heavy-Duty: Best Uses for 6302-2Z/VK285 Bearing
For light-duty tasks, 6302-2Z/VK285 Bearing works well in household appliances like washing machines. In heavier applications, it supports machinery like compressors, thanks to its robust design.

Perfect Fit for Automation: 6302-2Z/VK285 Bearing
In robotic arms and automated systems, 6302-2Z/VK285 Bearing offers smooth rotation and low maintenance. Its shielded seals keep contaminants out, extending service life.
