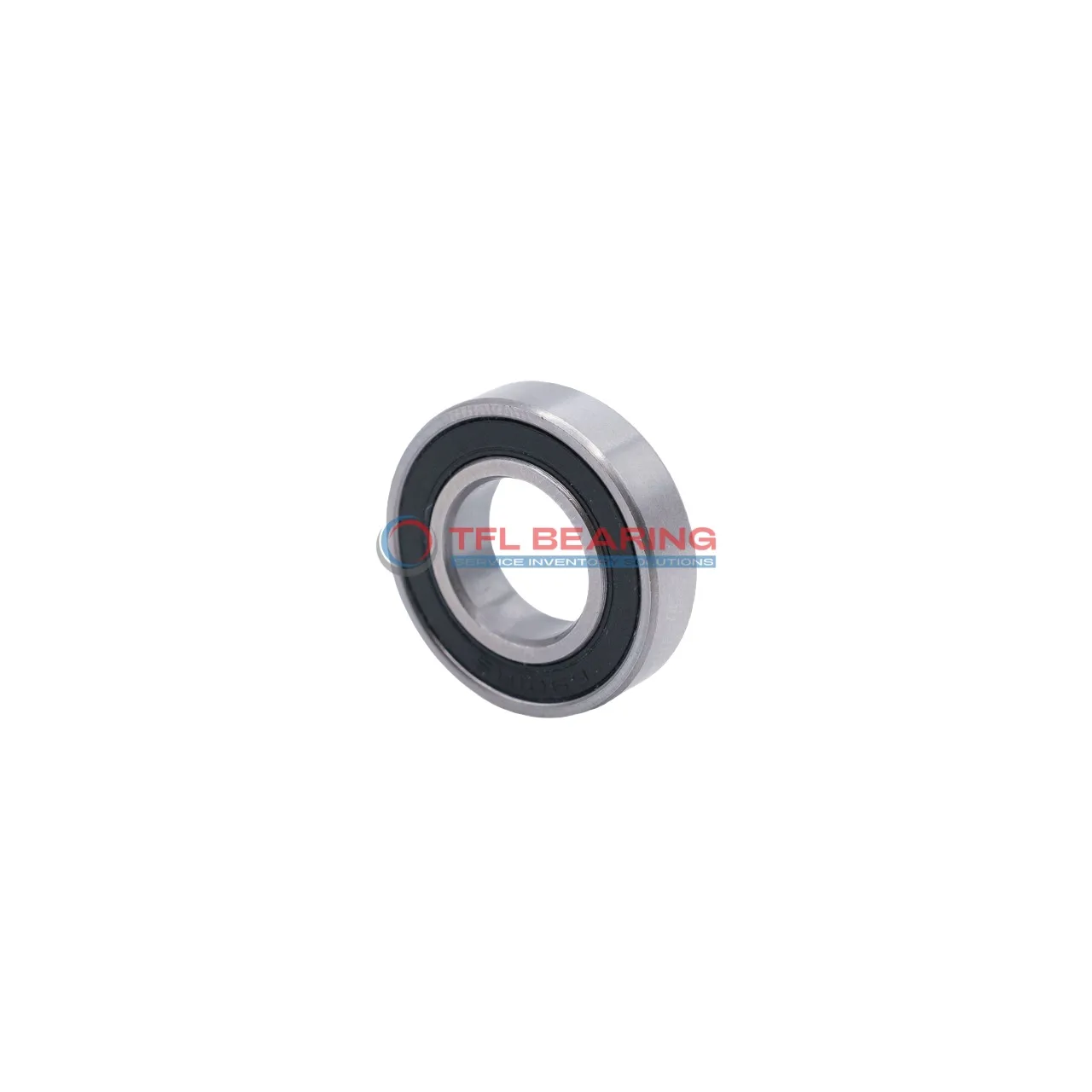

Single Row Deep Groove Ball Bearings 6301-RSH
Single Row Deep Groove Ball Bearings 6301-RSH

Single Row Deep Groove Ball Bearings 6301-RSH

The 6301-RSH is a compact single-row deep groove ball bearing, measuring 12mm by 37mm by 12mm, crafted from sturdy chrome steel for durability. It supports radial loads up to 2271 lbf and spins smoothly at speeds up to 14,000 RPM.

Its sealed design keeps out dust and dirt, while the stainless steel cage ensures reliable performance. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.062kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable option for various uses.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6301-RSH
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 933 lbf
  • Max Speed 14000 rpm
  • Weight 0.062 kg

Features

Why Choose 6301-RSH Bearing for Precision Tasks?

6301-RSH Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 2271 lbf, it handles demanding conditions reliably.
The P6 tolerance class guarantees precision, making it suitable for high-speed operations up to 14,000 rpm.

Its compact size (12 mm×37 mm×12 mm) allows easy integration into various machinery.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.

Application

Common Applications of 6301-RSH Bearing
The 6301-RSH Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep out contaminants. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 6301-RSH Bearing fits well in components like alternators and water pumps, providing smooth radial load support. The metric sizing makes it a versatile choice for various vehicle models.

For home appliances like washing machines, 6301-RSH Bearing offers reliable performance with minimal maintenance. The sealed design helps extend its lifespan even in high-moisture conditions.

Where Is 6301-RSH Bearing Used?
You’ll often find 6301-RSH Bearing in small machinery, such as conveyor systems, where its compact size and radial load capacity are ideal. The stainless steel cage adds extra resistance to wear.

In robotics, 6301-RSH Bearing supports precise movements in joints and actuators. Its sealed construction ensures consistent performance even in dusty or humid environments.

Built for Heavy-Duty Use: 6301-RSH Bearing
The 6301-RSH Bearing handles radial loads efficiently in industrial gearboxes, making it a go-to for machinery maintenance. Its chrome steel rings and balls provide long-lasting performance.

In agricultural equipment, 6301-RSH Bearing withstands rough conditions while keeping operations smooth. The sealed design prevents dirt and debris from affecting its function.

Light-Duty vs Heavy-Duty: Best Uses for 6301-RSH Bearing
For light-duty tasks like office printers, 6301-RSH Bearing ensures quiet and efficient operation. Its compact design fits seamlessly into small devices.

In heavier applications like conveyor belts, 6301-RSH Bearing’s robust construction handles continuous use without faltering. The sealed feature keeps it running smoothly even in harsh conditions.
