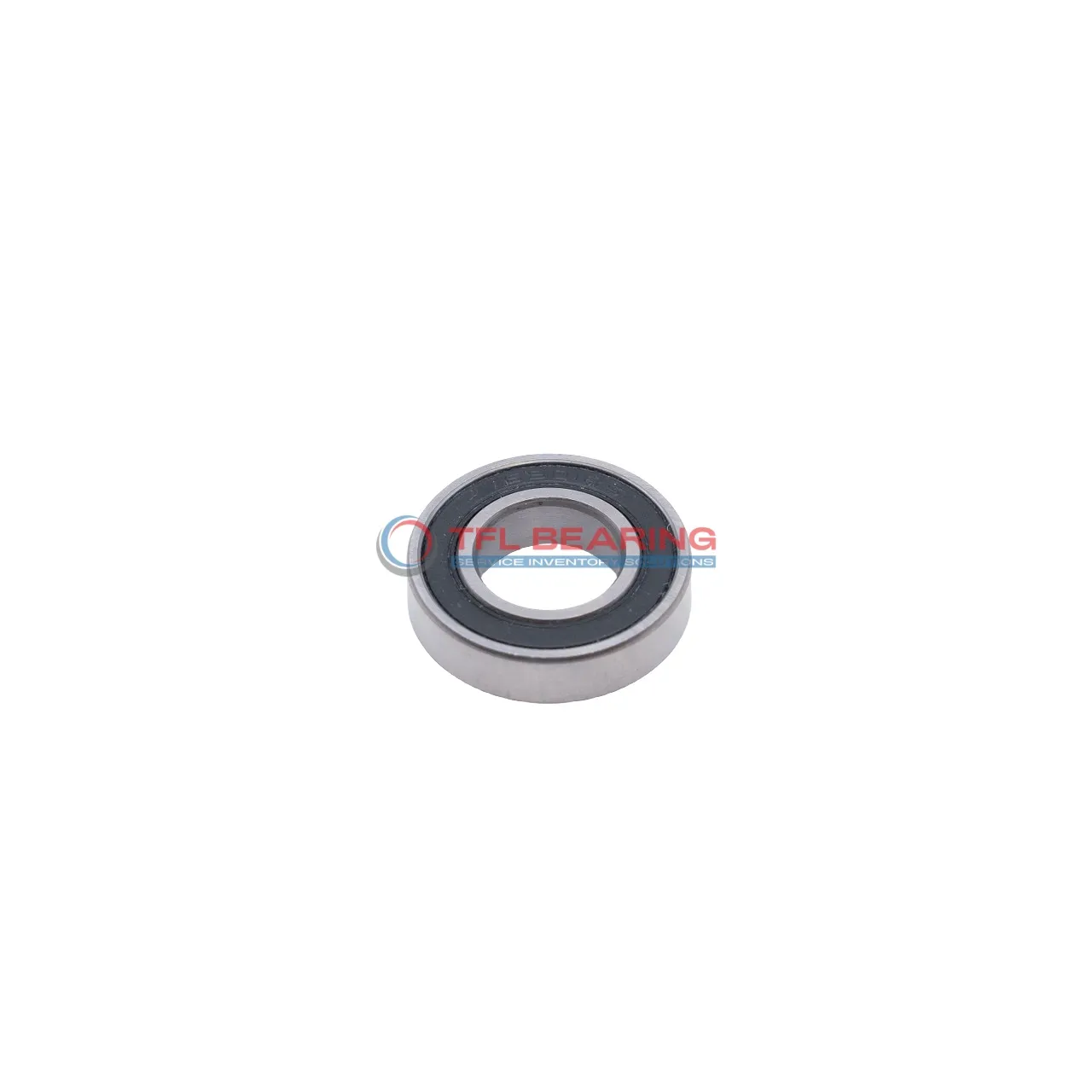

Single Row Deep Groove Ball Bearings 6301-2RSH
Single Row Deep Groove Ball Bearings 6301-2RSH

Single Row Deep Groove Ball Bearings 6301-2RSH

The 6301-2RSH is a compact single-row deep groove ball bearing, measuring 12mm in bore and 37mm in outer diameter, with a width of 12mm. Made from chrome steel, it’s built to handle radial loads up to 2271 lbf and speeds of 14000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The stainless steel cage adds strength, while the P6 tolerance ensures smooth operation.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for electric motors, pumps, or small machinery where reliability is key.

Weighing just 0.062kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6301-2RSH
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 933 lbf
  • Max Speed 14000 rpm
  • Weight 0.062 kg
  • price($) 3.339

Features

How Does 6301-2RSH Bearing Reduce Friction?

6301-2RSH Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction and grease lubrication minimise friction, ensuring quiet and efficient operation.

Chrome steel rings and balls enhance durability, while the stainless steel cage maintains alignment under load.
With a maximum speed of 14,000 rpm, it delivers reliable performance in various applications.

Its compact size (12 mm×37 mm×12 mm) makes it suitable for space-constrained installations.
The P6 tolerance class ensures precision, and the temperature range of -30° to 120°C adds versatility.

Application

Common Applications of 6301-2RSH Bearing
You’ll often spot 6301-2RSH Bearing in small electric motors, where its sealed design keeps dust out and grease in.
The compact 12mm bore makes it ideal for space-conscious applications like power tools or kitchen appliances.

Industrial Uses of 6301-2RSH Bearing
In conveyor systems, 6301-2RSH Bearing handles radial loads smoothly while the stainless steel cage resists corrosion.
The P6 tolerance ensures consistent performance in packaging machinery where precision matters.

Where Is 6301-2RSH Bearing Used?
Ever wondered what keeps office printers running quietly? 6301-2RSH Bearing often works in paper feed mechanisms.
Its grease lubrication and sealed construction mean less maintenance for busy work environments.

Built for Versatility: 6301-2RSH Bearing
From treadmill motors to drone propellers, 6301-2RSH Bearing adapts well to various speed requirements.
The chrome steel construction handles everyday wear while staying within budget-friendly price ranges.

Automotive vs Consumer Electronics: 6301-2RSH Bearing
In cars, you might find 6301-2RSH Bearing in auxiliary components like alternators or water pumps.
Meanwhile, its smaller versions power everything from computer fans to handheld gaming controllers.
