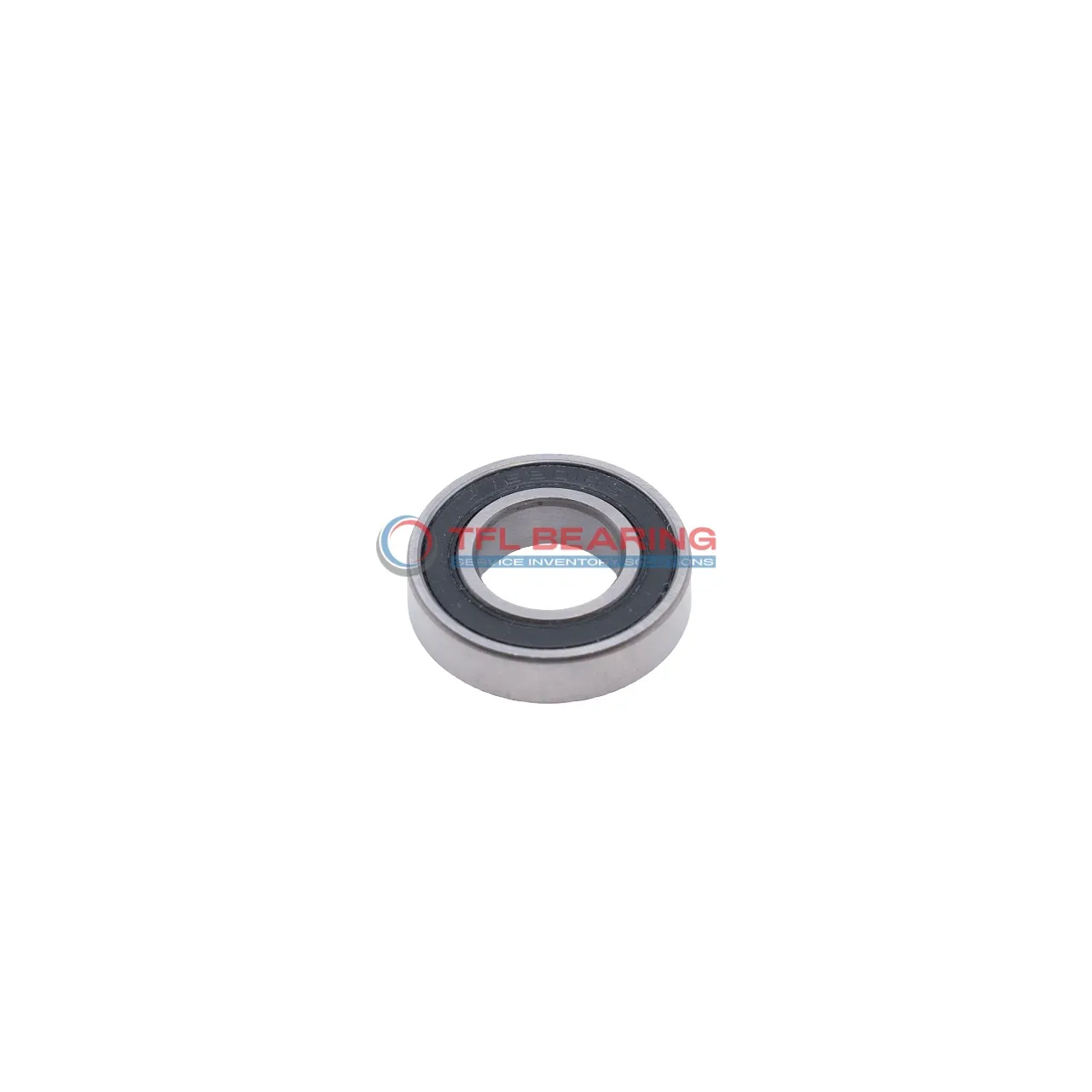

Single Row Deep Groove Ball Bearings 6301-2RS1/C4HVP207
Single Row Deep Groove Ball Bearings 6301-2RS1/C4HVP207

Single Row Deep Groove Ball Bearings 6301-2RS1/C4HVP207

The 6301-2RS1/C4HVP207 is a compact single-row deep groove ball bearing, measuring 12mm in bore and 37mm in outer diameter, with a width of 12mm. Made from durable chrome steel, it handles radial loads up to 2181 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C4 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for electric motors, pumps, or small machinery where space is limited but performance is key.

Weighing just 60g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6301-2RS1/C4HVP207
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2181 lbf
  • Static Radial Load 944 lbf
  • Max Speed 20000 rpm
  • Weight 60 g

Features

Performance Features of 6301-2RS1/C4HVP207 Bearing

6301-2RS1/C4HVP207 Bearing is designed for radial loads, with a dynamic radial load capacity of 2181 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.
The chrome steel rings and balls provide durability, while the C4 radial clearance allows for thermal expansion.
With a maximum speed of 20,000 rpm, it balances performance and longevity.

Application

Common Applications of 6301-2RS1/C4HVP207 Bearing
In industrial settings, 6301-2RS1/C4HVP207 Bearing is widely used in electric motors and pumps, thanks to its sealed design that keeps contaminants out. Its chrome steel construction ensures durability even in demanding environments.

Where Is 6301-2RS1/C4HVP207 Bearing Used?
You’ll often find 6301-2RS1/C4HVP207 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed protection are key. The C4 clearance also helps manage thermal expansion in high-speed scenarios.

Ideal for Precision: 6301-2RS1/C4HVP207 Bearing
For small machinery and appliances, 6301-2RS1/C4HVP207 Bearing offers reliable performance with minimal maintenance. Its compact size and sealed design make it a go-to choice for fans and power tools.

Automotive vs Industrial: Applications of 6301-2RS1/C4HVP207 Bearing
In cars, 6301-2RS1/C4HVP207 Bearing handles radial loads in components like belt tensioners, while in factories, it supports conveyor rollers. The versatility comes from its balanced load capacity and sealed protection.

Practical Applications of 6301-2RS1/C4HVP207 Bearing
Medical devices like dental drills benefit from 6301-2RS1/C4HVP207 Bearing’s smooth operation and contamination-resistant seals. The chrome steel materials ensure long service life even with frequent sterilisation.
