Single Row Deep Groove Ball Bearings 62304-2RS1
Single Row Deep Groove Ball Bearings 62304-2RS1

Single Row Deep Groove Ball Bearings 62304-2RS1

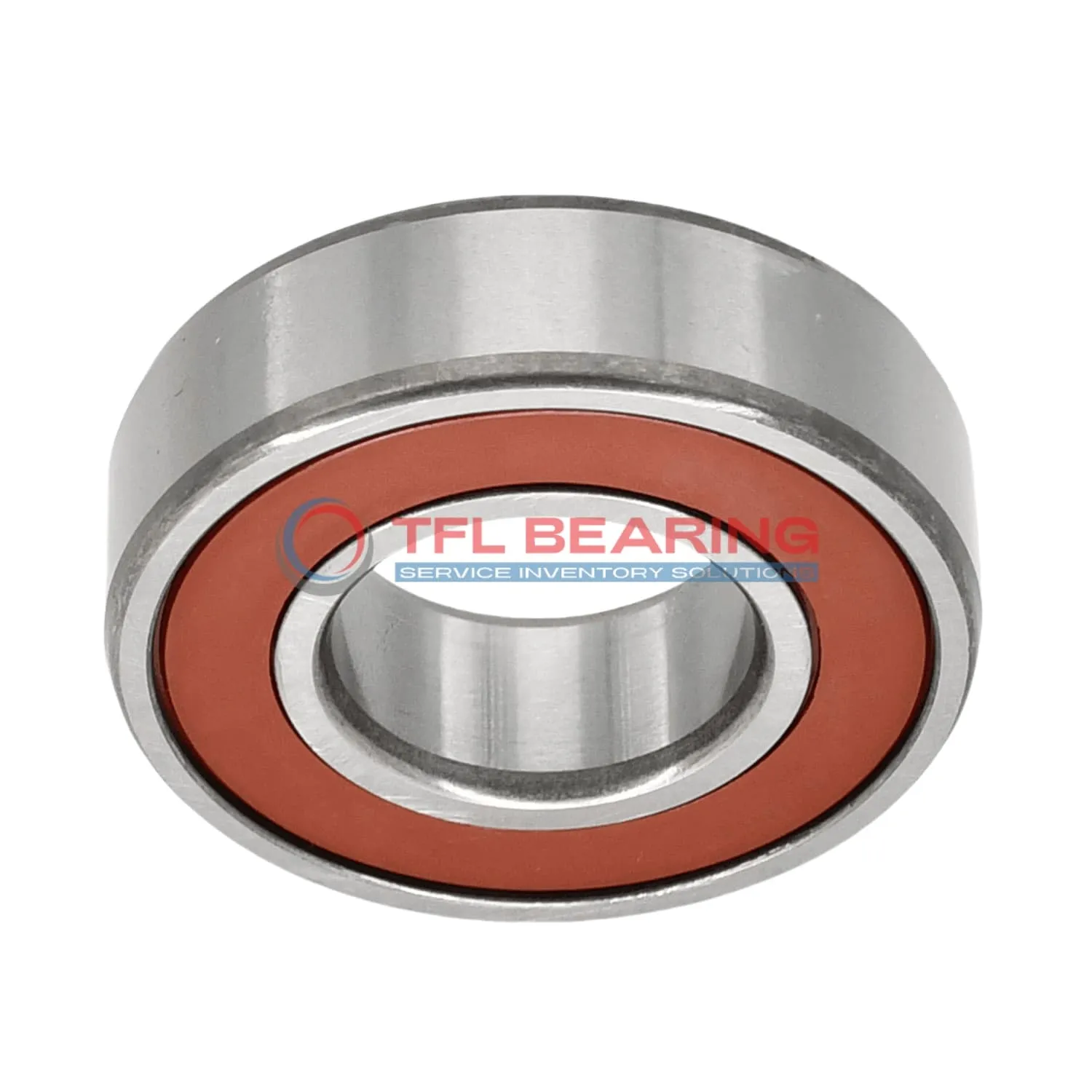

The 62304-2RS1 is a sealed single-row deep groove ball bearing with a 20mm bore and 52mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3574 lbf and spins smoothly at speeds up to 9500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance for long-term use. The stainless steel cage adds strength and durability, even in demanding conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for applications like electric motors or small machinery where radial loads and moderate speeds are common. Weighing 0.21kg, it’s a sturdy yet compact choice for industrial use. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 62304-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 21 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 1754 lbf
  • Max Speed 9500 rpm
  • Weight 0.21 kg
  • price($) 8.577

Features

Why Choose 62304-2RS1 Bearing for Precision Tasks?

62304-2RS1 Bearing is designed with a single row deep groove, ensuring smooth radial load handling.
The sealed construction protects against dust and moisture, making it suitable for various environments.

With chrome steel rings and balls, 62304-2RS1 Bearing offers strong resistance to wear.
Its dynamic radial load capacity of 3574 lbf ensures reliable performance in demanding applications.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
Operating at up to 9,500 rpm, it balances speed and durability for precision tasks.

Grease lubrication in 62304-2RS1 Bearing ensures consistent performance with minimal maintenance.
Its temperature range of -30° to 120°C makes it versatile for different working conditions.

Application

Common Applications of 62304-2RS1 Bearing
62304-2RS1 Bearing is widely used in industrial machinery, especially in electric motors and pumps where sealed protection against dust and moisture is needed. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 62304-2RS1 Bearing fits well in alternators and small gearboxes, providing smooth rotation under radial loads. The P6 tolerance class makes it suitable for precision automotive components.

For home appliances like washing machines, 62304-2RS1 Bearing offers quiet operation and long service life. The grease lubrication reduces maintenance needs, making it ideal for household devices.

In automation equipment, 62304-2RS1 Bearing supports robotic arms and conveyor systems with reliable performance. Its sealed design keeps contaminants out, ensuring consistent operation in busy production lines.
