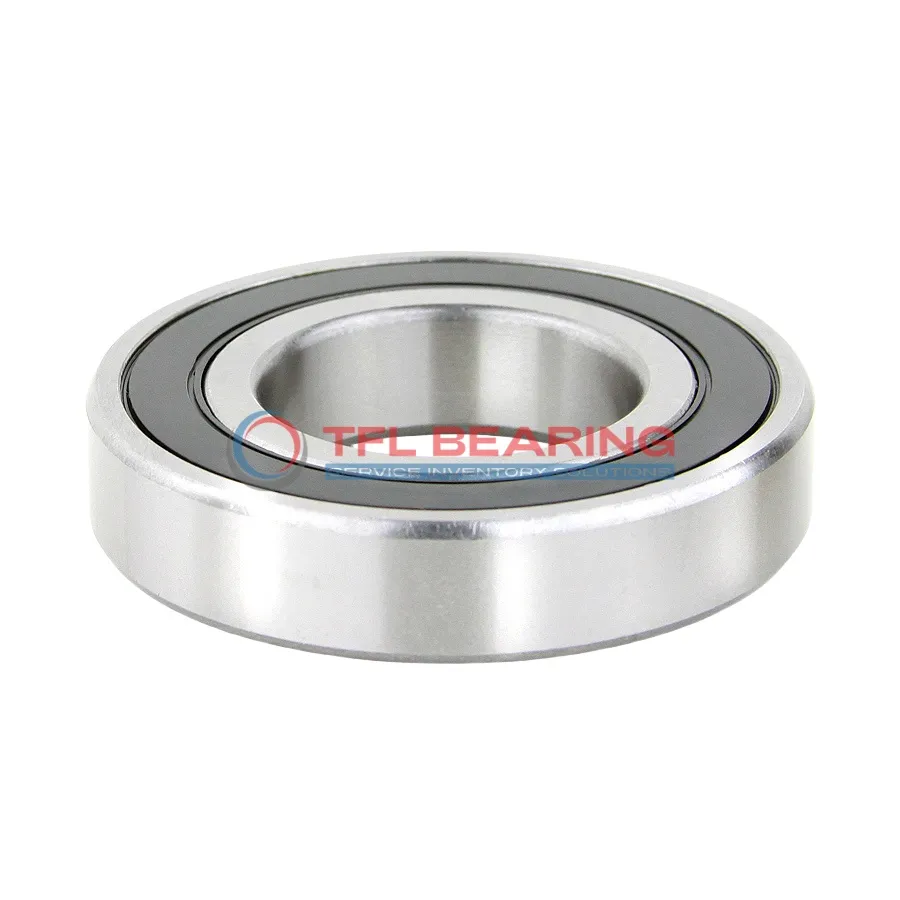

The 62302-2RS1/C3W64 is a compact single-row deep groove ball bearing, measuring 15mm by 42mm by 17mm. Made from durable chrome steel, it handles radial loads up to 2563 lbf and spins smoothly at speeds up to 12,000 RPM.
Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates well in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where reliable radial load support is needed.
Weighing just 0.11kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 62302-2RS1/C3W64 Bearing
62302-2RS1/C3W64 Bearing is designed with chrome steel rings and balls, ensuring durability and resistance to wear.
Its sealed construction keeps contaminants out, making it suitable for various environments.
The solid oil lubrication in 62302-2RS1/C3W64 Bearing reduces maintenance needs while ensuring smooth operation.
With a dynamic radial load capacity of 2563 lbf, it handles demanding radial loads effectively.
62302-2RS1/C3W64 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its maximum speed of 12,000 rpm makes it ideal for high-speed applications.
The C3 radial clearance in 62302-2RS1/C3W64 Bearing provides optimal performance under varying conditions.
Its compact size of 15 mm×42 mm×17 mm allows for easy integration into different machinery.
Common Applications of 62302-2RS1/C3W64 Bearing
In industrial settings, 62302-2RS1/C3W64 Bearing is commonly used in pumps and electric motors, thanks to its sealed design which keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.
Where Is 62302-2RS1/C3W64 Bearing Used?
You’ll often find 62302-2RS1/C3W64 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The C3 clearance also helps accommodate thermal expansion in high-speed scenarios.
Built for Heavy-Duty Use: 62302-2RS1/C3W64 Bearing
This bearing works well in agricultural machinery, such as harvesters, where its chrome steel construction handles tough conditions. The wide temperature range makes it suitable for both hot and cold operating environments.
Automotive vs Industrial: Applications of 62302-2RS1/C3W64 Bearing
In cars, 62302-2RS1/C3W64 Bearing supports smooth rotation in fans and small gearboxes, while in factories, it’s trusted for conveyor rollers. Its balanced performance makes it versatile across different load requirements.
