Single Row Deep Groove Ball Bearings 62301-2RS1/W64
Single Row Deep Groove Ball Bearings 62301-2RS1/W64

Single Row Deep Groove Ball Bearings 62301-2RS1/W64

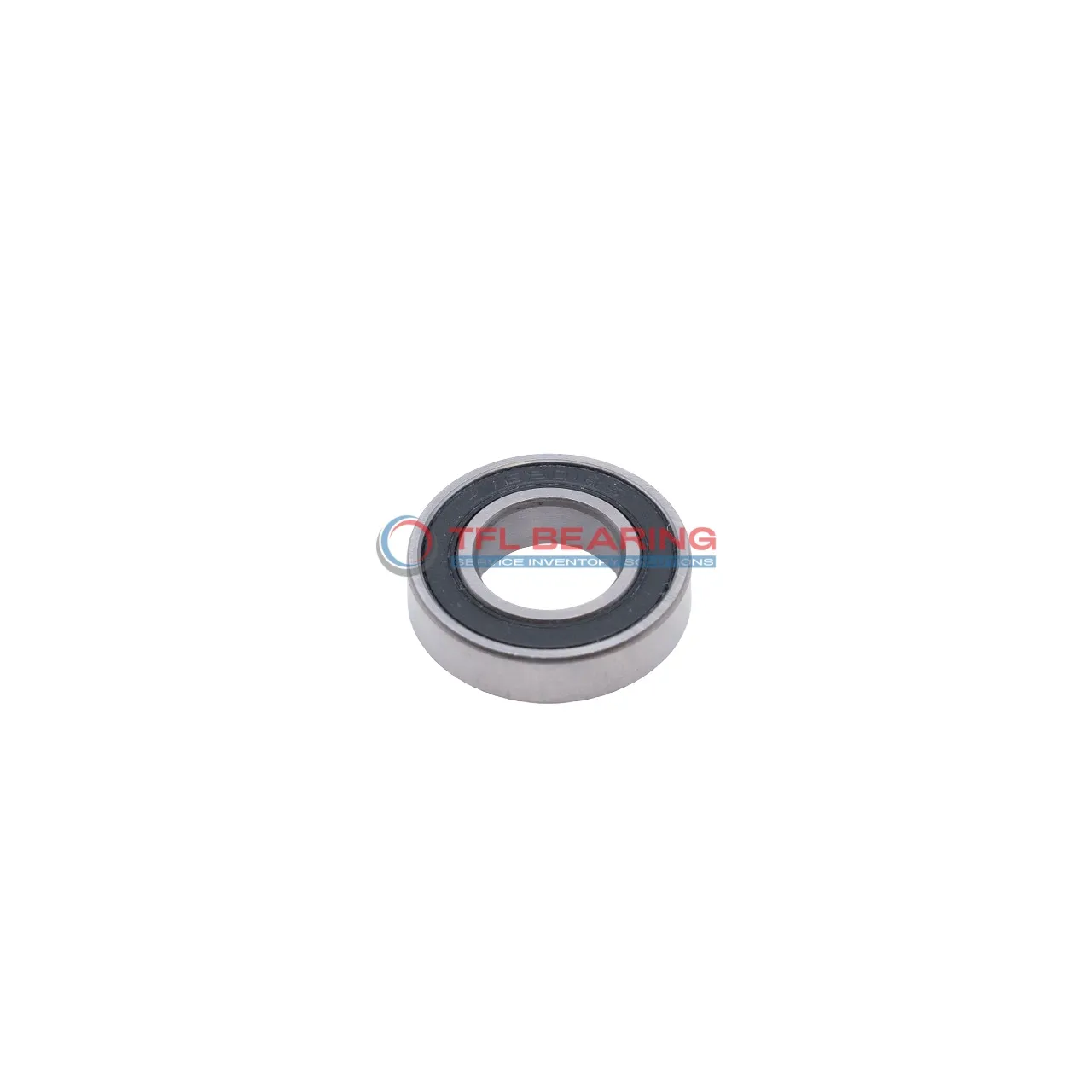

The 62301-2RS1/W64 is a compact single-row deep groove ball bearing, measuring 12mm by 37mm by 17mm, crafted from durable chrome steel. It handles radial loads up to 2192 lbf and spins smoothly at speeds up to 14,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance with minimal maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, pumps, or appliances where space is limited but reliability is key.

Weighing just 0.07kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 62301-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2192 lbf
  • Static Radial Load 933 lbf
  • Max Speed 14000 rpm
  • Weight 0.07 kg

Features

Why Choose 62301-2RS1/W64 Bearing for Precision Tasks?

62301-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, even in demanding conditions.
With a dynamic radial load capacity of 2192 lbf, it handles high-performance tasks with ease.
The bearing operates efficiently at speeds up to 14,000 rpm, making it suitable for precision instruments.

Application

Common Applications of 62301-2RS1/W64 Bearing
This bearing is widely used in industrial equipment like small electric motors and pumps, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

Where Is 62301-2RS1/W64 Bearing Used?
You’ll often find it in automotive applications such as alternators and cooling fans, thanks to its reliable radial load capacity. The chrome steel construction handles everyday wear without fuss.

Perfect Fit for Automation: 62301-2RS1/W64 Bearing
It’s a great match for robotic joints and conveyor systems, where smooth rotation matters. The ABEC 1 tolerance offers decent precision for most general-purpose uses.

Medical vs Industrial: Where 62301-2RS1/W64 Bearing Excels
While suitable for medical devices like small lab equipment, it really shines in industrial settings. The -30° to 120°C range covers most workshop conditions comfortably.

How Does 62301-2RS1/W64 Bearing Support High-Speed Operations?
With a max speed of 14,000 rpm, it works well in power tools and small machinery. The sealed design means less maintenance worry during continuous operation.
