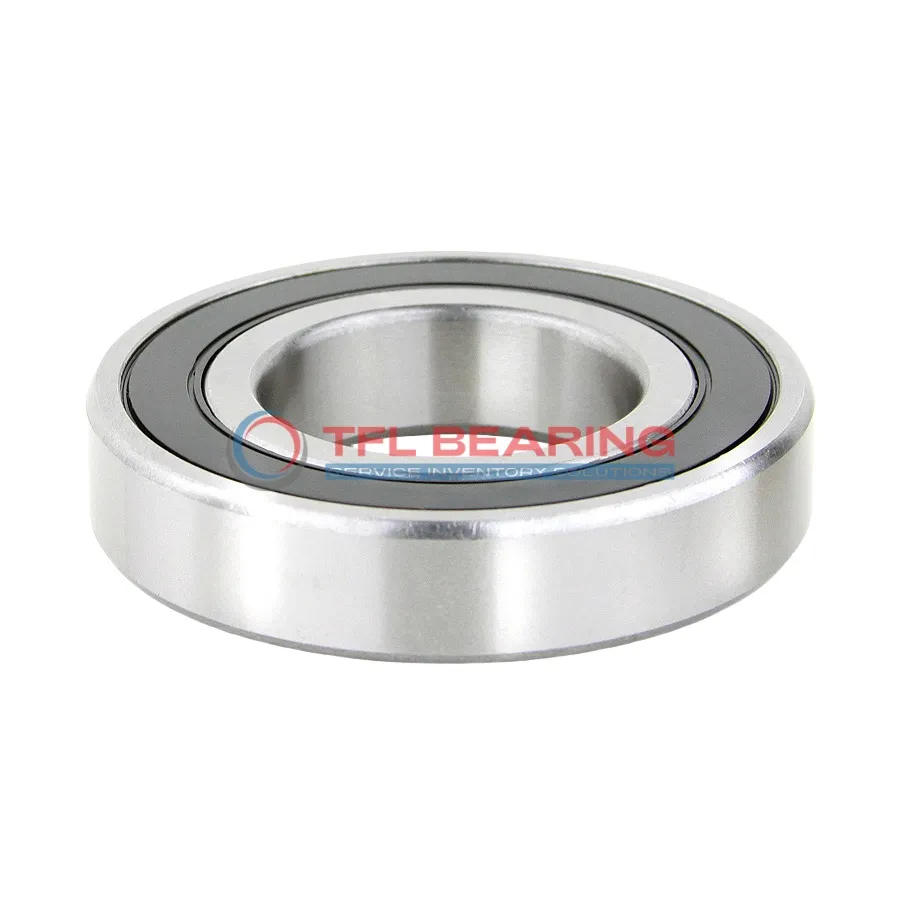

Single Row Deep Groove Ball Bearings 62202-2RS1/C3
Single Row Deep Groove Ball Bearings 62202-2RS1/C3

Single Row Deep Groove Ball Bearings 62202-2RS1/C3

The 62202-2RS1/C3 is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 14mm. Made from chrome steel, it handles radial loads up to 1754 lbf and spins smoothly at speeds up to 13,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for small motors, pumps, or appliances where reliable radial load support is needed.

Weighing just 0.054kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe, eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 62202-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1754 lbf
  • Static Radial Load 843 lbf
  • Max Speed 13000 rpm
  • Weight 0.054 kg
  • price($) 6.642

Features

Why Choose 62202-2RS1/C3 Bearing for Precision Tasks?

62202-2RS1/C3 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1754 lbf, it handles demanding conditions while maintaining smooth operation.
The bearing operates efficiently at speeds up to 13,000 rpm, making it suitable for high-speed applications.

Its C3 radial clearance provides optimal performance under varying temperature conditions.
The compact size (15 mm × 35 mm × 14 mm) allows for easy integration into different machinery setups.

Application

Industrial Uses of 62202-2RS1/C3 Bearing
The 62202-2RS1/C3 Bearing is commonly used in industrial machinery, such as conveyor belts and small electric motors, where its sealed design keeps out dust and debris. Its C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 62202-2RS1/C3 Bearing Used?
In automotive applications, 62202-2RS1/C3 Bearing fits well in components like alternators and water pumps, thanks to its reliable radial load capacity. The chrome steel construction also offers good resistance to wear in high-speed scenarios.

Perfect Fit for Automation: 62202-2RS1/C3 Bearing
For automated systems, 62202-2RS1/C3 Bearing works efficiently in robotic arms and small actuators, providing consistent performance. Its sealed design reduces maintenance needs, making it ideal for continuous operation.

Medical vs Industrial: Where 62202-2RS1/C3 Bearing Excels
In medical devices like small pumps or lab equipment, 62202-2RS1/C3 Bearing’s precision and sealed construction ensure hygiene and reliability. Meanwhile, in industrial settings, it handles radial loads effortlessly in compact machinery.

Key Fields for 62202-2RS1/C3 Bearing
The 62202-2RS1/C3 Bearing is a great choice for household appliances like washing machines, where its durability and sealed design prolong lifespan. Its metric sizing also makes it easy to replace in various European and Asian models.
