Single Row Deep Groove Ball Bearings 62201-2RS1/C3W64F
Single Row Deep Groove Ball Bearings 62201-2RS1/C3W64F

Single Row Deep Groove Ball Bearings 62201-2RS1/C3W64F

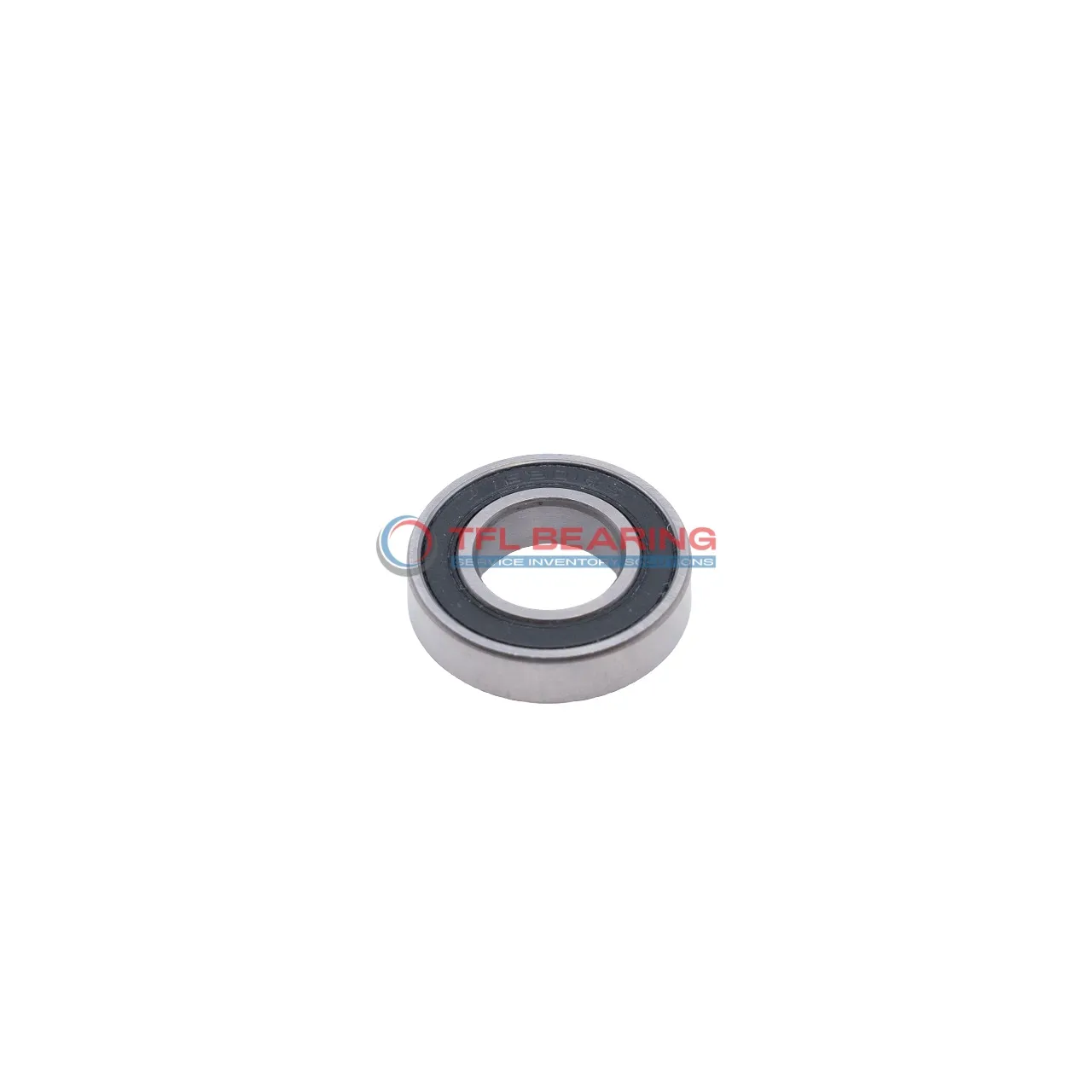

The 62201-2RS1/C3W64F is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 14mm, crafted from durable chrome steel. It handles radial loads up to 1549 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the solid oil ensures long-lasting performance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.045kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 62201-2RS1/C3W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1549 lbf
  • Static Radial Load 697 lbf
  • Max Speed 15000 rpm
  • Weight 0.045 kg
  • price($) 9.018

Features

How Does 62201-2RS1/C3W64F Bearing Reduce Friction?

62201-2RS1/C3W64F Bearing features a deep groove design, optimised for smooth radial load distribution.
The sealed construction and solid oil lubrication minimise friction, ensuring quiet operation.

Its chrome steel rings and balls enhance durability, even under high-speed conditions.
With a maximum speed of 15,000 rpm, it delivers reliable performance in various applications.

The C3 radial clearance allows for thermal expansion, maintaining efficiency in varying temperatures.
This design ensures long service life with minimal maintenance requirements.

Application

Industrial Uses of 62201-2RS1/C3W64F Bearing
This bearing is commonly used in conveyor systems, where its sealed design keeps out dust and debris. The solid oil lubrication ensures smooth operation even in demanding environments.

Where Is 62201-2RS1/C3W64F Bearing Used?
You’ll find it in electric motors, thanks to its ability to handle radial loads efficiently. The chrome steel construction offers durability, making it a reliable choice for continuous operation.

Built for Heavy-Duty Use: 62201-2RS1/C3W64F Bearing
It’s ideal for agricultural machinery, where the C3 clearance accommodates thermal expansion. The sealed design also protects against moisture, extending its lifespan.

Automotive vs Industrial: Applications of 62201-2RS1/C3W64F Bearing
In cars, it supports components like alternators, while in factories, it’s used in pumps. Its versatility and solid oil lubrication make it suitable for both settings.

Perfect Fit for Automation: 62201-2RS1/C3W64F Bearing
This bearing works well in robotic arms, where precision and reliability are key. The sealed design prevents contamination, ensuring consistent performance over time.
