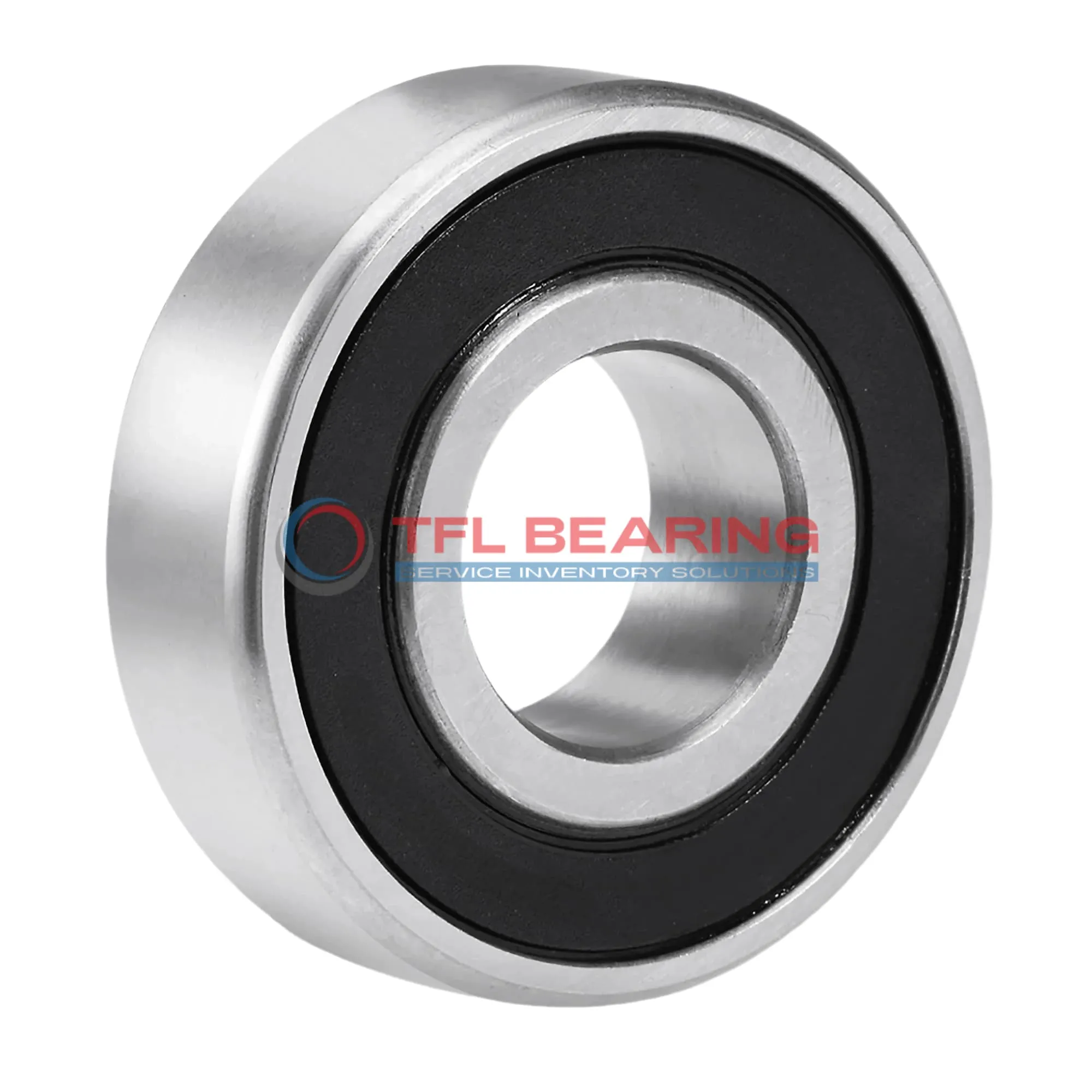

Single Row Deep Groove Ball Bearings 6215-2RS1/C3GJN
Single Row Deep Groove Ball Bearings 6215-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6215-2RS1/C3GJN

The 6215-2RS1/C3GJN is a single-row deep groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 15152 lbf and operates smoothly at speeds up to 4800 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for electric motors or pumps where consistent radial load support is needed.

Weighing 1170g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use in various industries.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6215-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Max Speed 4800 rpm
  • Weight 1170 g

Features

How Does 6215-2RS1/C3GJN Bearing Reduce Friction?

6215-2RS1/C3GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps contaminants out, ensuring consistent performance over time.

Made from chrome steel, 6215-2RS1/C3GJN Bearing resists wear and reduces friction during operation.
Its C3 radial clearance allows for thermal expansion, maintaining efficiency under varying conditions.

With a dynamic radial load capacity of 15152 lbf, 6215-2RS1/C3GJN Bearing handles demanding applications effortlessly.
The sealed design also minimises maintenance needs, saving time and costs.

Operating at temperatures from -30°C to 120°C, 6215-2RS1/C3GJN Bearing performs reliably in diverse environments.
Its maximum speed of 4,800 rpm ensures balanced performance for various industrial uses.

Application

Industrial Uses of 6215-2RS1/C3GJN Bearing
In conveyor systems, 6215-2RS1/C3GJN Bearing handles radial loads efficiently, thanks to its sealed design that keeps contaminants out. The chrome steel construction ensures longevity even in dusty environments.

Where Is 6215-2RS1/C3GJN Bearing Used?
You’ll often spot 6215-2RS1/C3GJN Bearing in electric motors, where its C3 clearance accommodates thermal expansion during prolonged use. It’s a reliable choice for maintaining smooth rotation under varying loads.

Built for Heavy-Duty Use: 6215-2RS1/C3GJN Bearing
6215-2RS1/C3GJN Bearing excels in agricultural machinery, where its sealed design protects against dirt and moisture. The robust chrome steel cage adds extra durability for tough field conditions.

Automotive vs Industrial: Applications of 6215-2RS1/C3GJN Bearing
In automotive water pumps, 6215-2RS1/C3GJN Bearing offers quiet operation, while in industrial fans, its high load capacity shines. The metric sizing makes it versatile for both sectors.

Perfect Fit for Automation: 6215-2RS1/C3GJN Bearing
6215-2RS1/C3GJN Bearing is ideal for robotic arms, where precision and low maintenance are key. The sealed design reduces lubrication needs, saving time in automated setups.
