Single Row Deep Groove Ball Bearings 6210-RS1/C3
Single Row Deep Groove Ball Bearings 6210-RS1/C3

Single Row Deep Groove Ball Bearings 6210-RS1/C3

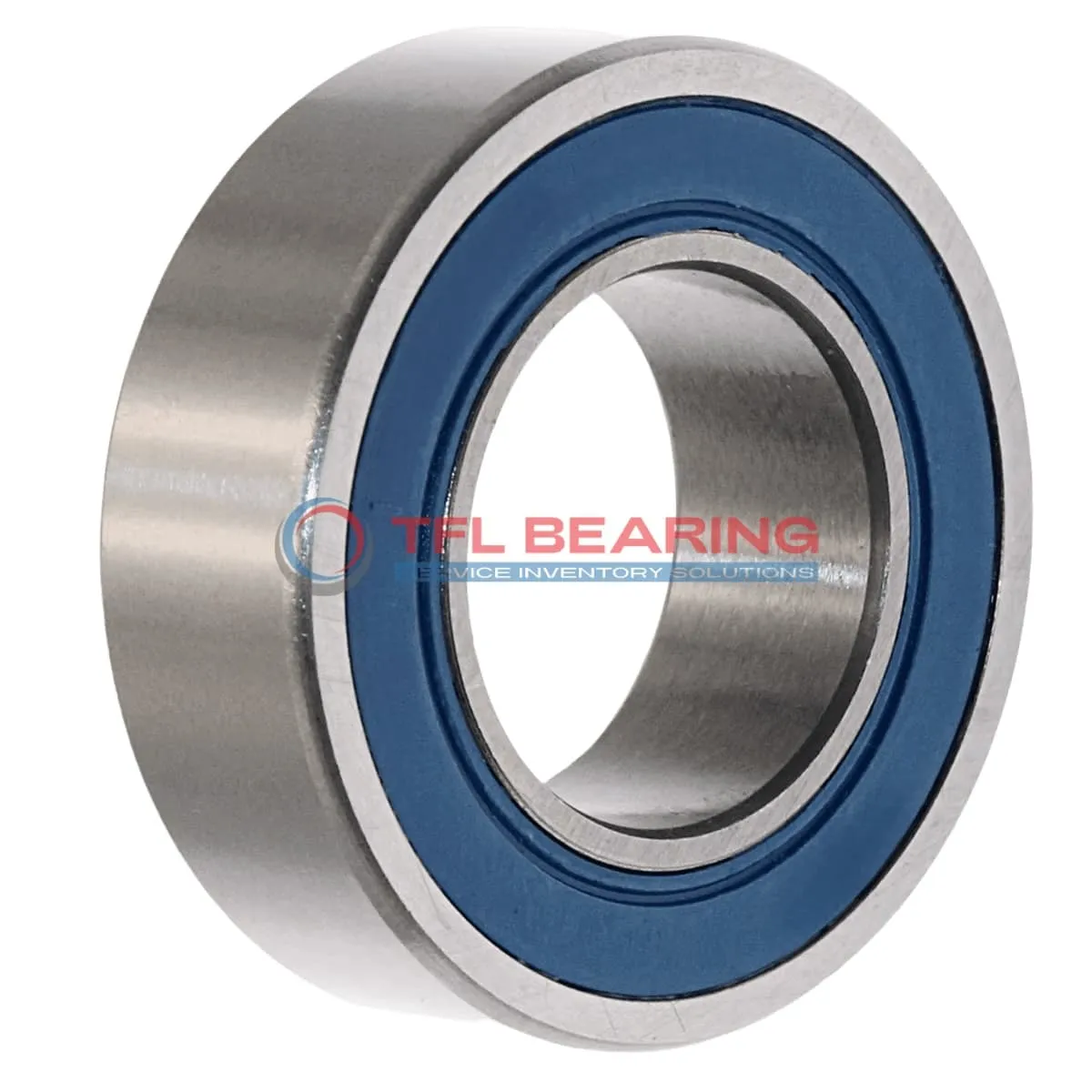

The 6210-RS1/C3 is a single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7891 lbf and operates smoothly at speeds up to 7100 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds durability, while the C3 radial clearance allows for slight thermal expansion.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial uses. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 463g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most applications. Ideal for electric motors or pumps where radial loads are common.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6210-RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7891 lbf
  • Static Radial Load 5238 lbf
  • Max Speed 7100 rpm
  • Weight 463 g
  • price($) 11.637

Features

How Does 6210-RS1/C3 Bearing Reduce Friction?

6210-RS1/C3 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads.

The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 7,100 rpm, it offers reliable efficiency for industrial applications.

The sealed design also minimises maintenance needs, making it a cost-effective choice.
Its static radial load capacity of 5238 lbf ensures durability in demanding conditions.

Application

Industrial Uses of 6210-RS1/C3 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 clearance makes it suitable for applications with moderate thermal expansion.

Where Is 6210-RS1/C3 Bearing Used?
You’ll often find 6210-RS1/C3 Bearing in automotive components such as alternators and water pumps. Its chrome steel construction ensures durability even under continuous radial loads.

Built for Heavy-Duty Use: 6210-RS1/C3 Bearing
In conveyor systems, 6210-RS1/C3 Bearing handles radial loads efficiently while maintaining smooth operation. The sealed design reduces maintenance needs in dusty environments.

Automotive vs Industrial: Applications of 6210-RS1/C3 Bearing
While 6210-RS1/C3 Bearing works well in car transmissions, it’s equally effective in industrial gearboxes. The metric sizing ensures compatibility across various equipment types.

Perfect Fit for Automation: 6210-RS1/C3 Bearing
Robotic arms often use 6210-RS1/C3 Bearing for its reliable performance in repetitive motion tasks. The ABEC 1 tolerance provides sufficient precision for most automated systems.
