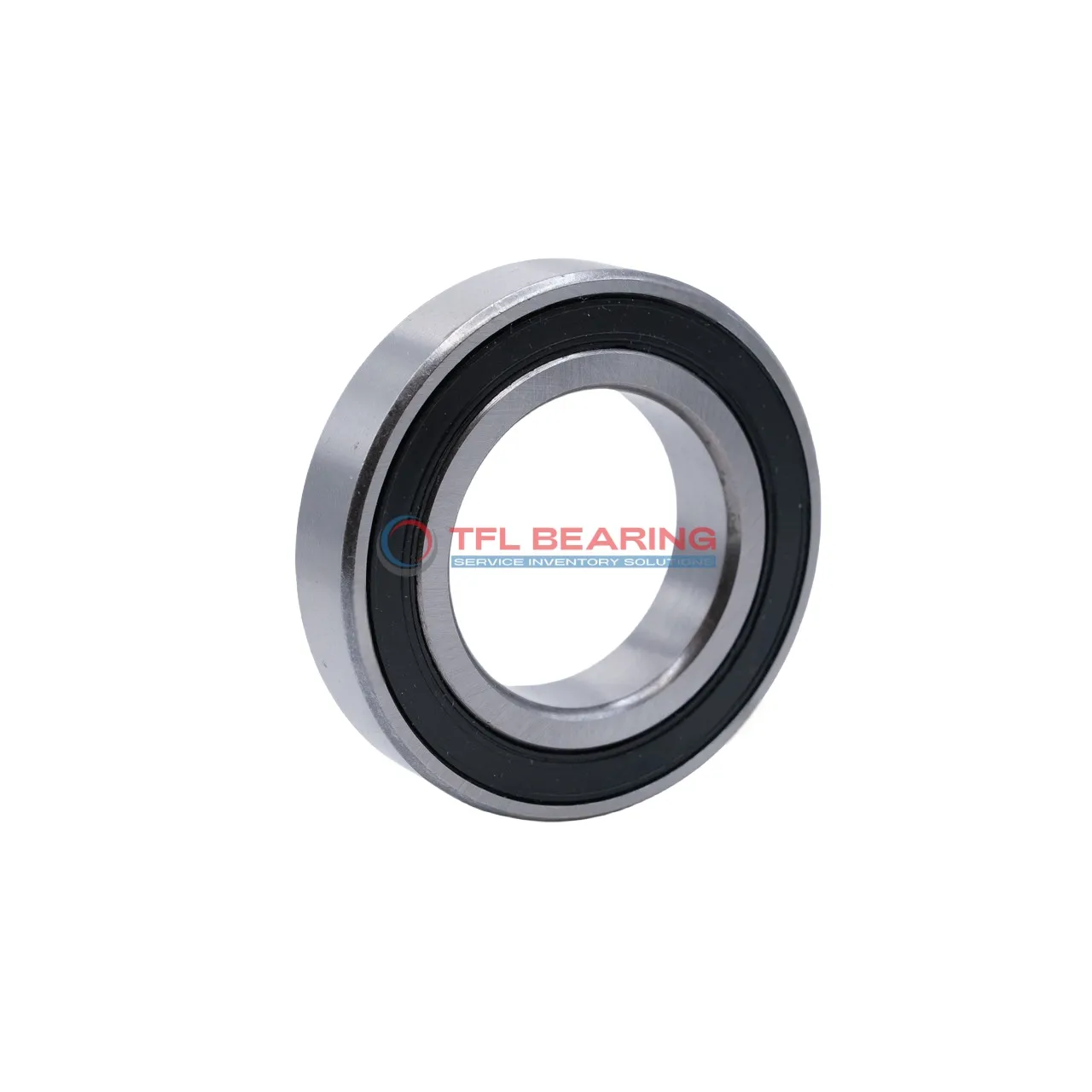

The 6208-2RS1/C3W64 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6542 lbf and spins smoothly at speeds up to 8300 RPM.
Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.
Weighing just 366g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 6208-2RS1/C3W64 Bearing
6208-2RS1/C3W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6542 lbf, ensuring reliable performance in various applications.
The sealed design of 6208-2RS1/C3W64 Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 8,300 rpm, it balances durability and efficiency for smooth operation.
Solid oil lubrication in 6208-2RS1/C3W64 Bearing reduces maintenance needs while ensuring consistent performance.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied temperature conditions.
6208-2RS1/C3W64 Bearing operates efficiently within a temperature range of -30°C to 120°C.
The chrome steel cage enhances stability, keeping the balls aligned for reduced wear.
Common Applications of 6208-2RS1/C3W64 Bearing
6208-2RS1/C3W64 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design protects against dust and moisture. The solid oil lubrication ensures long service life even in demanding conditions.
In automotive applications, 6208-2RS1/C3W64 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its C3 clearance allows for slight misalignments, making it adaptable to various vehicle designs.
For household appliances like washing machines, 6208-2RS1/C3W64 Bearing offers quiet and smooth operation. The chrome steel construction ensures durability, while the sealed design keeps contaminants out.
In automation systems, 6208-2RS1/C3W64 Bearing is often found in conveyor belts and robotic arms. Its high-speed capability and low maintenance needs make it a practical choice for continuous operation.
The 6208-2RS1/C3W64 Bearing also suits agricultural equipment, such as tractors and harvesters, where its robust design handles heavy loads. The temperature range ensures performance in both hot and cold environments.
