Single Row Deep Groove Ball Bearings 6206-2RS2/C3GJN
Single Row Deep Groove Ball Bearings 6206-2RS2/C3GJN

Single Row Deep Groove Ball Bearings 6206-2RS2/C3GJN

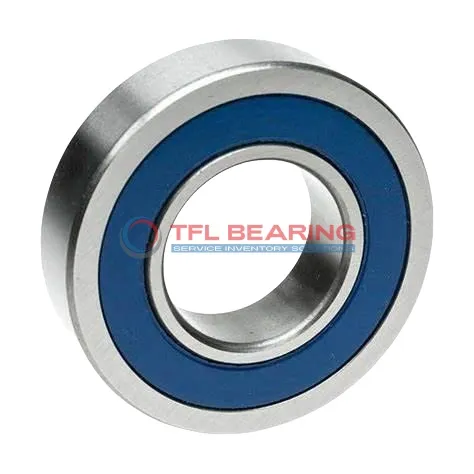

The 6206-2RS2/C3GJN is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4384 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 199g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6206-2RS2/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price($) 6.057

Features

How Does 6206-2RS2/C3GJN Bearing Reduce Friction?

6206-2RS2/C3GJN Bearing features a sealed design, preventing contaminants from entering and reducing friction.

Its chrome steel construction ensures smooth operation, even under dynamic radial loads up to 4384 lbf.

The C3 radial clearance allows for thermal expansion, maintaining performance in temperatures from -30° to 120°C.

With a maximum speed of 11,000 rpm, it offers reliable efficiency for various applications.

Application

Common Applications of 6206-2RS2/C3GJN Bearing
In industrial settings, 6206-2RS2/C3GJN Bearing is widely used in electric motors and pumps, thanks to its sealed design which keeps contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6206-2RS2/C3GJN Bearing Used?
You’ll often find 6206-2RS2/C3GJN Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel rings and balls provide long-lasting performance in these demanding environments.

Built for Heavy-Duty Use: 6206-2RS2/C3GJN Bearing
For household appliances like washing machines, 6206-2RS2/C3GJN Bearing offers reliable performance with minimal maintenance. Its sealed design and chrome steel cage make it a durable choice for high-speed rotations.

Automotive vs Industrial: Applications of 6206-2RS2/C3GJN Bearing
In both automotive and industrial gearboxes, 6206-2RS2/C3GJN Bearing handles radial loads efficiently. The ABEC 1 tolerance ensures consistent performance, whether in a car’s transmission or a factory conveyor system.
