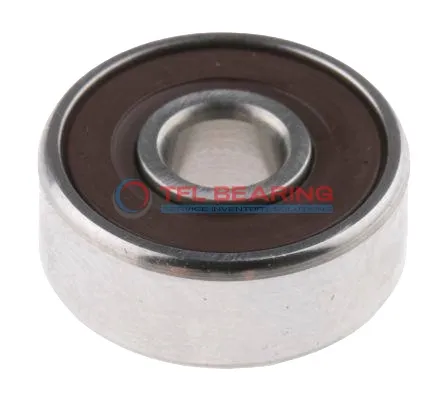

Single Row Deep Groove Ball Bearings 6205-2RSH
Single Row Deep Groove Ball Bearings 6205-2RSH

Single Row Deep Groove Ball Bearings 6205-2RSH

The 6205-2RSH is a sealed single-row deep groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3327 lbf and spins smoothly at speeds up to 8500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds strength and longevity, even in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where reliable radial load support is needed.

Weighing just 0.13kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use in various industries.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6205-2RSH
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 3327 lbf
  • Static Radial Load 1754 lbf
  • Max Speed 8500 rpm
  • Weight 0.13 kg
  • price($) 3.465

Features

How Does 6205-2RSH Bearing Reduce Friction?

6205-2RSH Bearing features a single-row deep groove design, optimised for smooth radial load distribution.

The sealed construction and grease lubrication minimise friction, ensuring quiet and efficient operation.

Made from chrome steel, it offers durability and resistance to wear in various applications.

With a maximum speed of 8,500 rpm, it balances performance and longevity.

Application

Where Is 6205-2RSH Bearing Used?
In industrial settings, 6205-2RSH Bearing is commonly fitted into pumps and electric motors, where its sealed design keeps contaminants out and extends service life. The chrome steel construction ensures it handles radial loads with ease.

For automotive applications, 6205-2RSH Bearing works well in alternators and wheel hubs, providing smooth rotation even under constant use. Its metric sizing makes it a versatile choice for various vehicle models.

In home appliances like washing machines, 6205-2RSH Bearing’s grease lubrication reduces noise and maintenance needs. The stainless steel cage adds durability, making it reliable for daily use.

Automation systems benefit from 6205-2RSH Bearing in conveyor belts and robotic arms, where precision and low friction are key. The P6 tolerance class ensures consistent performance in demanding environments.
