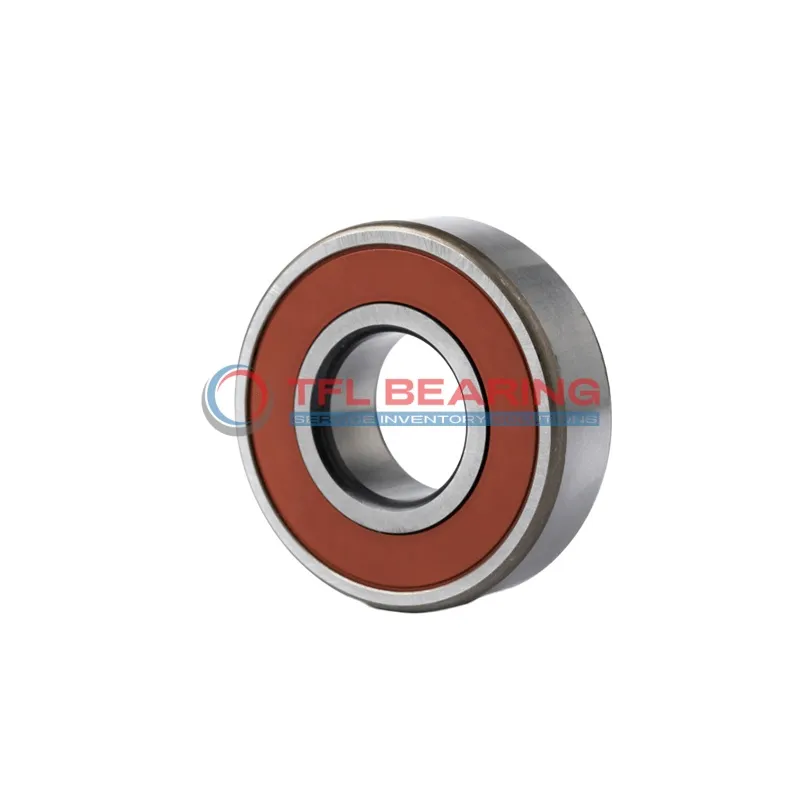

The 6203-2RSLTN9/C3VT162 is a compact single row deep groove ball bearing, measuring 17mm by 40mm by 12mm. Made from chrome steel with a nylon cage, it offers reliable performance for radial loads up to 2147 lbf.
Its sealed design keeps out dust and dirt, making it low-maintenance. The bearing can handle speeds up to 17,000 RPM and operates in temperatures from -30°C to 120°C.
With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. This model is interchangeable with SKF bearings, ensuring easy replacements.
Ideal for electric motors, pumps, or small machinery where space is limited. Compliant with RoHS and REACH standards, it’s a safe and durable choice for various applications.
"*" indicates required fields
Performance Features of 6203-2RSLTN9/C3VT162 Bearing
6203-2RSLTN9/C3VT162 Bearing is designed for radial loads, with a dynamic radial load capacity of 2147 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.
The chrome steel rings and balls provide durability, while the nylon cage reduces friction and noise.
With a maximum speed of 17,000 rpm, it offers reliable performance for high-speed applications.
Its C3 radial clearance allows for thermal expansion, making it suitable for a wide temperature range.
The compact size of 17 mm×40 mm×12 mm makes it easy to integrate into different systems.
Common Applications of 6203-2RSLTN9/C3VT162 Bearing
6203-2RSLTN9/C3VT162 Bearing is widely used in industrial equipment like conveyor belts and small electric motors, where its sealed design keeps out dust and debris. The nylon cage ensures smooth rotation, making it ideal for continuous operation.
In automotive applications, 6203-2RSLTN9/C3VT162 Bearing fits well in alternators and water pumps, handling radial loads with ease. Its C3 clearance allows for slight misalignments, common in vehicle systems.
For home appliances, this bearing is a reliable choice for washing machines and fans, thanks to its quiet operation and durability. The chrome steel construction ensures long service life even in daily use.
Automation systems benefit from 6203-2RSLTN9/C3VT162 Bearing’s precision, especially in robotic arms and small gearboxes. The ABEC 1 tolerance provides consistent performance without over-engineering.
