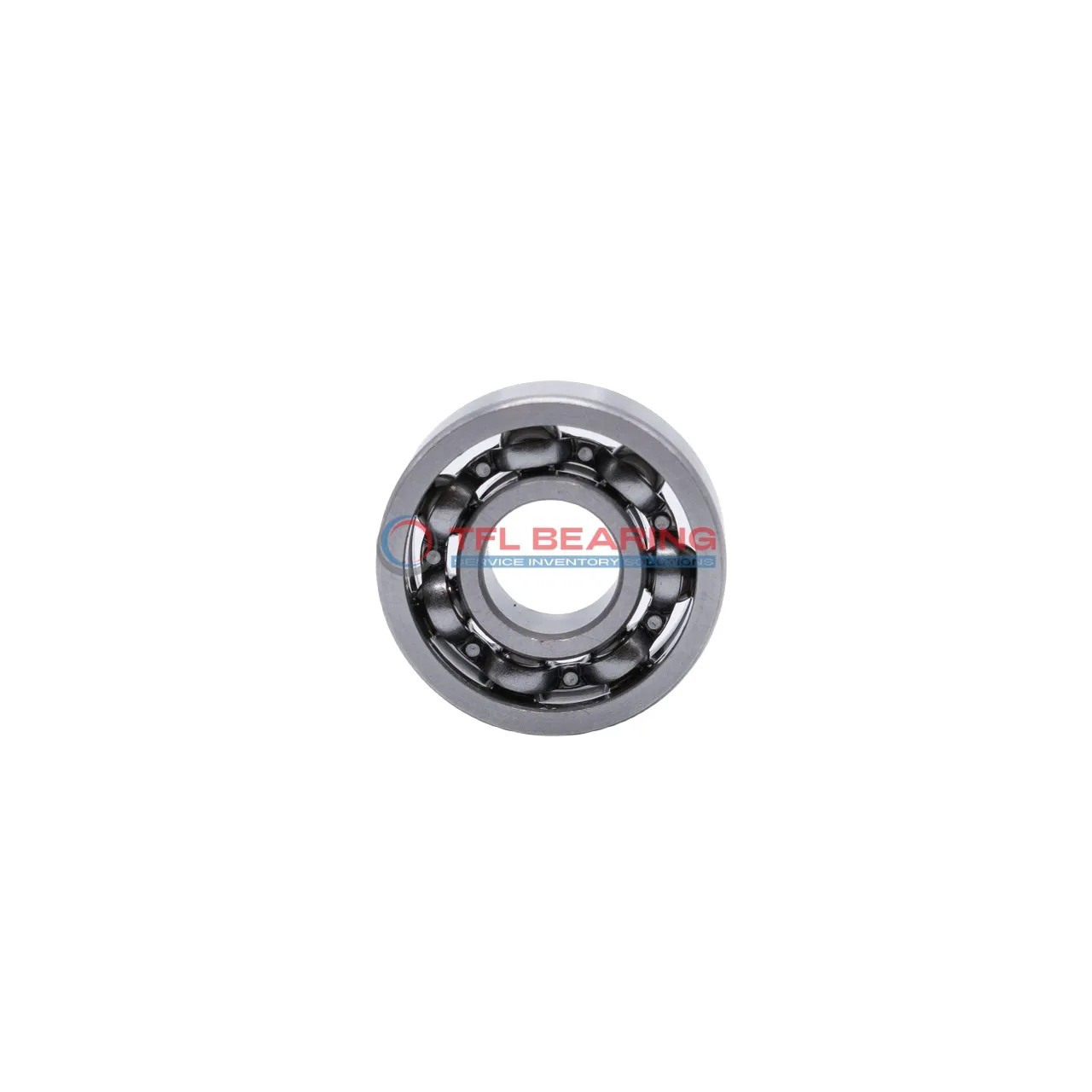

Single Row Deep Groove Ball Bearings 6202/VW514
Single Row Deep Groove Ball Bearings 6202/VW514

Single Row Deep Groove Ball Bearings 6202/VW514

The 6202/VW514 is a single row deep groove ball bearing with a 15mm bore and 35mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or small machinery where radial loads are common.

Weighing just 45g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6202/VW514
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g

Features

How Does 6202/VW514 Bearing Reduce Friction?

6202/VW514 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.

The chrome steel construction ensures durability while minimising friction during operation.

With a dynamic radial load capacity of 1812 lbf, it handles demanding applications efficiently.

Its open design allows for easy lubrication, further reducing wear and extending service life.

Operating at speeds up to 20,000 rpm, it balances performance and reliability.

Application

Industrial Uses of 6202/VW514 Bearing
6202/VW514 Bearing is commonly used in industrial machinery like electric motors and pumps, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6202/VW514 Bearing Used?
In automotive applications, 6202/VW514 Bearing fits well in alternators and small gearboxes, providing reliable performance under moderate loads. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Versatility: 6202/VW514 Bearing
For home appliances such as washing machines and fans, 6202/VW514 Bearing offers quiet and efficient operation. The chrome steel construction ensures durability even with frequent use.

Light-Duty vs Heavy-Duty: Best Uses for 6202/VW514 Bearing
In light-duty applications like office printers, 6202/VW514 Bearing delivers consistent performance with minimal maintenance. For heavier tasks, it’s also found in conveyor systems, handling radial loads effectively.
