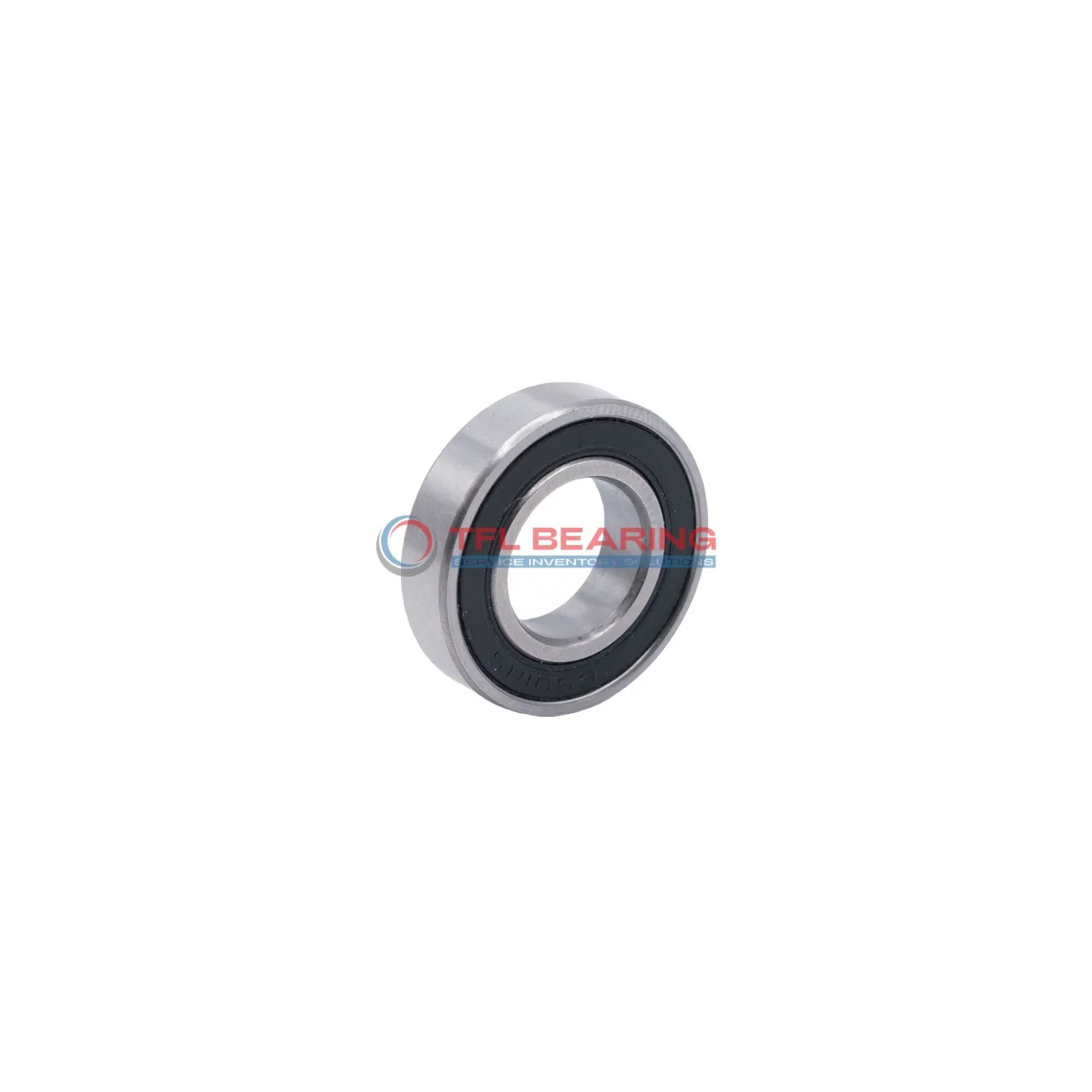

The 6202-2RSH/C3HT is a sealed single row deep groove ball bearing with a 15mm bore and 35mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and can spin at speeds up to 20,000 RPM.
Its sealed design keeps out dust and moisture, making it low-maintenance, while the C3 radial clearance allows for thermal expansion. The bearing operates smoothly in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, offering a cost-effective alternative. It’s ideal for electric motors, pumps, or small machinery where reliability is key.
Weighing just 45g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.
"*" indicates required fields
Performance Features of 6202-2RSH/C3HT Bearing
6202-2RSH/C3HT Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1812 lbf, ensuring reliable performance in various applications.
The sealed design of 6202-2RSH/C3HT Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 20,000 rpm, it delivers smooth and efficient operation.
6202-2RSH/C3HT Bearing operates in temperatures from -30°C to 120°C, making it suitable for diverse environments.
Its C3 radial clearance ensures optimal performance under varying thermal conditions.
The compact size of 6202-2RSH/C3HT Bearing (15 mm×35 mm×11 mm) allows for easy integration into different machinery.
Its lightweight design at 45 g reduces overall system weight without compromising durability.
6202-2RSH/C3HT Bearing’s ABEC 1 tolerance class guarantees consistent precision in radial applications.
The chrome steel cage maintains ball alignment, reducing friction and wear.
Common Applications of 6202-2RSH/C3HT Bearing
In industrial settings, 6202-2RSH/C3HT Bearing works well in electric motors and pumps, thanks to its sealed design that keeps contaminants out. The C3 clearance ensures smooth operation even with thermal expansion.
Where Is 6202-2RSH/C3HT Bearing Used?
You’ll often find 6202-2RSH/C3HT Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel build adds durability for long-term use.
Perfect Fit for Automation: 6202-2RSH/C3HT Bearing
For robotic arms and conveyor systems, 6202-2RSH/C3HT Bearing offers reliable performance with minimal maintenance. Its high-speed capability (up to 20,000 rpm) makes it suitable for precision movements.
Light-Duty vs Heavy-Duty: Best Uses for 6202-2RSH/C3HT Bearing
In light-duty applications like small fans, 6202-2RSH/C3HT Bearing provides quiet operation, while its robust design handles heavier loads in machinery. The wide temperature range (-30° to 120°C) adds versatility.
Essential Roles of 6202-2RSH/C3HT Bearing
Medical devices like centrifuges benefit from 6202-2RSH/C3HT Bearing’s consistent performance and low friction. The sealed design also helps maintain hygiene in sensitive environments.
