Single Row Deep Groove Ball Bearings 6201/VK016
Single Row Deep Groove Ball Bearings 6201/VK016

Single Row Deep Groove Ball Bearings 6201/VK016

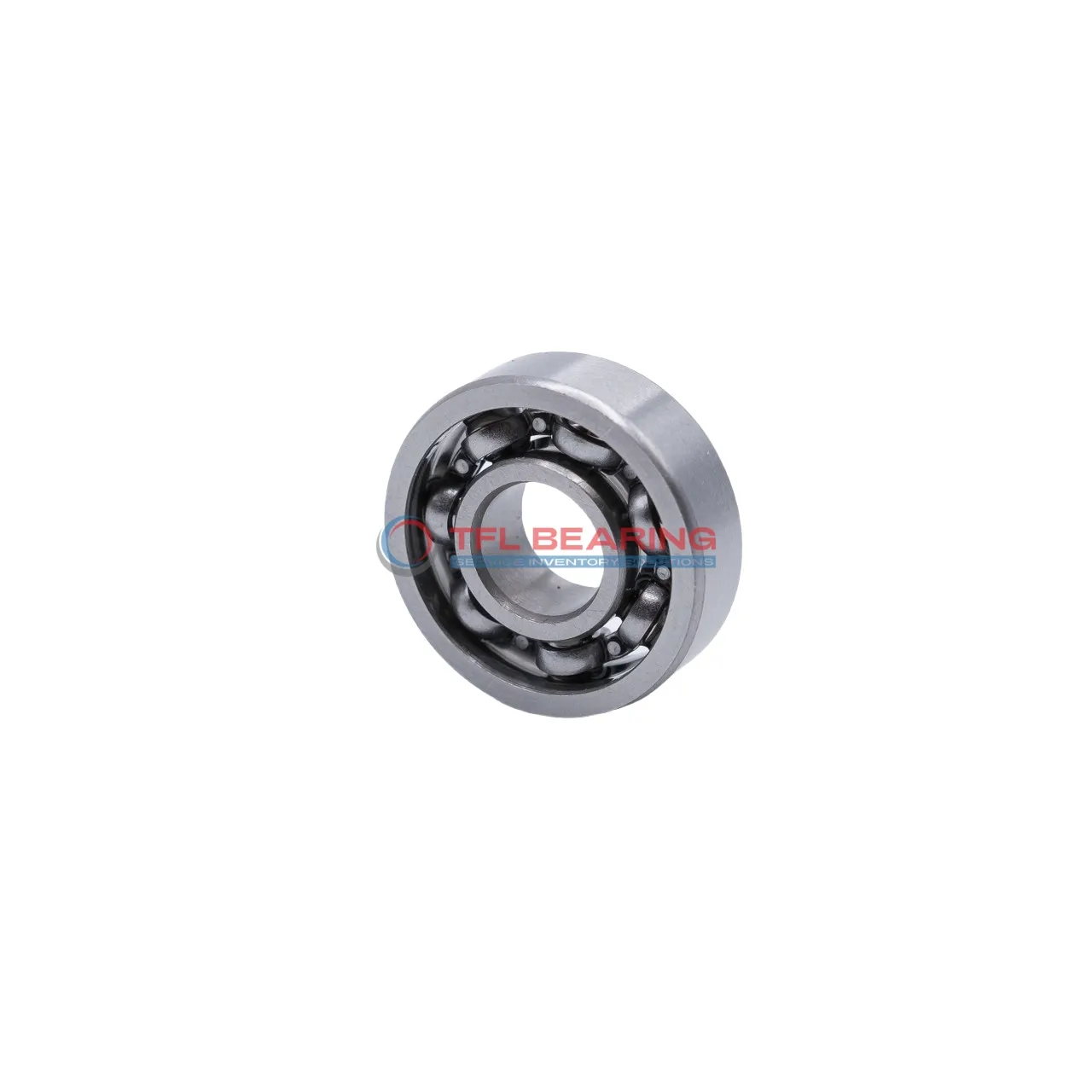

The 6201/VK016 is a compact single row deep groove ball bearing, measuring 12mm in bore and 32mm in outer diameter, with a width of 10mm. Made from durable chrome steel, it handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22,000 RPM.

Its open design allows for easy maintenance, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s suitable for applications like electric motors or small machinery where radial loads are common.

Weighing just 37g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6201/VK016
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g

Features

Performance Features of 6201/VK016 Bearing

6201/VK016 Bearing is crafted with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 1529 lbf ensures steady performance in various applications.
The open design allows for easy maintenance and lubrication, enhancing its longevity.
With a maximum speed of 22,000 rpm, it delivers efficient operation in high-speed settings.

Application

Common Applications of 6201/VK016 Bearing
In industrial settings, 6201/VK016 Bearing is commonly used in electric motors and pumps, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6201/VK016 Bearing Used?
You’ll often find 6201/VK016 Bearing in automotive applications like alternators and water pumps, thanks to its balanced load handling and high-speed capability. Its metric sizing makes it a versatile fit for various vehicle models.

Ideal for Precision: 6201/VK016 Bearing
For medical devices such as dental drills, 6201/VK016 Bearing offers smooth operation due to its chrome steel construction. The ABEC 1 tolerance ensures consistent performance in precision-driven environments.

Automotive vs Industrial: Applications of 6201/VK016 Bearing
In automotive systems, 6201/VK016 Bearing supports components like fans and pulleys, while in industrial machinery, it’s favoured for conveyor rollers. Its durability and ease of maintenance make it a practical choice across sectors.

Practical Applications of 6201/VK016 Bearing
In household appliances like washing machines, 6201/VK016 Bearing provides quiet and efficient operation. The wide temperature range also makes it suitable for both indoor and outdoor use.
