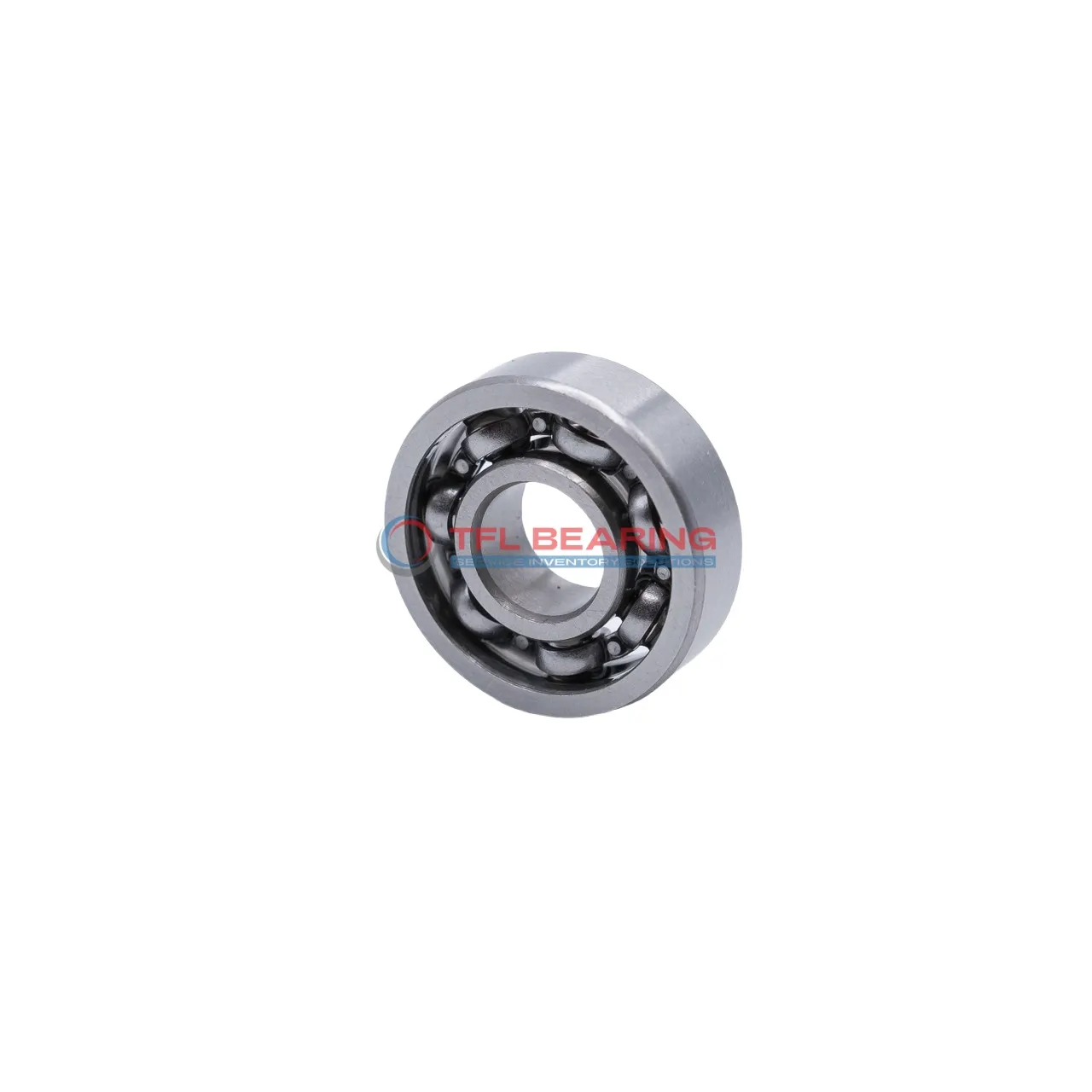

Single Row Deep Groove Ball Bearings 6201/MT
Single Row Deep Groove Ball Bearings 6201/MT

Single Row Deep Groove Ball Bearings 6201/MT

The 6201/MT is a compact single row deep groove ball bearing, measuring 12mm by 32mm by 10mm, crafted from durable chrome steel. It handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures reliable performance. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 37g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6201/MT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g

Features

Performance Features of 6201/MT Bearing

6201/MT Bearing is crafted with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 1529 lbf ensures steady performance in various applications.
The open design allows for easy lubrication, enhancing its operational efficiency.
With a maximum speed of 22,000 rpm, it delivers a balance of speed and durability.

Why Choose 6201/MT Bearing for Precision Tasks?

6201/MT Bearing’s single row deep groove design ensures precise radial load distribution.
The chrome steel construction provides resistance to wear, maintaining accuracy over time.
Its ABEC 1 tolerance class guarantees consistent performance in precision applications.
Operating within a temperature range of -30° to 120°C, it adapts to diverse environments.

Engineered for Efficiency: 6201/MT Bearing

6201/MT Bearing’s lightweight design at 37 g reduces energy consumption in high-speed operations.
The chrome steel cage keeps the balls aligned, minimising friction and noise.
Its static radial load capacity of 686 lbf ensures stability during start-up and shutdown.
The open seal type simplifies maintenance, lowering long-term operational costs.

Steel vs Ceramic Bearings: Strengths of 6201/MT Bearing

6201/MT Bearing’s chrome steel construction offers a cost-effective solution without compromising performance.
It provides excellent durability and load capacity compared to ceramic alternatives.
The material choice ensures compatibility with standard industrial lubrication practices.
With a wide temperature range, it outperforms many ceramic bearings in extreme conditions.

Application

Common Applications of 6201/MT Bearing
In industrial settings, 6201/MT Bearing is a go-to for radial load support in machinery like pumps and electric motors. Its open design simplifies lubrication, ensuring smooth operation in demanding environments.

Where Is 6201/MT Bearing Used?
You’ll often spot 6201/MT Bearing in automotive applications, such as alternators and small gearboxes, where its compact size and reliability shine. The chrome steel construction handles everyday wear with ease.

Ideal for Precision: 6201/MT Bearing
For medical devices like dental drills, 6201/MT Bearing offers quiet, consistent performance. Its ISO P0 tolerance ensures precision, while the wide temperature range suits various clinical settings.

Automotive vs Industrial: Applications of 6201/MT Bearing
In cars, 6201/MT Bearing keeps alternators running smoothly, while in factories, it’s trusted for conveyor rollers. The metric sizing makes it versatile across different equipment types.

Practical Applications of 6201/MT Bearing
From household appliances like washing machines to office printers, 6201/MT Bearing delivers reliable radial load support. Its lightweight design (37g) is perfect for space-constrained applications.
