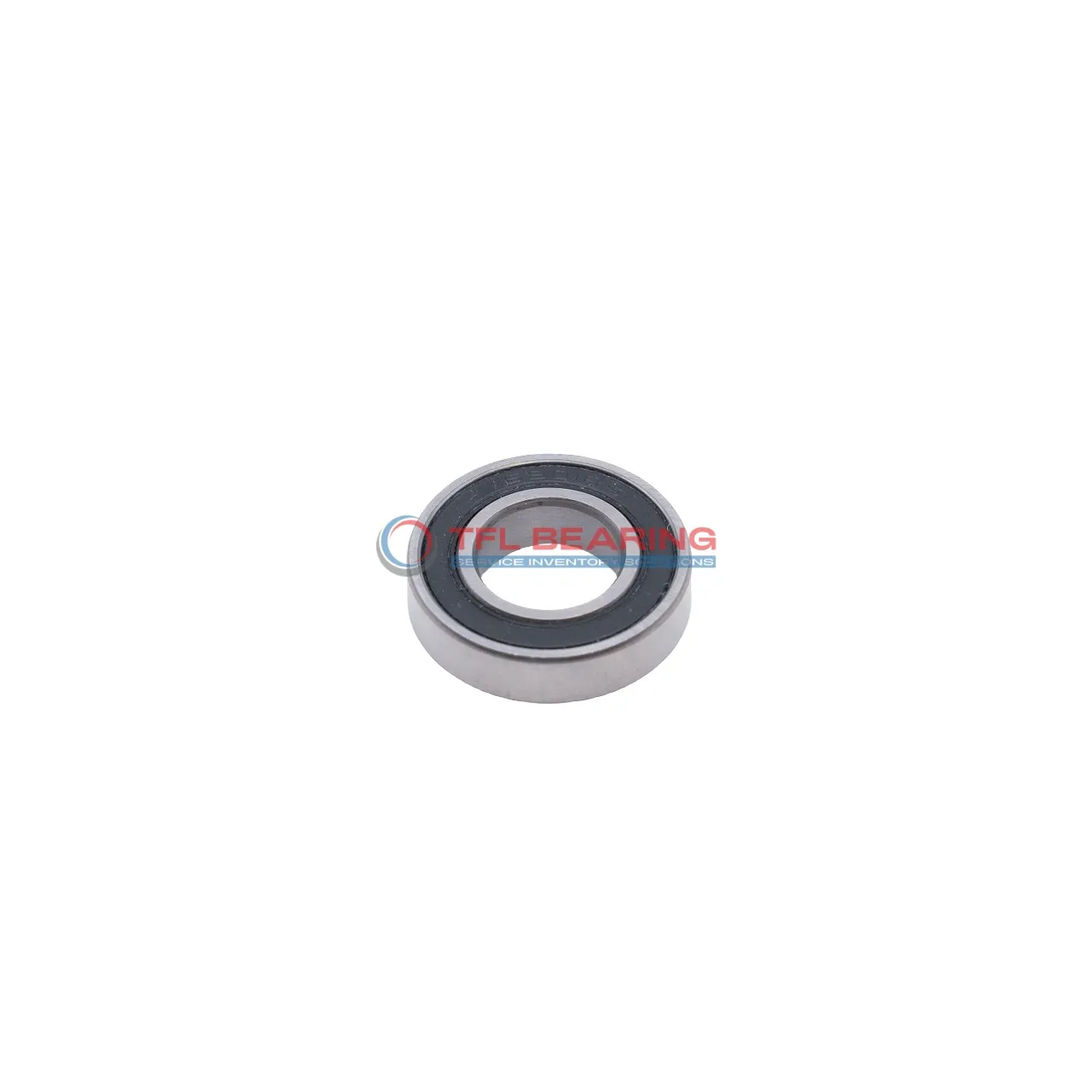

Single Row Deep Groove Ball Bearings 6201-2RS2/LHT23
Single Row Deep Groove Ball Bearings 6201-2RS2/LHT23

Single Row Deep Groove Ball Bearings 6201-2RS2/LHT23

The 6201-2RS2/LHT23 is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm, crafted from durable chrome steel. Its sealed design keeps out dust and dirt, making it low-maintenance for everyday use.

This bearing handles radial loads up to 1529 lbf and can spin at speeds up to 22,000 RPM, suitable for high-speed applications. The chrome steel cage adds strength and longevity, even in demanding conditions.

With a temperature range of -30°C to 120°C, it performs well in various environments. The ABEC 1 tolerance ensures reliable precision for most general-purpose needs.

Ideal for electric motors, pumps, or small machinery where smooth rotation is key. It’s interchangeable with SKF bearings, offering a cost-effective replacement option. Compliant with RoHS and REACH standards for safety and environmental care.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6201-2RS2/LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g

Features

Performance Features of 6201-2RS2/LHT23 Bearing

6201-2RS2/LHT23 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1529 lbf, ensuring reliable performance in various applications.

The sealed design of 6201-2RS2/LHT23 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 22,000 rpm, it delivers smooth and efficient operation.

6201-2RS2/LHT23 Bearing operates in temperatures from -30°C to 120°C, making it versatile for different environments.
Its compact size (12 mm×32 mm×10 mm) allows for easy integration into various machinery.

The chrome steel cage ensures proper ball alignment, reducing wear and extending service life.
This bearing is compliant with RoHS and REACH standards, ensuring environmental safety.

Application

Where Is 6201-2RS2/LHT23 Bearing Used?
You’ll often spot 6201-2RS2/LHT23 Bearing in small electric motors, thanks to its compact 12 mm bore and sealed design. It’s a reliable choice for keeping dust and moisture out while handling moderate radial loads.

In household appliances like washing machines, 6201-2RS2/LHT23 Bearing ensures smooth rotation for drum assemblies. Its chrome steel construction offers durability even with frequent use and varying temperatures.

For light industrial gear like pumps or conveyors, 6201-2RS2/LHT23 Bearing provides steady performance without needing frequent maintenance. The sealed design helps extend its lifespan in dusty or humid environments.

Automotive accessories such as alternators also benefit from 6201-2RS2/LHT23 Bearing’s balanced load capacity and speed tolerance. It’s a practical fit for components requiring consistent rotation over long periods.
