Single Row Deep Groove Ball Bearings 6201-2RS1N/C3 HT51
Single Row Deep Groove Ball Bearings 6201-2RS1N/C3 HT51

Single Row Deep Groove Ball Bearings 6201-2RS1N/C3 HT51

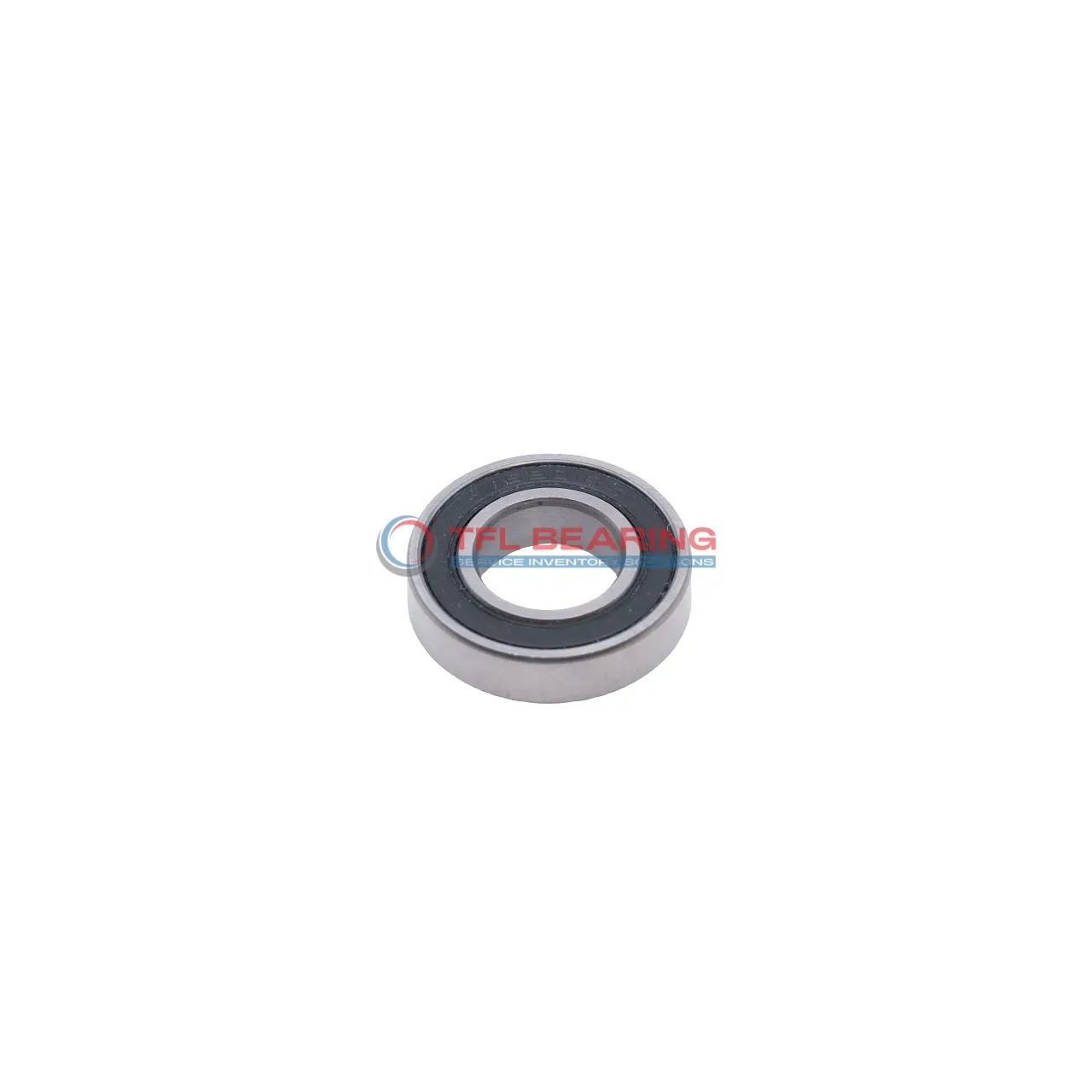

The 6201-2RS1N/C3 HT51 is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm. Made from durable chrome steel, it handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for electric motors, pumps, or small machinery where reliability is key.

Weighing just 37g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6201-2RS1N/C3 HT51
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g
  • price($) 1.962

Features

Performance Features of 6201-2RS1N/C3 HT51 Bearing

6201-2RS1N/C3 HT51 Bearing is designed for radial loads, with a dynamic radial load capacity of 1529 lbf.

Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls enhance durability, while the C3 radial clearance allows for thermal expansion.

With a maximum speed of 22,000 rpm, it offers reliable performance in high-speed applications.

Application

Common Applications of 6201-2RS1N/C3 HT51 Bearing
In industrial settings, 6201-2RS1N/C3 HT51 Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6201-2RS1N/C3 HT51 Bearing Used?
You’ll often find 6201-2RS1N/C3 HT51 Bearing in automotive applications like alternators and cooling fans, thanks to its balanced radial load capacity. The chrome steel construction provides good wear resistance for long-lasting use.

Ideal for Precision: 6201-2RS1N/C3 HT51 Bearing
For small machinery and appliances, 6201-2RS1N/C3 HT51 Bearing offers smooth operation with minimal maintenance. Its compact size and sealed design make it a practical choice for tight spaces.

Automotive vs Industrial: Applications of 6201-2RS1N/C3 HT51 Bearing
In cars, 6201-2RS1N/C3 HT51 Bearing handles radial loads in components like belt tensioners, while in factories, it supports conveyor rollers. The temperature range of -30°C to 120°C ensures versatility across environments.
