Single Row Deep Groove Ball Bearings 6201-2RS1/VK285
Single Row Deep Groove Ball Bearings 6201-2RS1/VK285

Single Row Deep Groove Ball Bearings 6201-2RS1/VK285

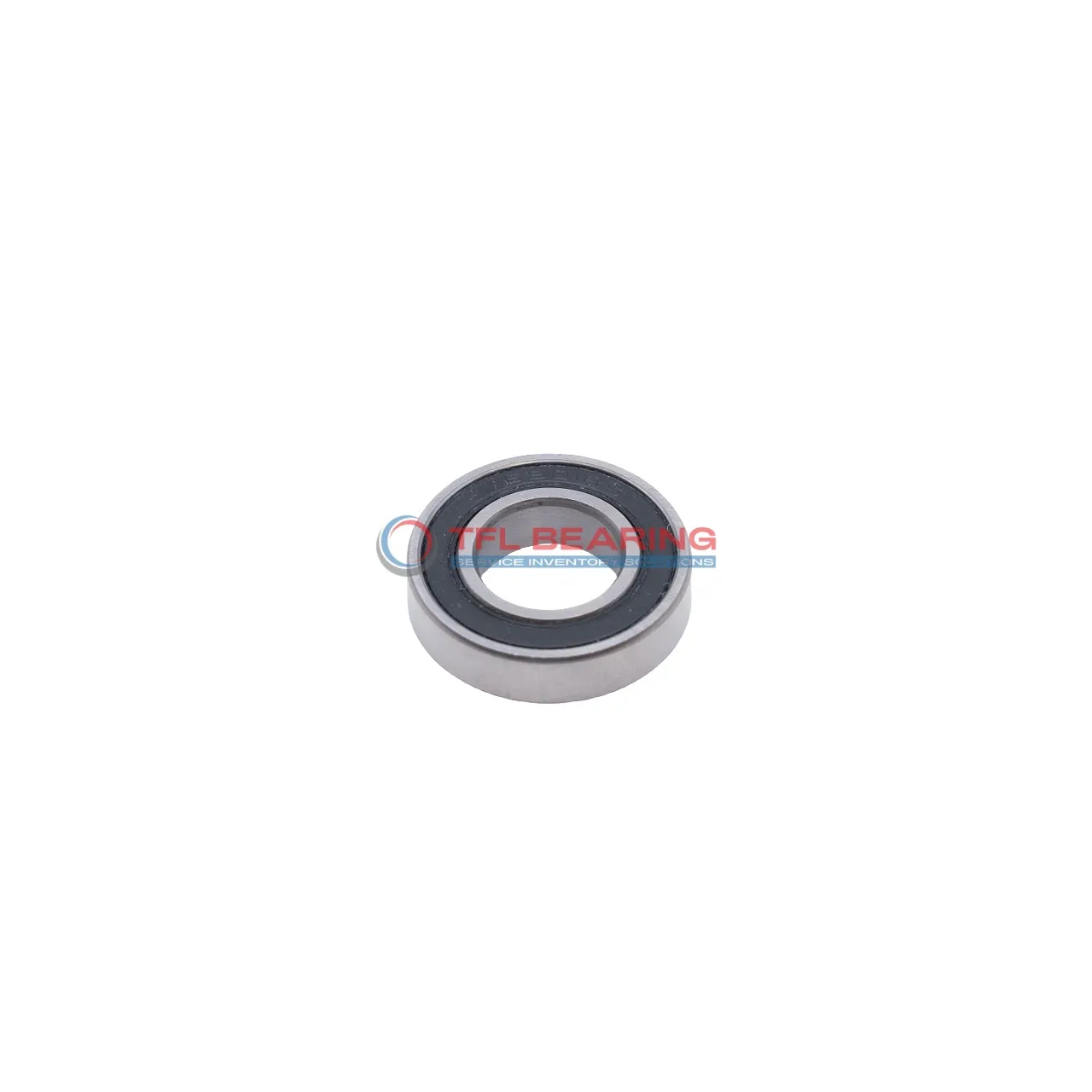

The 6201-2RS1/VK285 is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm. Made from durable chrome steel, it handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The bearing operates well in temperatures from -30°C to 120°C, suitable for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or small machinery where space is limited but performance is key.

Weighing just 37g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6201-2RS1/VK285
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g

Features

Why Choose 6201-2RS1/VK285 Bearing for Precision Tasks?

6201-2RS1/VK285 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1529 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 22,000 rpm, making it suitable for high-speed applications.

Its compact size (12 mm×32 mm×10 mm) allows for easy integration into various machinery.
The sealed design reduces maintenance needs, ensuring long-term reliability.

The temperature range of -30°C to 120°C makes it versatile for different working environments.
Its ABEC 1 tolerance class ensures reliable performance in precision tasks.

Application

Common Applications of 6201-2RS1/VK285 Bearing
In industrial settings, 6201-2RS1/VK285 Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6201-2RS1/VK285 Bearing Used?
You’ll often find 6201-2RS1/VK285 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its compact size makes it a great fit for tight spaces.

Ideal for Precision: 6201-2RS1/VK285 Bearing
For small machinery and appliances, 6201-2RS1/VK285 Bearing offers smooth operation with minimal maintenance. The sealed design is particularly useful in dusty or humid conditions.

Automotive vs Industrial: Applications of 6201-2RS1/VK285 Bearing
In cars, 6201-2RS1/VK285 Bearing works well in steering systems, while in factories, it’s often used in conveyor rollers. Its versatility makes it a popular choice across different sectors.

What Makes 6201-2RS1/VK285 Bearing a Preferred Choice?
With its balanced performance and affordability, 6201-2RS1/VK285 Bearing is a go-to for many light to medium-duty applications. The ABEC 1 tolerance ensures consistent performance without over-engineering.
