Single Row Deep Groove Ball Bearings 6201-2RS RL
Single Row Deep Groove Ball Bearings 6201-2RS RL

Single Row Deep Groove Ball Bearings 6201-2RS RL

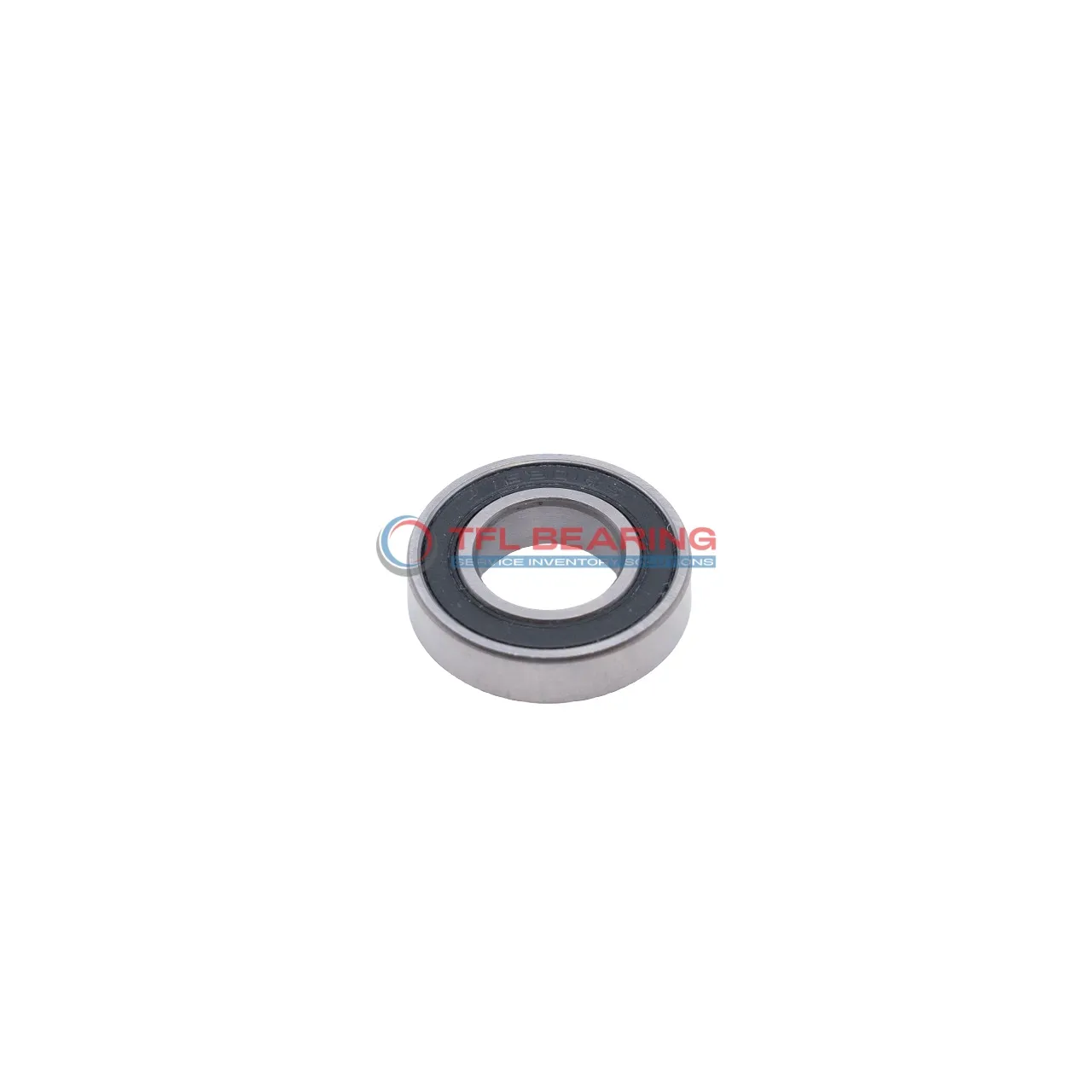

The 6201-2RS RL is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm, crafted from sturdy chrome steel. It handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance for long-term use. The chrome steel cage adds durability, ensuring reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for a range of environments. It’s interchangeable with SKF bearings, offering a practical replacement option.

Ideal for applications like electric motors or small machinery where space is limited but performance is key. Compliant with RoHS and REACH standards, it’s a safe and dependable choice. Weighing just 37g, it’s lightweight yet robust.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6201-2RS RL
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g

Features

Performance Features of 6201-2RS RL Bearing

6201-2RS RL Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1529 lbf, ensuring reliable performance in various applications.
The sealed design protects against dust and moisture, making it suitable for harsh environments.
With a maximum speed of 22,000 rpm, it delivers smooth and efficient operation.

Application

Common Applications of 6201-2RS RL Bearing
6201-2RS RL Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6201-2RS RL Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6201-2RS RL Bearing works smoothly in devices like washing machines and fans, thanks to its low-maintenance sealed design. The ABEC 1 tolerance ensures consistent performance over time.

Where Is 6201-2RS RL Bearing Used?
You’ll often find 6201-2RS RL Bearing in office equipment like printers and scanners, where quiet operation is essential. Its sealed construction prevents ink or paper dust from affecting performance.

In small machinery, 6201-2RS RL Bearing handles radial loads efficiently, making it suitable for tools like grinders and drills. The temperature range of -30° to 120°C allows for use in various climates.

Built for Versatility: 6201-2RS RL Bearing
6201-2RS RL Bearing is a go-to choice for hobbyist projects, such as DIY robotics or 3D printers, due to its compact size and reliability. The sealed design means less worry about contamination.

Fitness equipment like treadmills also benefits from 6201-2RS RL Bearing’s smooth rotation and load capacity. Its chrome steel balls ensure long-lasting performance even with frequent use.

Automotive vs Industrial: Applications of 6201-2RS RL Bearing
In cars, 6201-2RS RL Bearing often supports auxiliary systems like cooling fans, where its sealed design resists moisture and grime. The static radial load capacity of 686 lbf ensures stability.

For factory settings, 6201-2RS RL Bearing is handy in packaging machines, where consistent speed and low maintenance are key. The 22,000 rpm max speed suits high-speed operations.
