Single Row Deep Groove Ball Bearings 6200-2RSHN
Single Row Deep Groove Ball Bearings 6200-2RSHN

Single Row Deep Groove Ball Bearings 6200-2RSHN

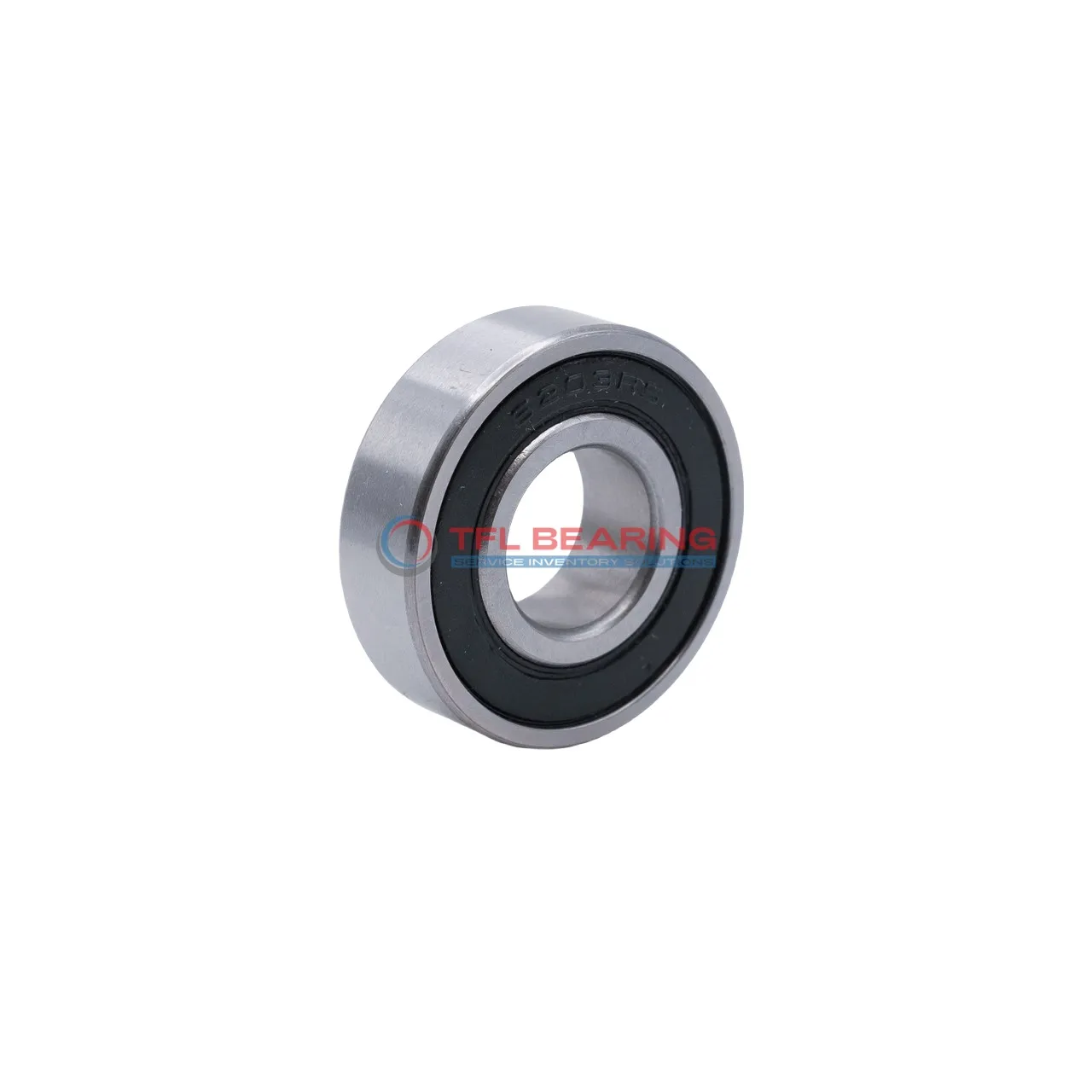

The 6200-2RSHN is a compact single-row deep groove ball bearing, measuring 10mm in bore and 30mm in outer diameter, with a slim 9mm width. Made from durable chrome steel, it’s built to handle radial loads up to 1147 lbf.

Its sealed design keeps out dust and moisture, making it low-maintenance. The bearing spins smoothly at speeds up to 24,000 RPM, ideal for high-speed applications.

The ABEC 1 tolerance ensures reliable performance, while the chrome steel cage adds strength. It operates in temperatures from -30°C to 120°C.

Perfect for electric motors, pumps, or small machinery where space is limited. Compliant with RoHS and REACH standards, it’s a dependable choice for various industrial uses. Weighing just 32g, it’s lightweight yet robust.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6200-2RSHN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 24000 rpm
  • Weight 32 g

Features

Why Choose 6200-2RSHN Bearing for Precision Tasks?

6200-2RSHN Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1147 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 24,000 rpm, making it suitable for high-speed applications.

Its compact size (10 mm×30 mm×9 mm) allows for easy integration into various machinery.
The sealed design also reduces maintenance needs, saving time and effort.

Designed for a temperature range of -30°C to 120°C, it performs reliably in diverse environments.
The ABEC 1 tolerance ensures consistent precision for accurate operations.

Application

Essential Roles of 6200-2RSHN Bearing
6200-2RSHN Bearing is widely used in industrial equipment like conveyor belts and small electric motors, thanks to its sealed design that keeps out dust and debris. Its chrome steel construction ensures durability even in demanding environments.

How Does 6200-2RSHN Bearing Improve Performance?
In automotive applications, 6200-2RSHN Bearing enhances the efficiency of components like alternators and water pumps. The sealed feature helps maintain smooth operation by preventing contamination from road grime.

Built for Heavy-Duty Use: 6200-2RSHN Bearing
For household appliances such as washing machines and fans, 6200-2RSHN Bearing offers reliable performance with minimal maintenance. Its compact size and radial load capacity make it a versatile choice.

Light-Duty vs Heavy-Duty: Best Uses for 6200-2RSHN Bearing
In light-duty applications like office printers, 6200-2RSHN Bearing ensures quiet and efficient operation. For heavier tasks in industrial fans, it provides consistent performance under radial loads.

Perfect Fit for Automation: 6200-2RSHN Bearing
6200-2RSHN Bearing is ideal for robotic arms and small automation systems, where precision and reliability are key. Its sealed design protects against contaminants, ensuring long service life.
