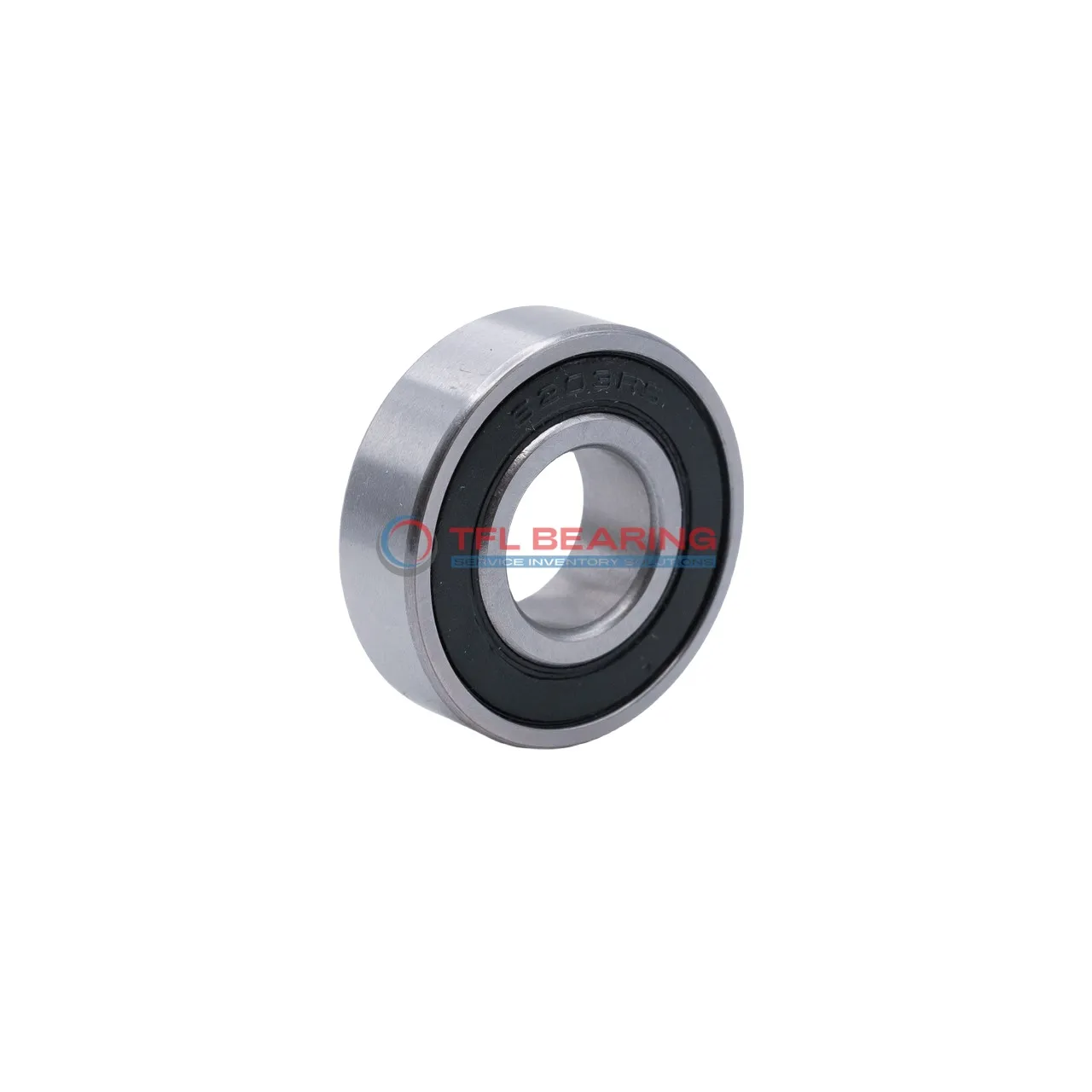

The 6200-2RSH/C3 is a compact single-row deep groove ball bearing, measuring 10mm in bore and 30mm in outer diameter, with a width of just 9mm. Made from durable chrome steel, it’s built to handle radial loads up to 1147 lbf.
Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight expansion under heat, ensuring smooth operation.
With a maximum speed of 24,000 RPM, it’s suitable for fast-moving applications like electric motors or small machinery. The bearing works in temperatures from -30°C to 120°C.
Weighing only 32g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.
"*" indicates required fields
Why Choose 6200-2RSH/C3 Bearing for Precision Tasks?
6200-2RSH/C3 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
The C3 radial clearance allows for thermal expansion, making it suitable for varied operating conditions.
With a maximum speed of 24,000 rpm, it delivers smooth and efficient operation.
This bearing is compatible with SKF models, offering easy replacement and cost-effective maintenance.
Its compact size (10 mm×30 mm×9 mm) makes it ideal for space-constrained applications.
Common Applications of 6200-2RSH/C3 Bearing
The 6200-2RSH/C3 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. Its C3 clearance also accommodates thermal expansion in high-speed applications.
In automotive systems, 6200-2RSH/C3 Bearing fits well in alternators and water pumps, providing reliable radial load support. The chrome steel construction ensures long-lasting performance even under constant vibration.
For household appliances like washing machines, 6200-2RSH/C3 Bearing offers quiet and smooth operation. The sealed design prevents grease leakage, making it low-maintenance for everyday use.
Where Is 6200-2RSH/C3 Bearing Used?
You’ll often find 6200-2RSH/C3 Bearing in small electric fans, where its compact size and sealed construction are ideal. The high-speed capability ensures efficient airflow without overheating.
In robotics, 6200-2RSH/C3 Bearing supports joint movements, thanks to its balanced radial load capacity. The chrome steel cage adds durability for repetitive motion tasks.
Built for Versatility: 6200-2RSH/C3 Bearing
This bearing works well in conveyor systems, handling moderate loads with ease. The sealed design reduces dust ingress, extending service life in dusty environments.
For power tools like drills, 6200-2RSH/C3 Bearing provides smooth rotation under variable speeds. Its temperature range suits both indoor and outdoor use.
Light-Duty vs Heavy-Duty: Best Uses for 6200-2RSH/C3 Bearing
In light-duty applications like office printers, 6200-2RSH/C3 Bearing ensures precise paper feed. The sealed design keeps out paper dust, reducing wear.
For heavier tasks like agricultural equipment, this bearing’s C3 clearance handles shaft misalignment. The robust construction withstands rough operating conditions.
