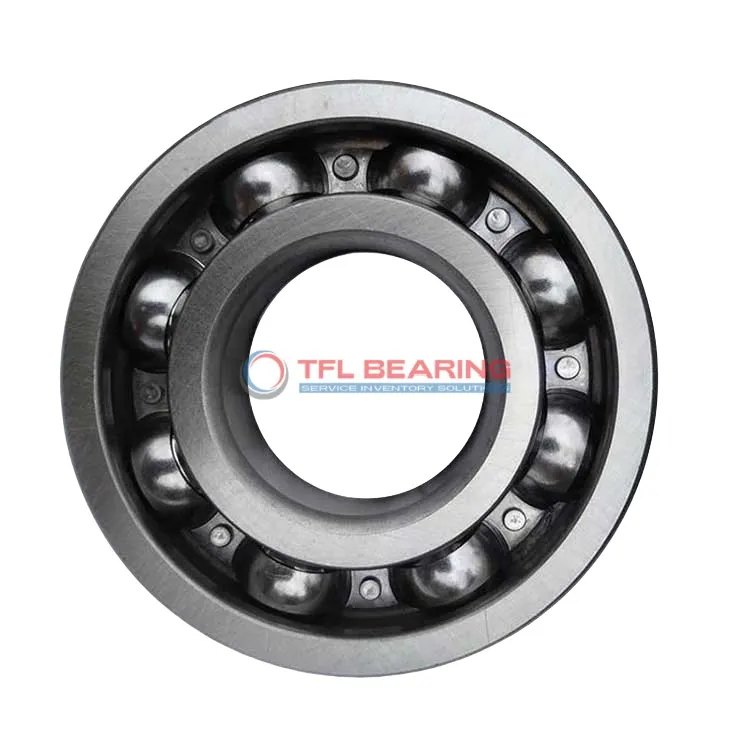

Single Row Deep Groove Ball Bearings 61906
Single Row Deep Groove Ball Bearings 61906

Single Row Deep Groove Ball Bearings 61906

The 61906 is a compact single-row deep groove ball bearing, measuring 30mm by 47mm by 9mm, crafted from sturdy chrome steel. It handles radial loads up to 1637 lbf and spins smoothly at speeds up to 19,000 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.049kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 61906
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1637 lbf
  • Static Radial Load 1023 lbf
  • Max Speed 19000 rpm
  • Weight 0.049 kg
  • price($) 12.051

Features

Performance Features of 61906 Bearing

61906 Bearing is designed with chrome steel rings and balls, offering strong radial load capacity up to 1637 lbf.
Its single-row deep groove construction ensures smooth operation and efficient performance.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 19,000 rpm, it is suitable for high-speed applications.

Application

Industrial Uses of 61906 Bearing
The 61906 Bearing is commonly used in industrial machinery like pumps and electric motors, where its single-row design handles radial loads efficiently. Its open seal type allows for easy lubrication, making maintenance straightforward in demanding environments.

Where Is 61906 Bearing Used?
You’ll often find the 61906 Bearing in automotive applications such as alternators and small gearboxes. Its compact size and high-speed capability make it a reliable choice for these components.

Built for Versatility: 61906 Bearing
In automation systems, the 61906 Bearing supports robotic arms and conveyor belts with smooth operation. The chrome steel construction ensures durability even in continuous use scenarios.

Automotive vs Industrial: Applications of 61906 Bearing
While the 61906 Bearing excels in car parts like fans and clutches, it’s equally effective in industrial fans and compressors. Its balanced performance suits both light and medium-duty applications.

Perfect Fit for Precision: 61906 Bearing
Medical devices like dental drills benefit from the 61906 Bearing’s precise radial load handling. The stainless steel cage adds corrosion resistance, ideal for sterile environments.
