Single Row Deep Groove Ball Bearings 61902-2RS1/W64F
Single Row Deep Groove Ball Bearings 61902-2RS1/W64F

Single Row Deep Groove Ball Bearings 61902-2RS1/W64F

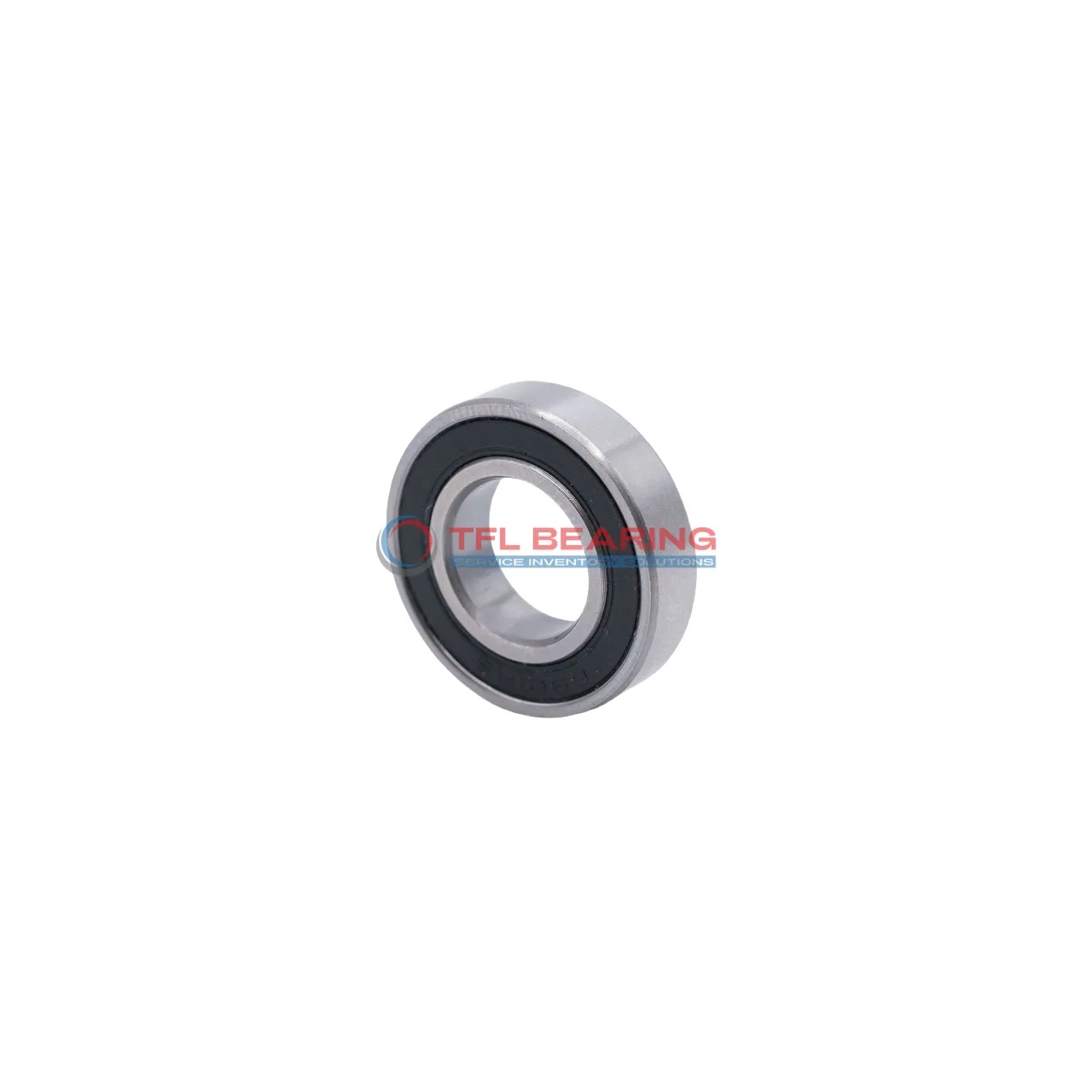

The 61902-2RS1/W64F is a compact single-row deep groove ball bearing, measuring 15mm by 28mm by 7mm, crafted from durable chrome steel. It handles radial loads up to 980 lbf and spins smoothly at speeds up to 34,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the solid oil ensures long-lasting performance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small electric motors or appliances where space is limited.

Weighing just 0.016kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 61902-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 980 lbf
  • Static Radial Load 504 lbf
  • Max Speed 34000 rpm
  • Weight 0.016 kg
  • price($) 13.518

Features

How Does 61902-2RS1/W64F Bearing Reduce Friction?

61902-2RS1/W64F Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction enhances durability, making it suitable for radial load applications.

Its dynamic radial load capacity of 980 lbf allows for reliable performance in various conditions.
With a maximum speed of 34,000 rpm, it offers both efficiency and longevity.

The ABEC 1 tolerance class ensures consistent precision, while the temperature range of -30°C to 120°C provides versatility.
This bearing is ideal for applications requiring low maintenance and high reliability.

Application

Common Applications of 61902-2RS1/W64F Bearing
In industrial settings, 61902-2RS1/W64F Bearing is widely used in small motors and pumps due to its sealed design, which protects against dust and debris. The solid oil lubrication ensures smooth operation even in demanding environments.

Where Is 61902-2RS1/W64F Bearing Used?
You’ll often find 61902-2RS1/W64F Bearing in automotive applications like electric window mechanisms and cooling fans. Its compact size and radial load capacity make it a reliable choice for these components.

Built for Heavy-Duty Use: 61902-2RS1/W64F Bearing
This bearing excels in household appliances such as washing machines and blenders, where its sealed construction prevents contamination. The chrome steel rings and balls provide long-lasting performance.

Light-Duty vs Heavy-Duty: Best Uses for 61902-2RS1/W64F Bearing
For light-duty tasks like office printers, 61902-2RS1/W64F Bearing offers quiet and efficient operation. In more demanding scenarios, such as conveyor systems, it handles radial loads with ease.

Perfect Fit for Automation: 61902-2RS1/W64F Bearing
In robotic arms and small automation equipment, 61902-2RS1/W64F Bearing’s precision and durability are key. The ABEC 1 tolerance ensures consistent performance in repetitive motions.
