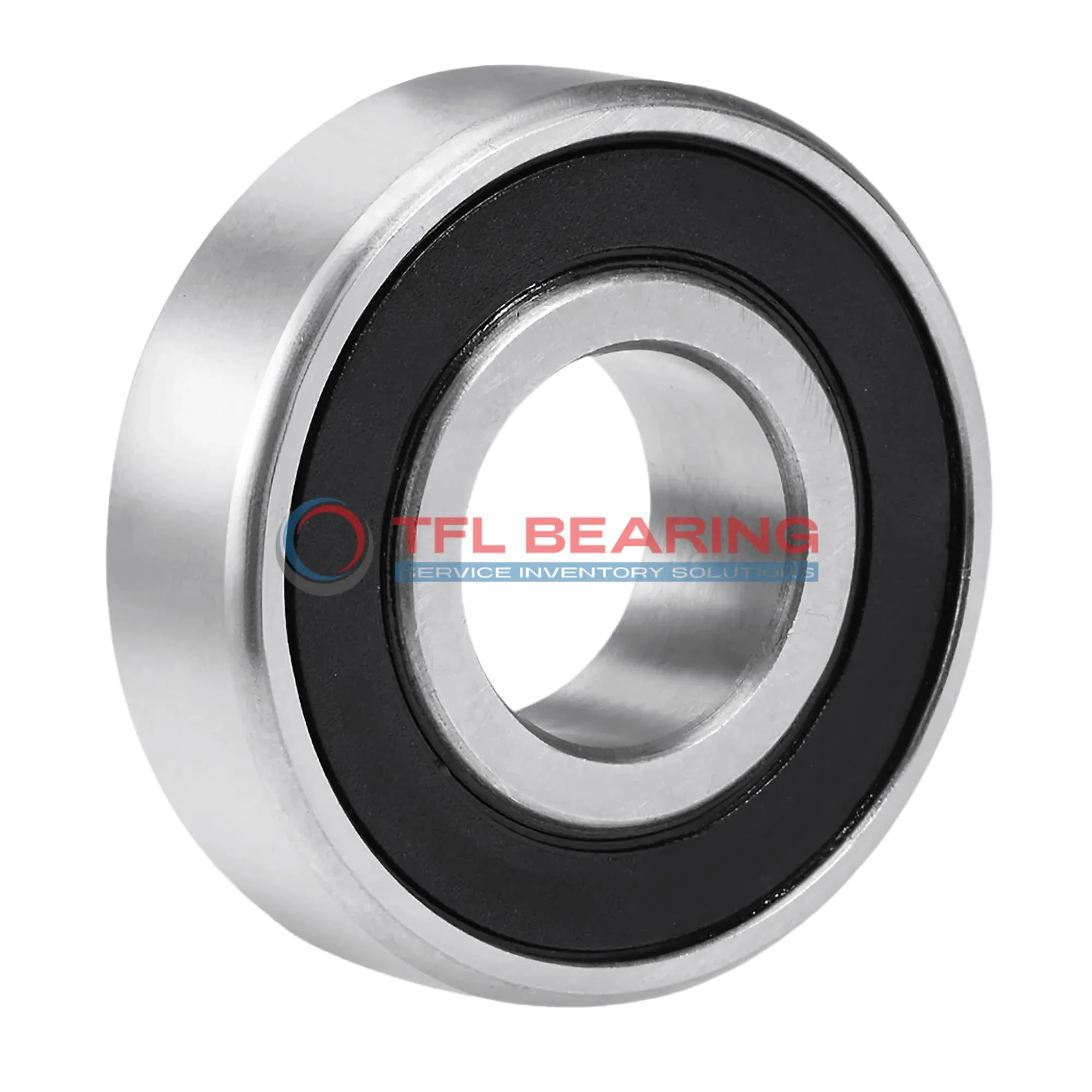

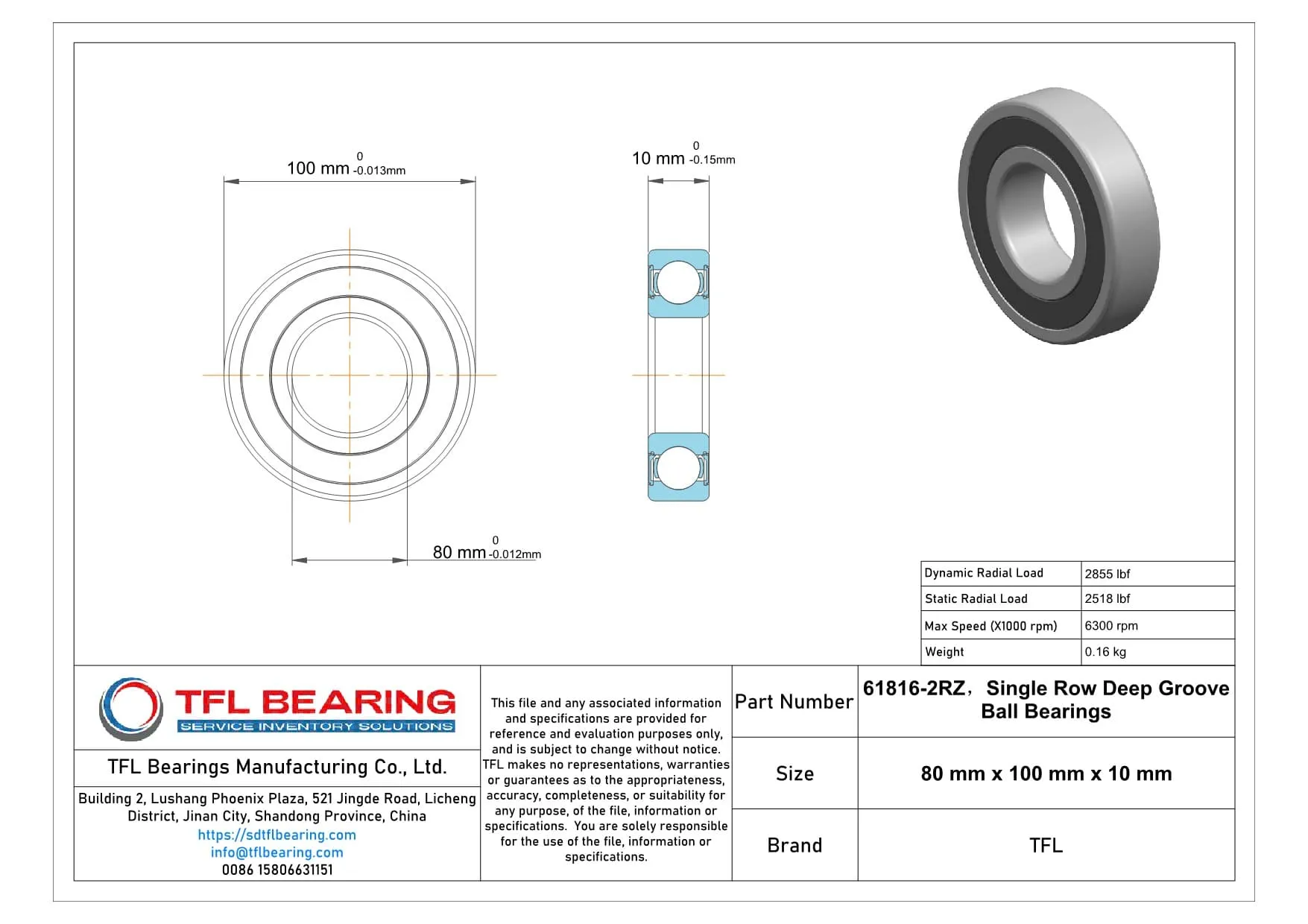

The 61816-2RZ is a single-row deep groove ball bearing with an 80mm bore and 100mm outer diameter, built to handle radial loads. Its compact 10mm width makes it suitable for tight spaces, while the sealed design keeps grease in and dirt out.
Made from chrome steel with a stainless steel cage, it offers reliable performance under loads up to 2855 lbf. It spins smoothly at speeds up to 6300 RPM and works in temperatures from -30°C to 120°C.
The sealed construction reduces maintenance needs, ideal for dusty or damp environments. This model is interchangeable with SKF bearings, providing a cost-effective alternative.
Perfect for electric motors or small machinery where space is limited. Weighing just 0.16kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
How Does 61816-2RZ Bearing Reduce Friction?
61816-2RZ Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction and grease lubrication minimise friction, ensuring quiet operation.
Chrome steel rings and balls enhance durability, while the stainless steel cage maintains alignment.
With a dynamic radial load capacity of 2855 lbf, it handles demanding applications reliably.
Its temperature range of -30° to 120°C allows versatile use in various environments.
The P6 tolerance class ensures precision, making it suitable for high-performance machinery.
Essential Roles of 61816-2RZ Bearing
In industrial machinery, 61816-2RZ Bearing is commonly used in electric motors and pumps, where its sealed design protects against dust and debris. The grease lubrication ensures smooth operation even in demanding environments.
For automotive applications, 61816-2RZ Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its P6 tolerance class offers the precision needed for consistent performance.
In home appliances like washing machines, 61816-2RZ Bearing’s compact size and durability make it a practical choice. The chrome steel construction ensures long-lasting use under everyday conditions.
