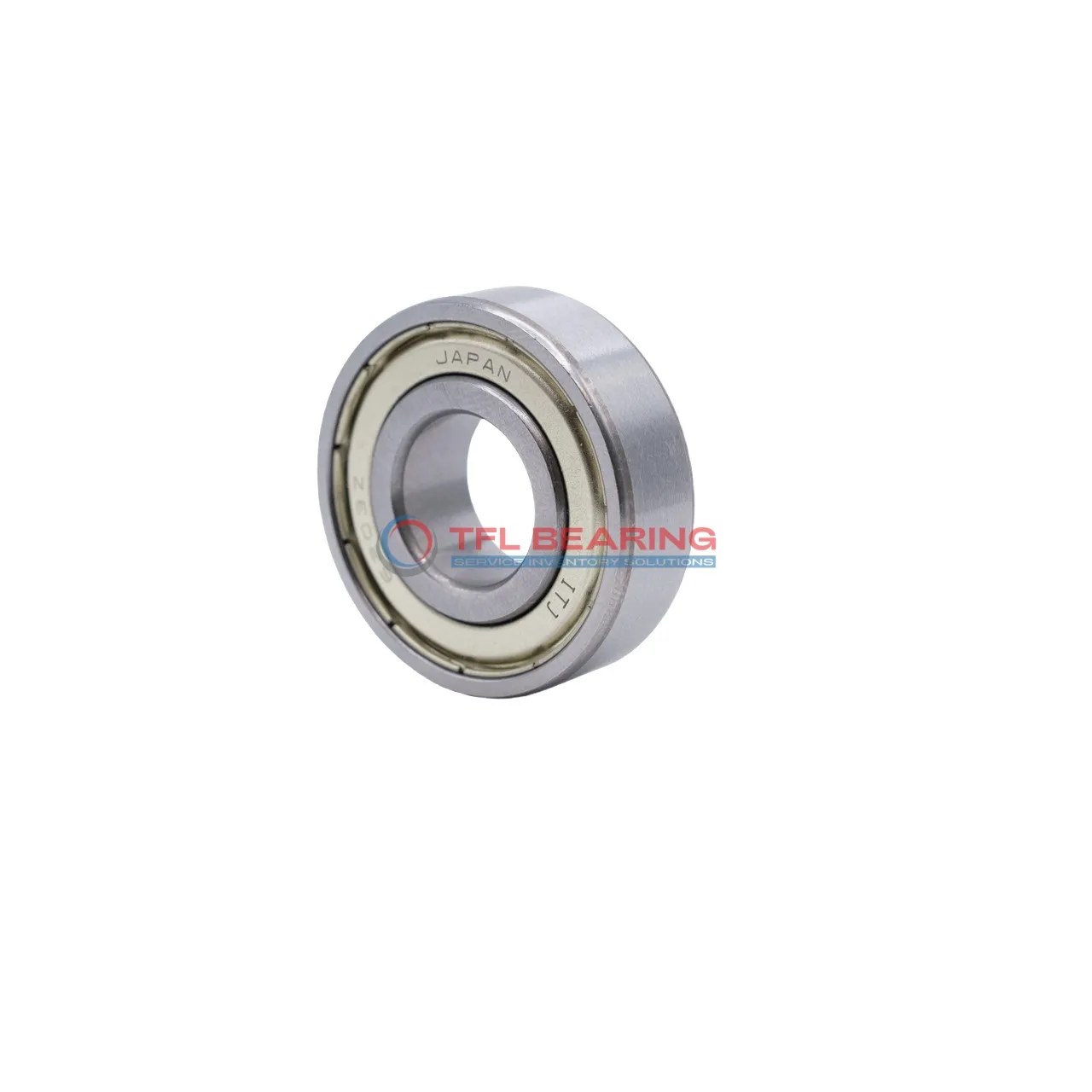

Single Row Deep Groove Ball Bearings 61802-2Z
Single Row Deep Groove Ball Bearings 61802-2Z

Single Row Deep Groove Ball Bearings 61802-2Z

The 61802-2Z is a compact single-row deep groove ball bearing, measuring 15mm by 24mm by 5mm. Made from chrome steel, it’s built to handle radial loads up to 427 lbf and spins smoothly at speeds up to 30,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, ensuring reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for small motors or precision instruments. It’s interchangeable with SKF models, offering a cost-effective replacement option.

Weighing just 7.3 grams, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for many applications.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 61802-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 427 lbf
  • Static Radial Load 247 lbf
  • Max Speed 30000 rpm
  • Weight 0.0073 kg
  • price($) 11.61

Features

Why Choose 61802-2Z Bearing for Precision Tasks?

61802-2Z Bearing features a single-row deep groove design, ideal for handling radial loads with precision.
Its shielded construction keeps contaminants out while retaining lubrication for smooth operation.

The chrome steel rings and balls ensure durability, even at high speeds up to 30,000 rpm.
With a dynamic radial load capacity of 427 lbf, it delivers reliable performance in compact applications.

61802-2Z Bearing operates efficiently within a temperature range of -30° to 120°C.
Its stainless steel cage maintains ball alignment, reducing friction and extending service life.

Designed for easy installation, 61802-2Z Bearing requires minimal maintenance.
The P6 tolerance class ensures consistent performance in precision machinery.

Application

Common Applications of 61802-2Z Bearing
61802-2Z Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its shielded design helps keep contaminants out while maintaining smooth operation.

In automation systems, 61802-2Z Bearing fits neatly into compact robotic joints and linear guides. The P6 tolerance ensures reliable precision for repetitive movements.

For medical devices like dental handpieces, 61802-2Z Bearing offers quiet performance thanks to its chrome steel construction. The grease lubrication also extends service life in high-speed applications.

Where Is 61802-2Z Bearing Used?
You’ll often spot 61802-2Z Bearing in office equipment like printers and scanners, where its small size and radial load capacity are ideal. The shielded seals prevent dust from disrupting sensitive mechanisms.

In automotive accessories, 61802-2Z Bearing works well in dashboard instruments and small actuators. Its temperature range handles both summer heat and winter cold without issue.

Built for Versatility: 61802-2Z Bearing
61802-2Z Bearing shines in consumer electronics, particularly cooling fans for computers and gaming consoles. The stainless steel cage resists corrosion from occasional humidity exposure.

Industrial pumps benefit from 61802-2Z Bearing’s balanced radial load handling. At 30,000 rpm max speed, it keeps fluids moving efficiently in compact spaces.

Light-Duty vs Heavy-Duty: Best Uses for 61802-2Z Bearing
For light-duty tasks, 61802-2Z Bearing excels in camera lenses and drone gimbals due to its precise rotation. The 5mm width fits neatly into slim designs.

In more demanding scenarios, 61802-2Z Bearing supports conveyor belt rollers in food packaging lines. The grease lubrication stands up to continuous operation without frequent maintenance.
