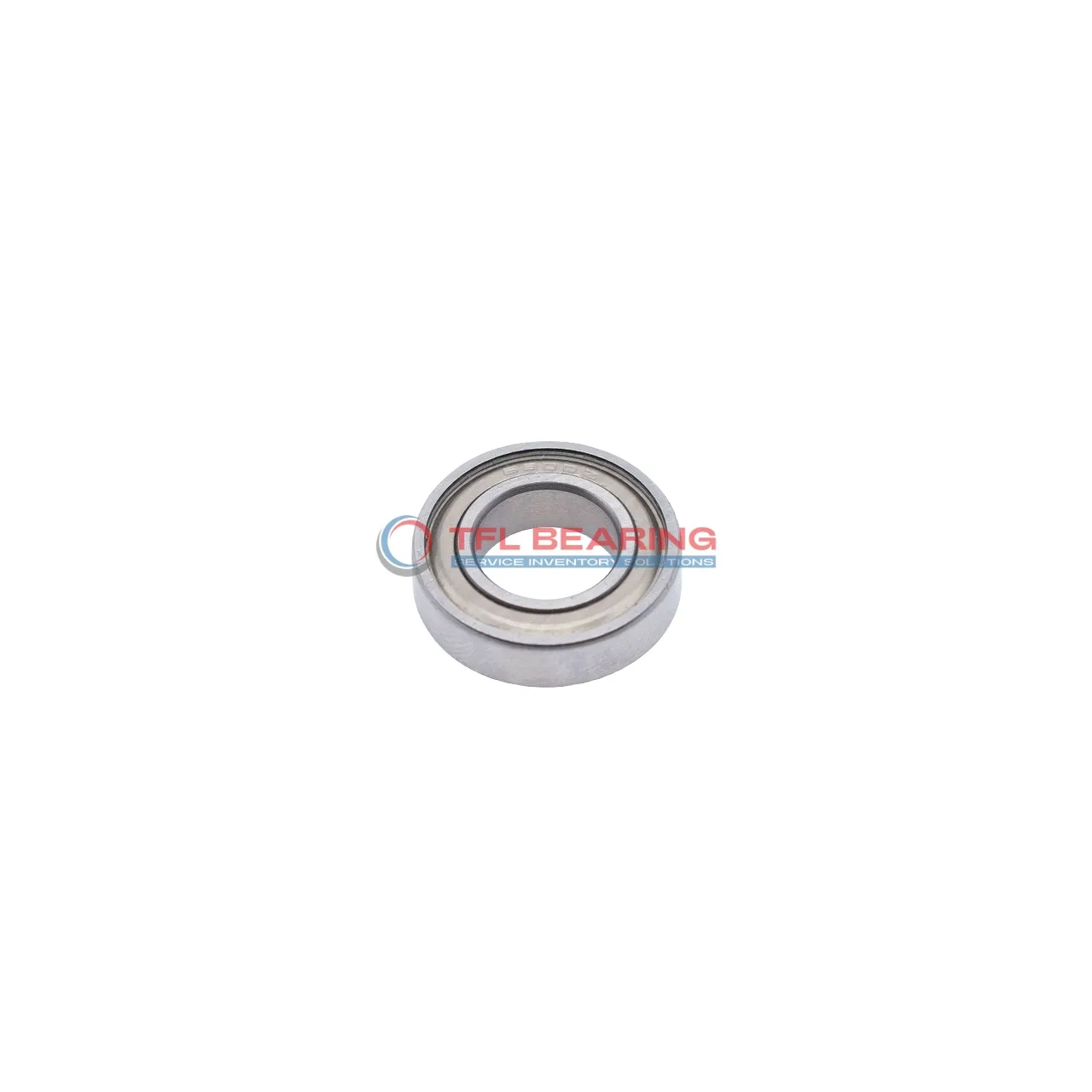

The 608-2Z/CNPLHT23 is a compact single-row deep groove ball bearing, measuring 8mm in bore and 22mm in outer diameter, with a width of just 7mm. Made from durable chrome steel, it handles radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.
Its shielded design keeps dust out while maintaining smooth operation, and the chrome steel cage adds to its longevity. The bearing performs well in temperatures ranging from -30°C to 120°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s ideal for small machinery, skateboards, or electric motors where reliable radial load support is needed.
Weighing only 11.8g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s safe for various applications.
"*" indicates required fields
How Does 608-2Z/CNPLHT23 Bearing Reduce Friction?
608-2Z/CNPLHT23 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while reducing friction during operation.
The shielded design protects against contaminants, maintaining performance in various environments.
With a dynamic radial load capacity of 630 lbf, it offers reliable support for light to moderate loads.
This bearing operates efficiently at speeds up to 34,000 rpm, making it suitable for high-speed applications.
Its compact size (8mm×22mm×7mm) allows for easy integration into various mechanical systems.
The ABEC 1 tolerance and CN clearance provide consistent performance without requiring frequent adjustments.
Its temperature range of -30° to 120°C ensures functionality in diverse operating conditions.
Common Applications of 608-2Z/CNPLHT23 Bearing
608-2Z/CNPLHT23 Bearing is widely used in small electric motors, such as those found in household appliances or power tools. Its shielded design helps keep dust out while maintaining smooth rotation.
In skateboards and inline skates, 608-2Z/CNPLHT23 Bearing provides reliable performance for wheels, thanks to its balanced radial load capacity. The compact size makes it ideal for these lightweight applications.
For office equipment like printers and scanners, 608-2Z/CNPLHT23 Bearing ensures quiet operation with minimal maintenance. The chrome steel construction offers good durability for continuous use.
The bearing also finds use in hobbyist projects, such as DIY robotics or model-making, where its affordability and availability are appreciated. Its metric sizing works well with most standard components.
