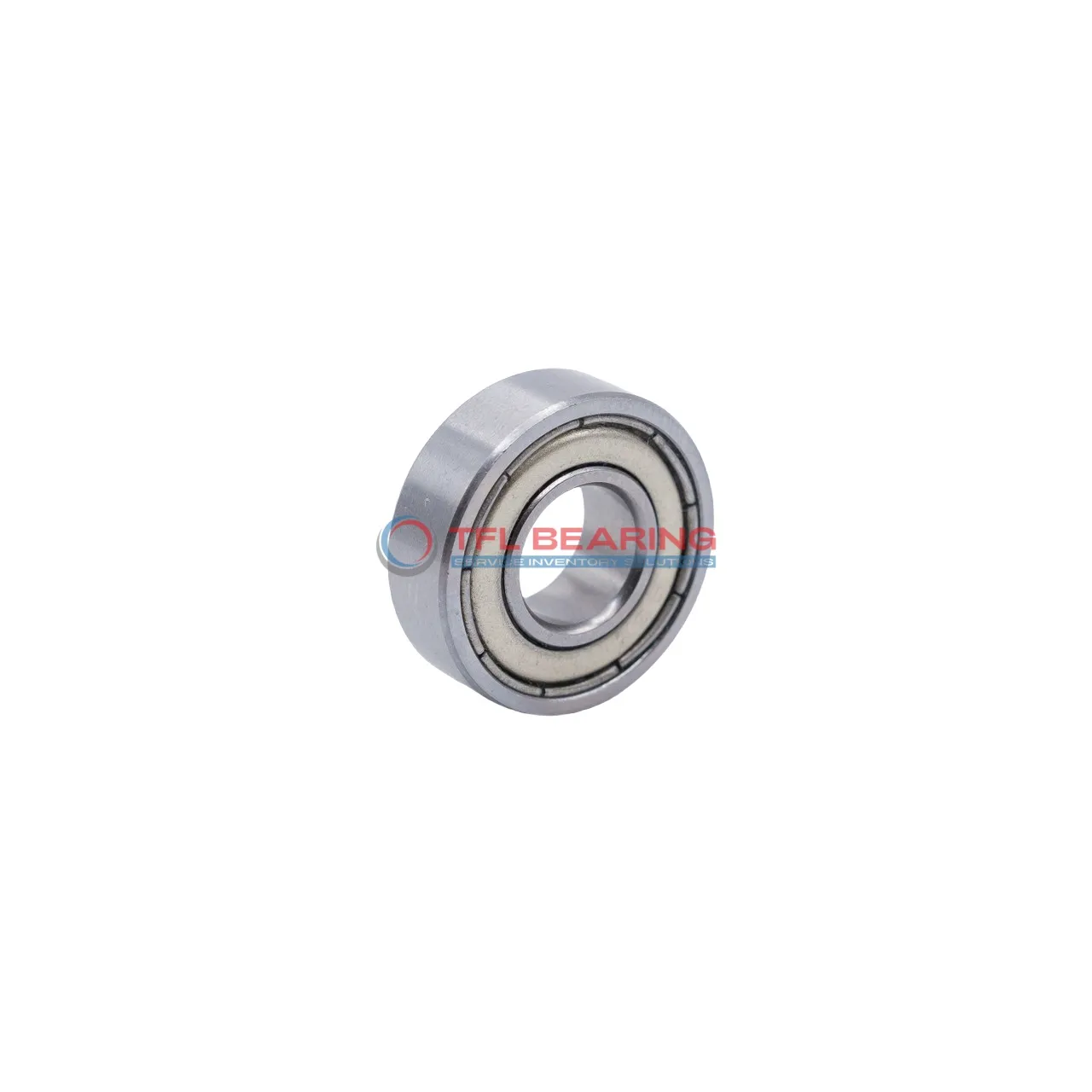

The 607-Z is a compact single-row deep groove ball bearing, measuring 7mm in bore and 19mm in outer diameter, with a width of just 6mm. Made from chrome steel, it offers reliable performance for radial loads up to 526 lbf.
Its shielded design keeps grease in and dirt out, while the stainless steel cage ensures smooth operation. The bearing can handle speeds up to 53,000 RPM and works in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, appliances, or machinery where space is limited.
Weighing only 0.0079kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 607-Z Bearing
607-Z Bearing is crafted with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 526 lbf ensures steady performance in various applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 53,000 rpm, it delivers efficient and smooth operation.
How Does 607-Z Bearing Reduce Friction?
607-Z Bearing features a shielded design that helps keep contaminants out while retaining lubrication.
The grease lubrication ensures smooth movement, minimising friction during operation.
Its chrome steel construction provides durability, even under continuous use.
The P6 tolerance class guarantees precision, enhancing overall performance.
Built for Reliability: 607-Z Bearing
607-Z Bearing operates efficiently within a temperature range of -30° to 120°C.
Its shielded seal protects against dust and debris, extending service life.
The stainless steel cage enhances stability, reducing maintenance needs.
With a static radial load of 214 lbf, it handles moderate loads with ease.
Steel vs Ceramic Bearings: Strengths of 607-Z Bearing
607-Z Bearing uses chrome steel for both rings and balls, ensuring strength and durability.
This material choice provides excellent resistance to wear and tear.
The shielded design offers added protection in dusty or humid environments.
Its compact size (7 mm×19 mm×6 mm) makes it suitable for space-constrained applications.
Why Choose 607-Z Bearing for Precision Tasks?
607-Z Bearing’s P6 tolerance class ensures high precision for demanding tasks.
The shielded seal maintains lubrication while preventing contamination.
Its lightweight design (0.0079 kg) is ideal for applications requiring minimal weight.
With a wide temperature range, it performs reliably in varying conditions.
Common Applications of 607-Z Bearing
In small electric motors, 607-Z Bearing is a reliable choice due to its compact size and shielded design, which keeps dust out while maintaining smooth rotation.
Its chrome steel construction ensures durability in devices like cooling fans or power tools, where consistent radial load handling is needed.
Industrial Uses of 607-Z Bearing
This bearing fits well in conveyor belt rollers, offering low friction and long service life even with continuous operation.
The P6 tolerance class makes it suitable for precision equipment like small gearboxes or measuring instruments.
Where Is 607-Z Bearing Used?
You’ll often find 607-Z Bearing in household appliances like blenders or printers, where its grease lubrication reduces noise and wear.
Its high-speed capability (up to 53,000 rpm) also makes it useful in dental handpieces or small robotics.
Optimized for Performance: 607-Z Bearing
With a temperature range of -30° to 120°C, 607-Z Bearing works well in both indoor and outdoor equipment.
The stainless steel cage adds corrosion resistance, ideal for food processing machinery or marine applications.
Light-Duty vs Heavy-Duty: Best Uses for 607-Z Bearing
For light loads, 607-Z Bearing excels in office equipment like scanners, where quiet operation matters.
In heavier scenarios, it supports small pumps or agricultural sprayers, balancing load capacity and compact design.
