Single Row Deep Groove Ball Bearings 6014-Z
Single Row Deep Groove Ball Bearings 6014-Z

Single Row Deep Groove Ball Bearings 6014-Z

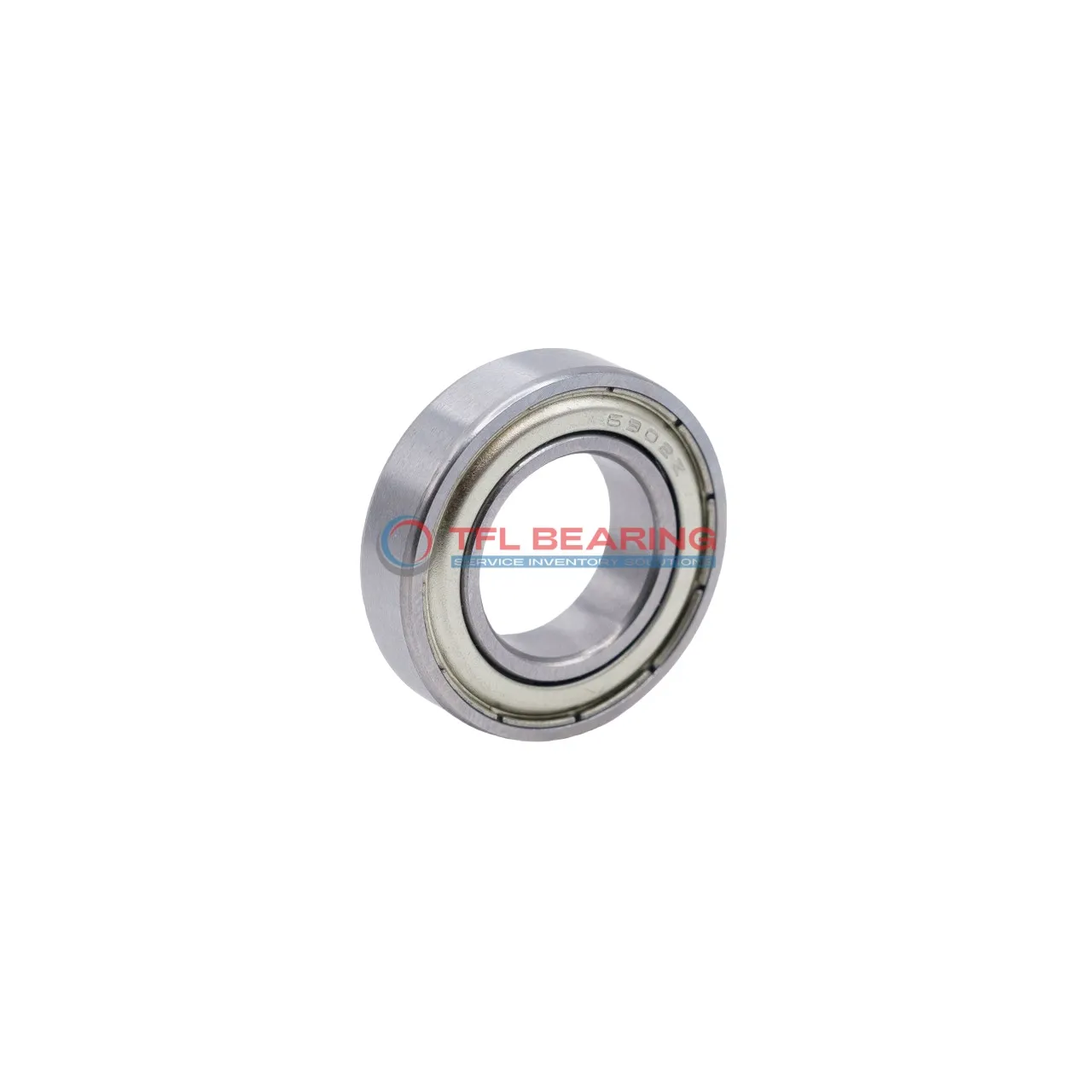

The 6014-Z is a single-row deep groove ball bearing with a 70mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8925 lbf and operates smoothly at speeds up to 8000 RPM.

Its shielded design keeps grease in and contaminants out, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or pumps where radial loads are common.

Weighing 0.62kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6014-Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 8925 lbf
  • Static Radial Load 6969 lbf
  • Max Speed 8000 rpm
  • Weight 0.62 kg
  • price($) 16.668

Features

Performance Features of 6014-Z Bearing

6014-Z Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 8925 lbf.
Its shielded design helps keep contaminants out while retaining lubrication for smoother operation.

The stainless steel cage ensures proper ball alignment, reducing friction and wear over time.
With a maximum speed of 8,000 rpm, it delivers reliable performance in various applications.

6014-Z Bearing operates efficiently in temperatures from -30° to 120°C, making it versatile for different environments.
The P6 tolerance class provides precision fit and consistent performance under radial loads.

Grease lubrication ensures smooth rotation while minimising maintenance requirements.
Its compact 70 mm×110 mm×20 mm size makes it suitable for space-constrained installations.

Application

Industrial Uses of 6014-Z Bearing
The 6014-Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. Its chrome steel construction ensures reliable performance even in demanding environments.

In automotive applications, 6014-Z Bearing fits well in wheel hubs and alternators, providing smooth rotation under radial loads. The P6 tolerance class makes it suitable for precision components in vehicles.

For home appliances, 6014-Z Bearing works efficiently in washing machines and fans, thanks to its grease lubrication and low maintenance needs. The stainless steel cage adds durability for long-lasting use.

Automation systems benefit from 6014-Z Bearing in conveyor belts and robotic arms, where consistent performance is key. Its metric sizing ensures compatibility with a variety of equipment.

Medical devices like centrifuges often use 6014-Z Bearing for its quiet operation and reliable radial load handling. The temperature range allows it to perform well in both lab and clinical settings.
