Single Row Deep Groove Ball Bearings 6014/HC5C3
Single Row Deep Groove Ball Bearings 6014/HC5C3

Single Row Deep Groove Ball Bearings 6014/HC5C3

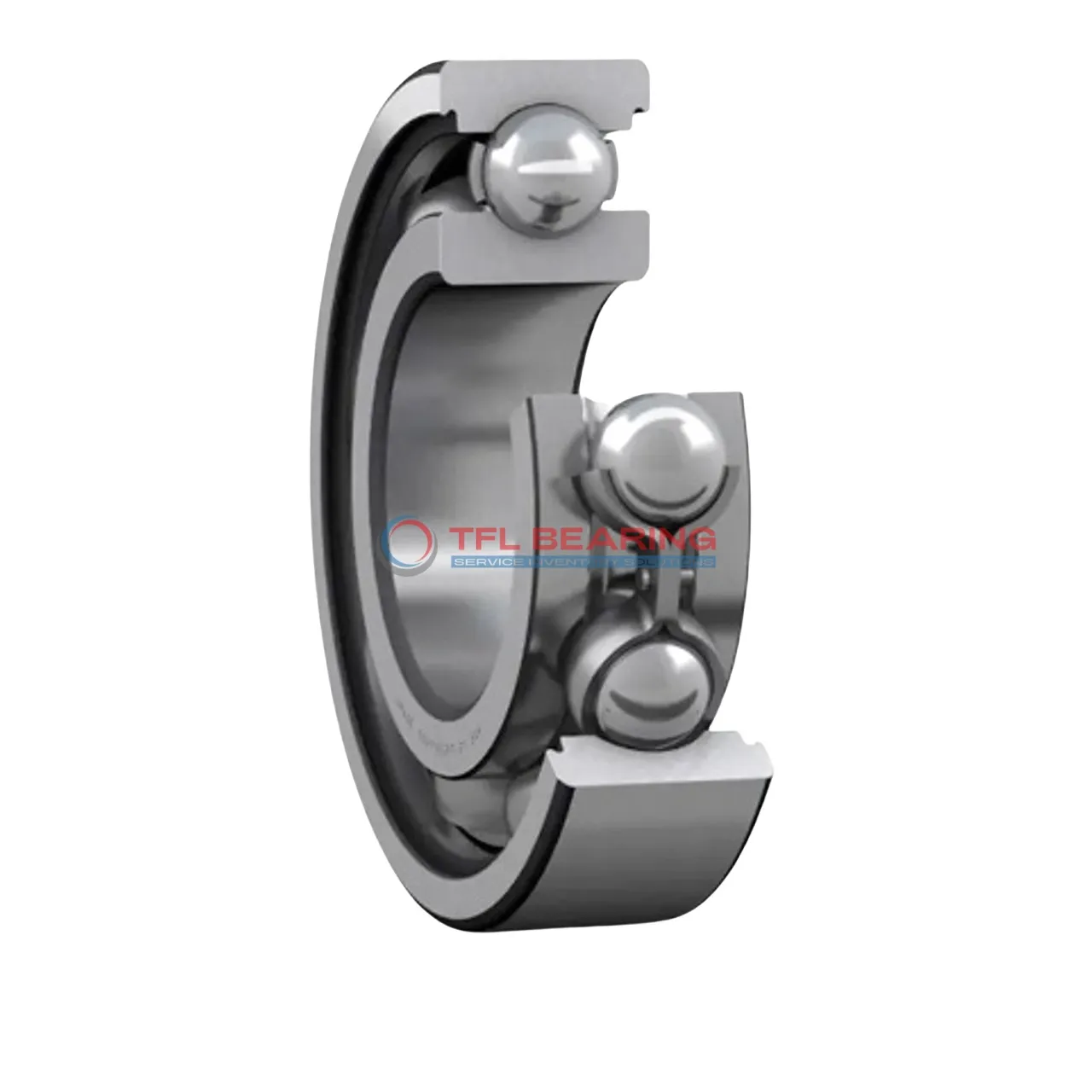

The 6014/HC5C3 is a single-row deep groove ball bearing with a 70mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8565 lbf and operates smoothly at speeds up to 6000 RPM.

Its open design allows for easy lubrication, while the silicon nitride balls reduce friction for quieter performance. The chrome steel cage adds durability, making it suitable for long-term use.

This bearing fits well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 598g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6014/HC5C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Silicon Nitride(Si3N4)
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8565 lbf
  • Static Radial Load 6947 lbf
  • Max Speed 6000 rpm
  • Weight 598 g
  • price($) 87.786

Features

Performance Features of 6014/HC5C3 Bearing

6014/HC5C3 Bearing is built with chrome steel rings and silicon nitride balls, offering excellent radial load capacity.
Its dynamic radial load rating of 8565 lbf ensures reliable performance in various applications.

The C3 radial clearance provides optimal operation under varying thermal conditions.
With a maximum speed of 6,000 rpm, it balances efficiency and durability.

6014/HC5C3 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
The open design simplifies maintenance while the chrome steel cage enhances stability.

Application

Industrial Uses of 6014/HC5C3 Bearing
6014/HC5C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, making it suitable for high-speed applications.

In automotive systems, 6014/HC5C3 Bearing supports components such as alternators and transmission systems, thanks to its durable chrome steel construction. The C3 clearance provides flexibility in temperature variations, ideal for vehicle environments.

For automation equipment, 6014/HC5C3 Bearing’s silicon nitride balls reduce friction in robotic arms and conveyor systems. Its metric sizing ensures compatibility with a wide range of machinery, simplifying maintenance and replacements.

Where Is 6014/HC5C3 Bearing Used?
You’ll often find 6014/HC5C3 Bearing in household appliances like washing machines, where its reliability keeps things running quietly. The chrome steel cage adds durability, even with frequent use.

In medical devices, 6014/HC5C3 Bearing’s precision helps maintain accuracy in lab equipment and diagnostic tools. The temperature range ensures performance stays consistent, whether in cold storage or heated environments.
