Single Row Deep Groove Ball Bearings 6010-2RS1/C4GJN
Single Row Deep Groove Ball Bearings 6010-2RS1/C4GJN

Single Row Deep Groove Ball Bearings 6010-2RS1/C4GJN

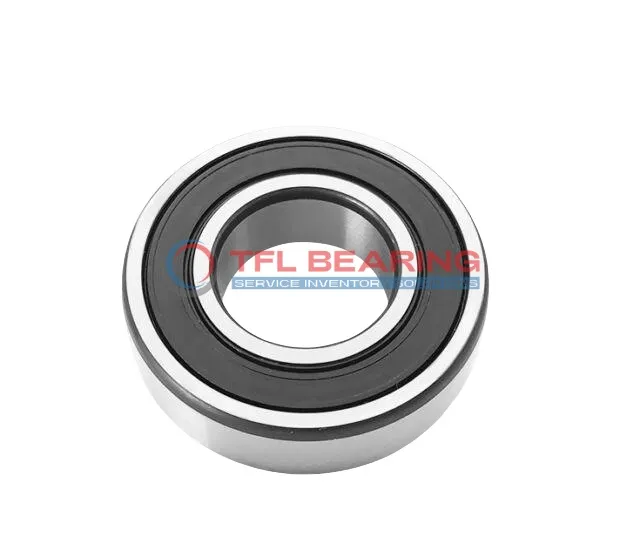

The 6010-2RS1/C4GJN is a single-row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4901 lbf and operates smoothly at speeds up to 8400 RPM.

Its sealed design keeps dirt out and lubrication in, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing just 261g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6010-2RS1/C4GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4901 lbf
  • Static Radial Load 3732 lbf
  • Max Speed 8400 rpm
  • Weight 261 g

Features

How Does 6010-2RS1/C4GJN Bearing Reduce Friction?

6010-2RS1/C4GJN Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures durability and smooth operation under radial loads.

The C4 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 8,400 rpm, it offers reliable efficiency for various applications.

The single-row deep groove design enhances load distribution, minimising wear over time.
Its static radial load capacity of 3732 lbf ensures stability in demanding conditions.

Application

Industrial Uses of 6010-2RS1/C4GJN Bearing
This bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The C4 radial clearance ensures smooth operation even with thermal expansion in demanding environments.

Where Is 6010-2RS1/C4GJN Bearing Used?
You’ll often find it in household appliances like washing machines, where its radial load capacity handles the spinning drum effectively. The chrome steel construction also makes it durable for long-term use.

Built for Heavy-Duty Use: 6010-2RS1/C4GJN Bearing
It’s a reliable choice for industrial pumps, handling both radial loads and moderate speeds with ease. The sealed design reduces maintenance needs, making it popular in harsh conditions.

Automotive vs Industrial: Applications of 6010-2RS1/C4GJN Bearing
In cars, it works well in alternators and water pumps, while factories use it for machinery requiring consistent performance. The metric sizing makes it versatile across different equipment types.
